| NO. | Technical Specification | Technical Parameters |
|---|---|---|
| 1 | Maximum molding area | 600mm×710mm |
| 2 | Minimum molding area | 340mm×410mm |
| 3 | Widest sheet | 780mm |
| 4 | Narrowest sheet | 340mm |
| 5 | Molding thickness | 0.2-2.0mm |
| 6 | Height of molding upper table | 120mm |
| 7 | Height of molding lower table | 120mm |
| 8 | Upper furnace length | 1850mm |
| 9 | Lower furnace length | 1850mm |

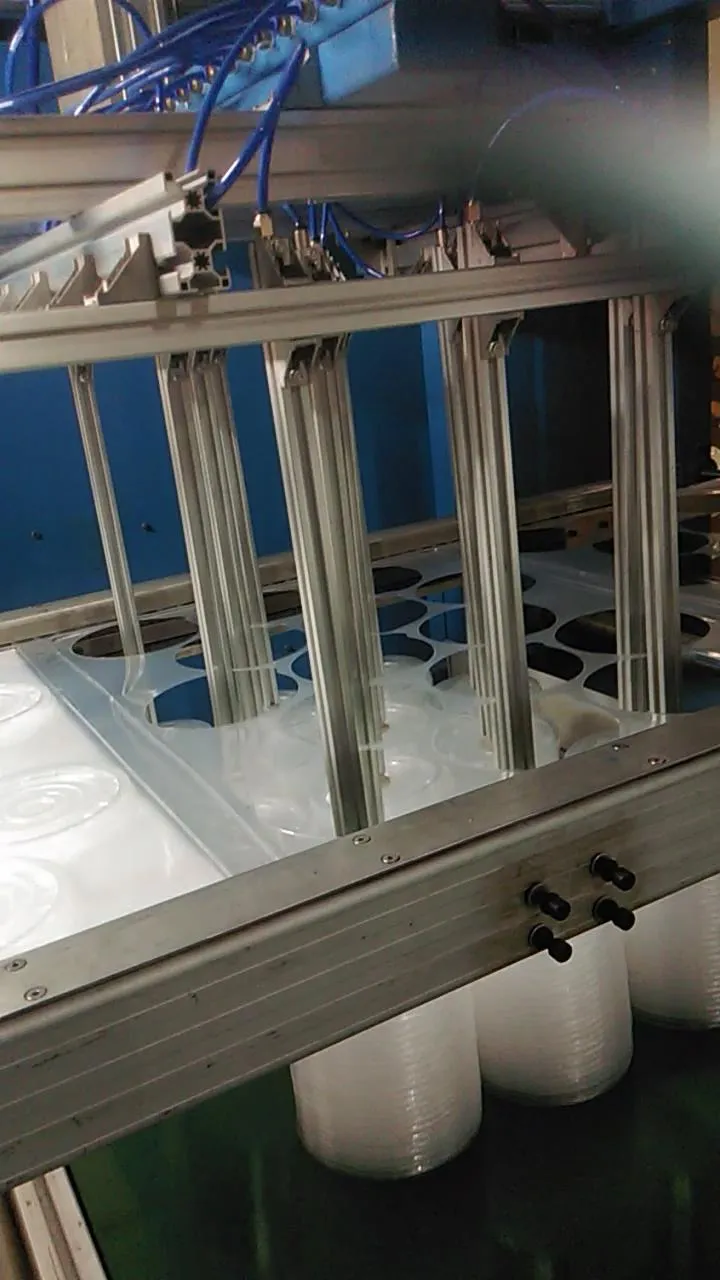

| 10 | Stacking Height | 500mm |

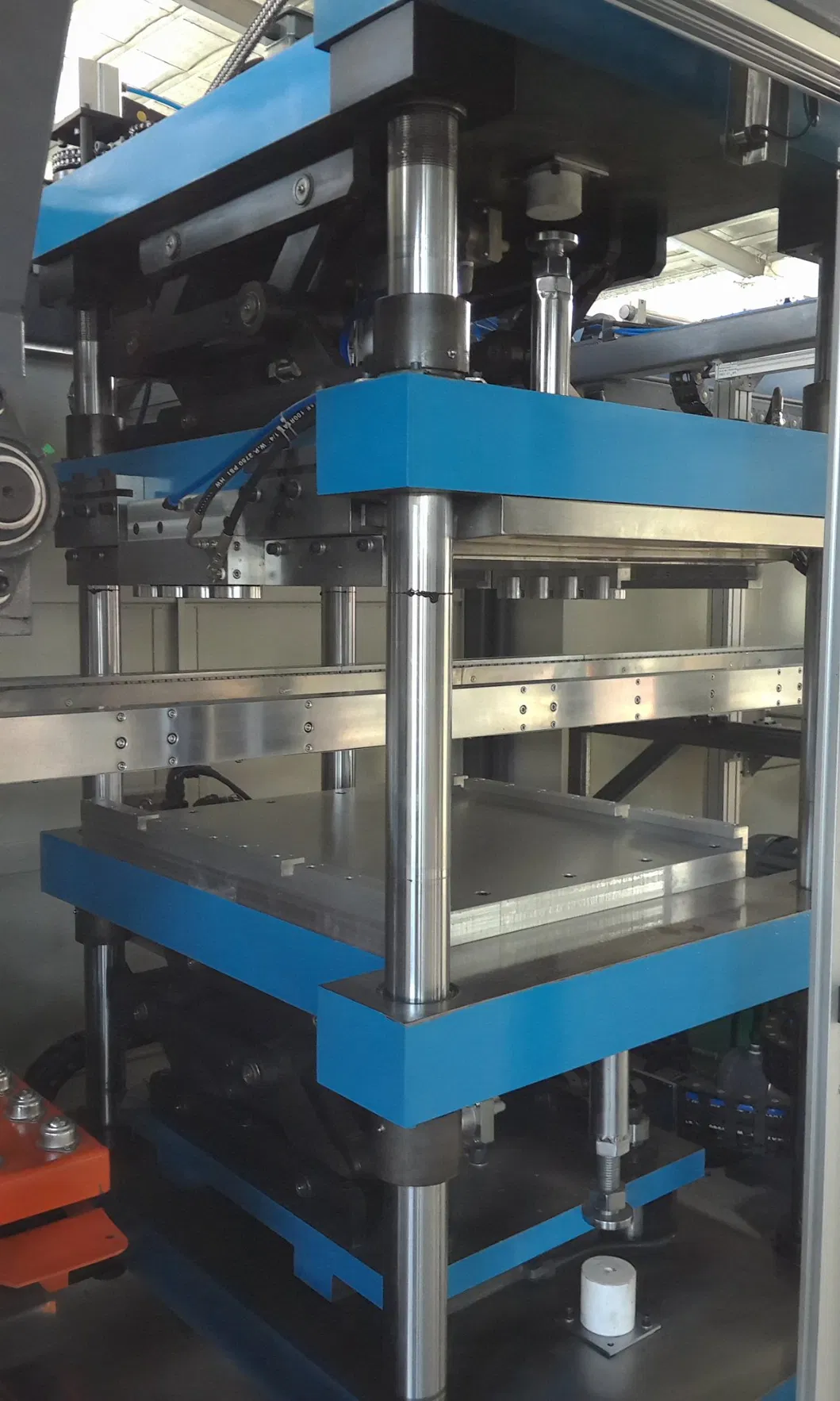

| 13 | Maximum cutting force | 80T |
| 14 | Cutting method | Laser wood molding/Aluminum frame with knives/Hardware Stamping Knives |
| 15 | Total power of the upper furnace | 66KW |
| 16 | Total power of the lower furnace | 66KW |
| 18 | Total power of equipment | 146KW (normal use power: 60KW-90KW) |
| 19 | Vacuum volume | 200m3/h |
| 20 | Molding cooling method | Water-cooled + Air-cooled |
| 22 | Power supply | 380V/50HZ (three-phase four-wire) |
| 25 | Total weight of equipment | 15T |
| 26 | Machine Size | 12000 x 2500 x 2800mm (Approx.) |
| No. | Component Name | Brand & Description |
|---|---|---|
| 1 | Punching pressure | Servo system |
| 3 | Tab Chain | High Quality cusp chain (08B-2R-SA1) |
| 4 | Controller (PLC) | Advanced PLC System |
| 6 | Touchscreen | 15 inch color touch screen |
| 7-12 | Servo Motors | Integrated Servo systems for pulling, forming, cutting, and stacking |

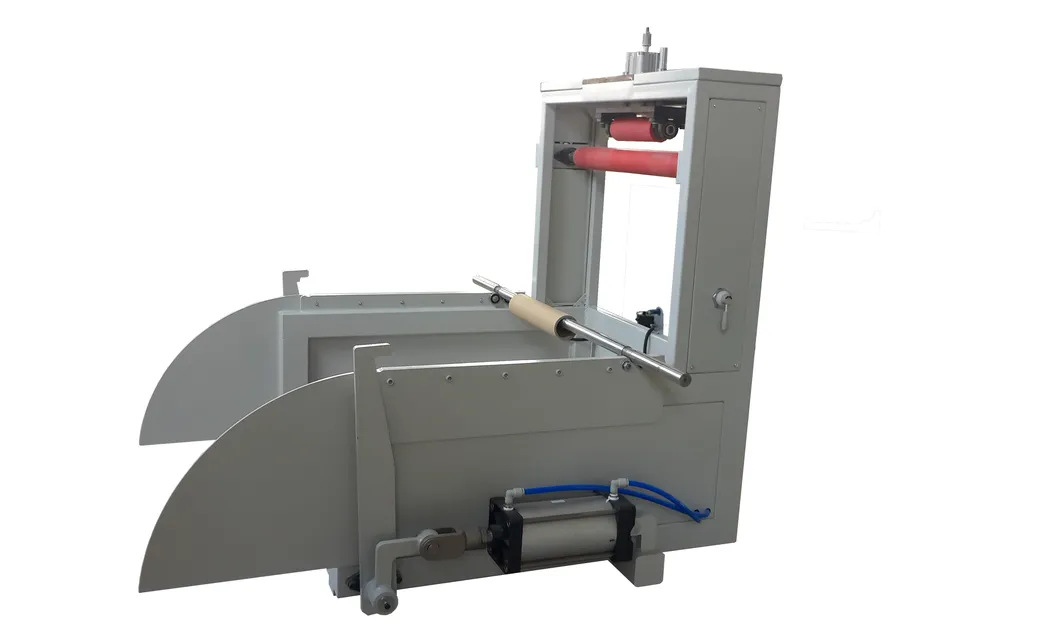

| 14 | Loading frame | Silicone spraying gun equipped |
| 22-23 | Sensors | Precision optical and travel switches |
| 34 | Vacuum pumps | VC200m3/h |
| 35 | Chiller | 10HP Industrial chiller |

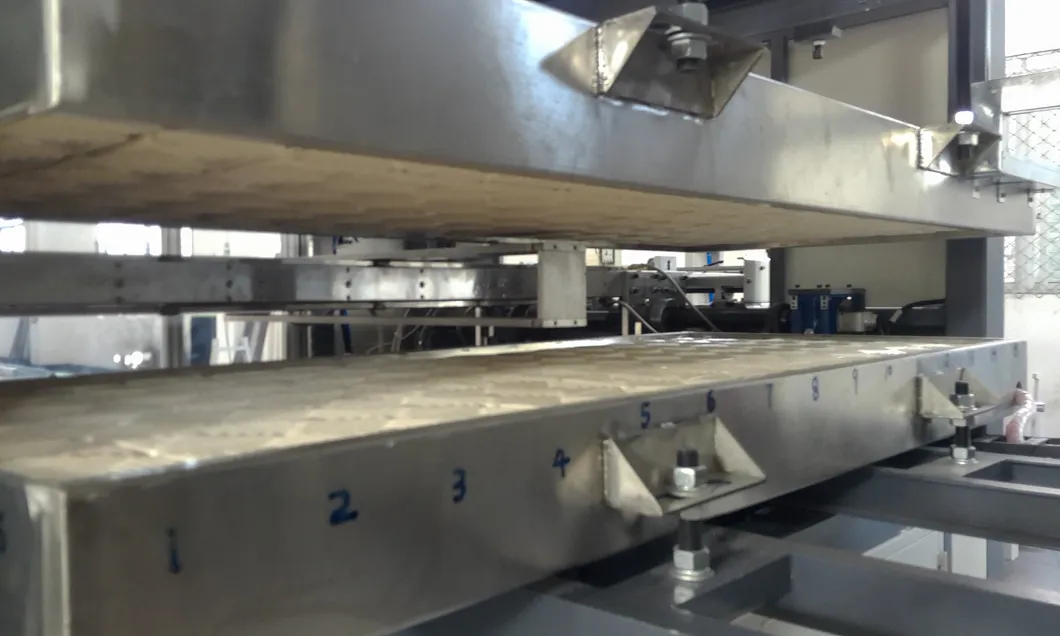

| 36 | Heating brick | Far-infrared ceramic energy-saving bricks |

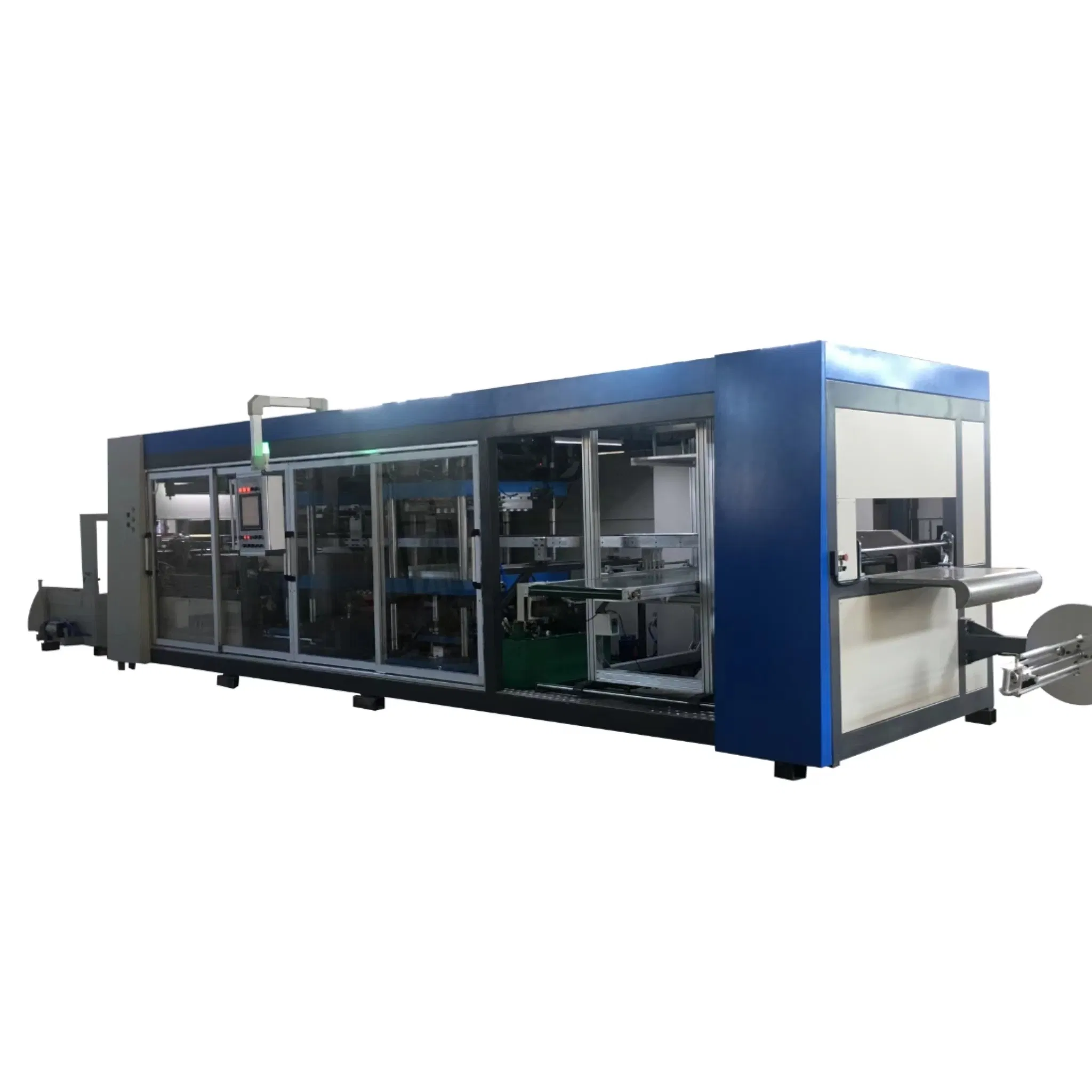

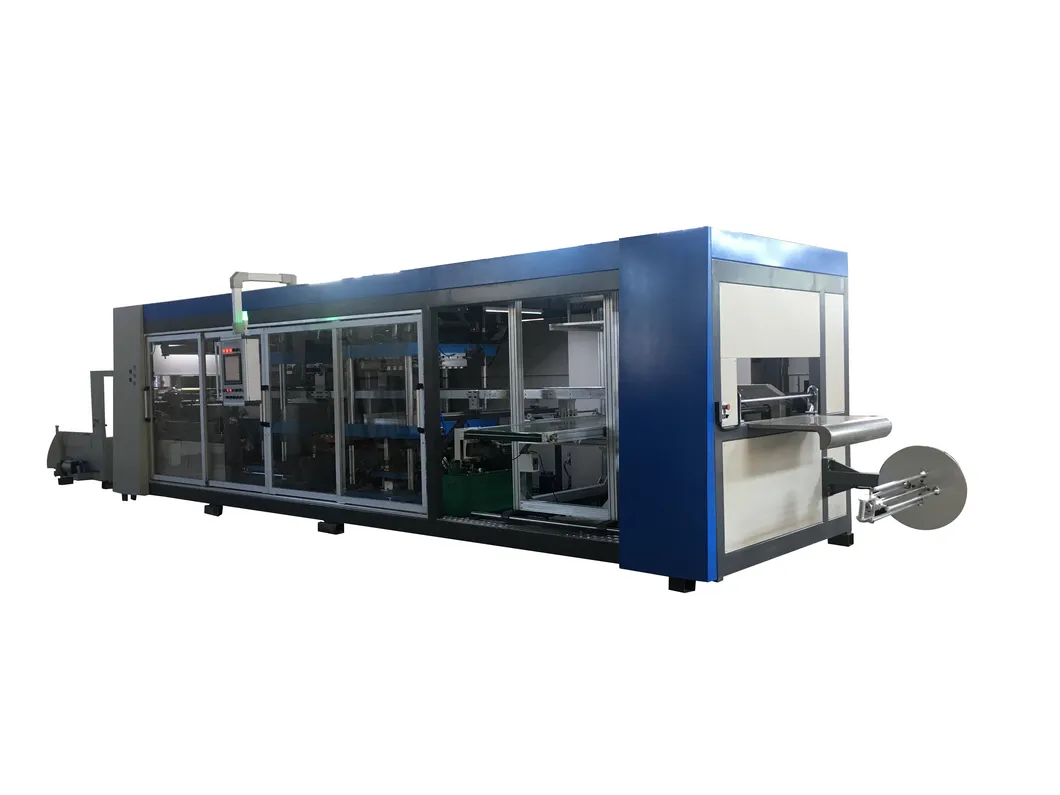

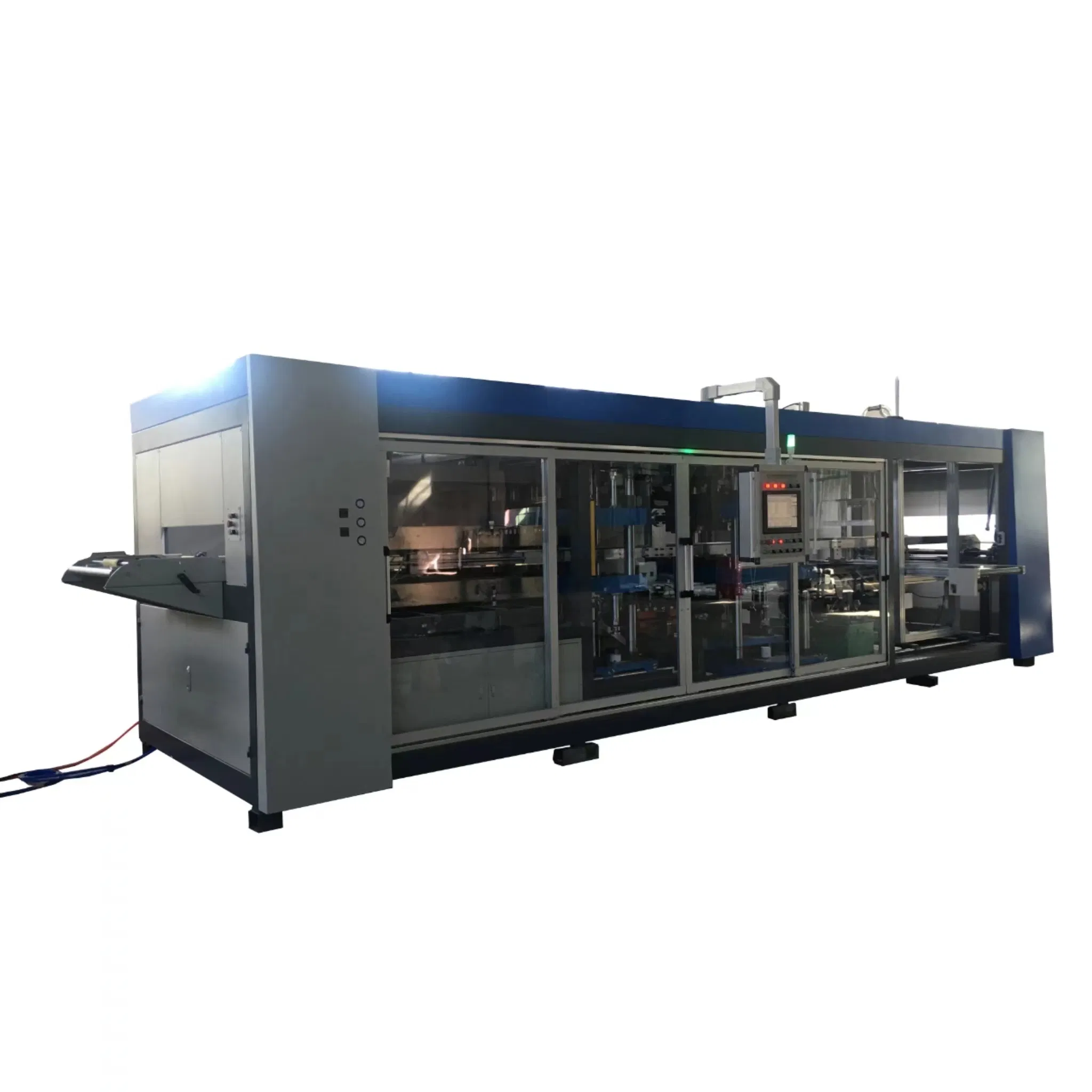

Integrated Design: A collection of mechanical, electrical, and pneumatic integration. Utilizes microcomputer and industrial programmable PLC control with a full HMI system.
One-Stop Production: Feeding, heating, molding, punching, cutting, and stacking are all completed in one continuous process. This reduces labor and increases high-speed productivity.

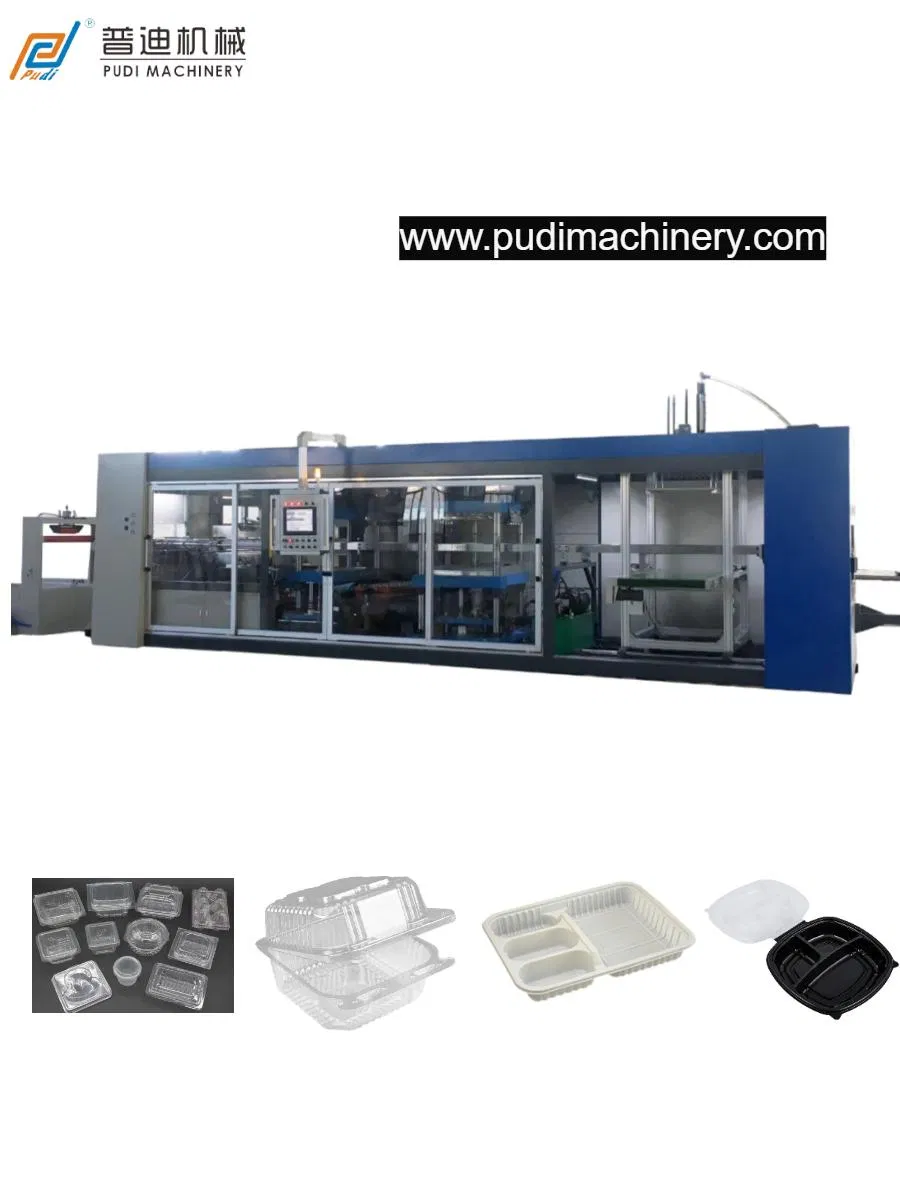

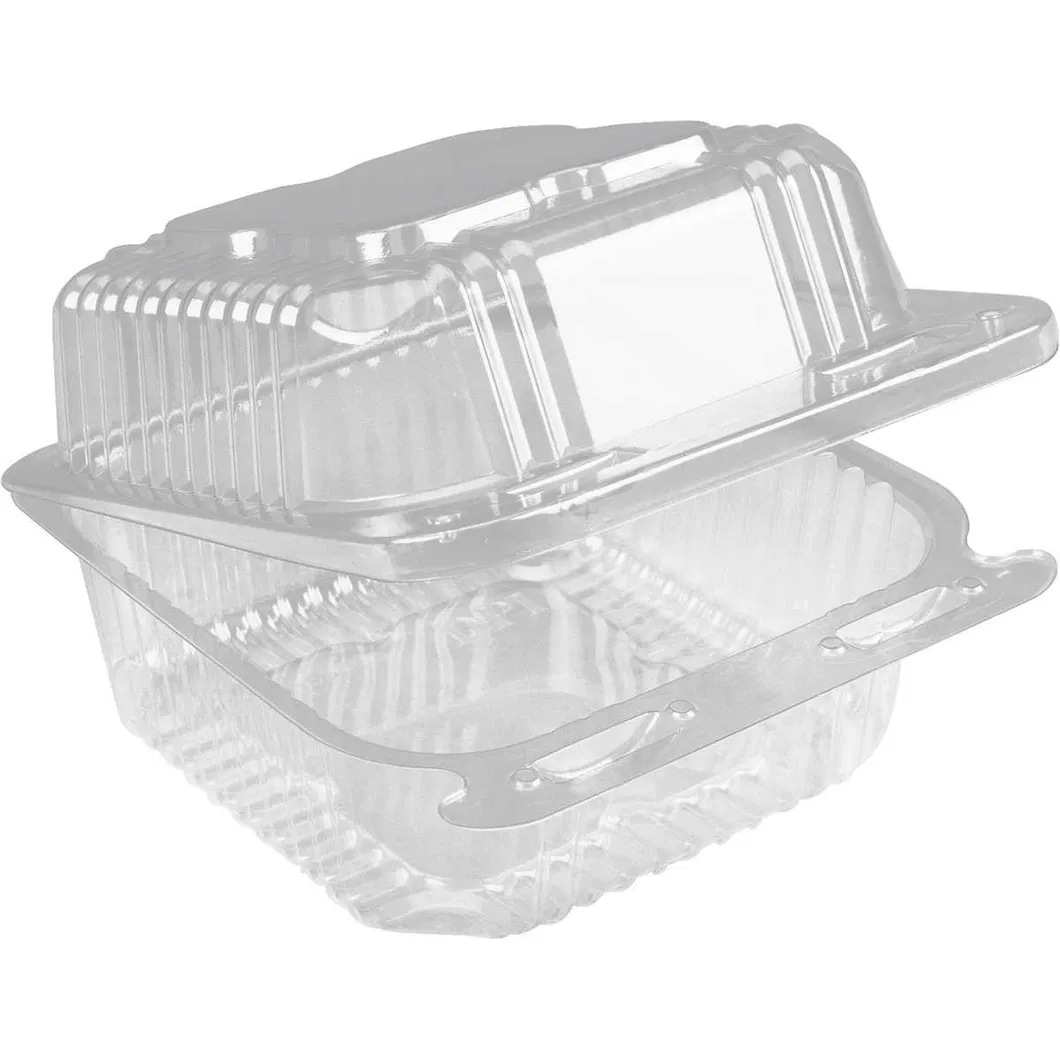

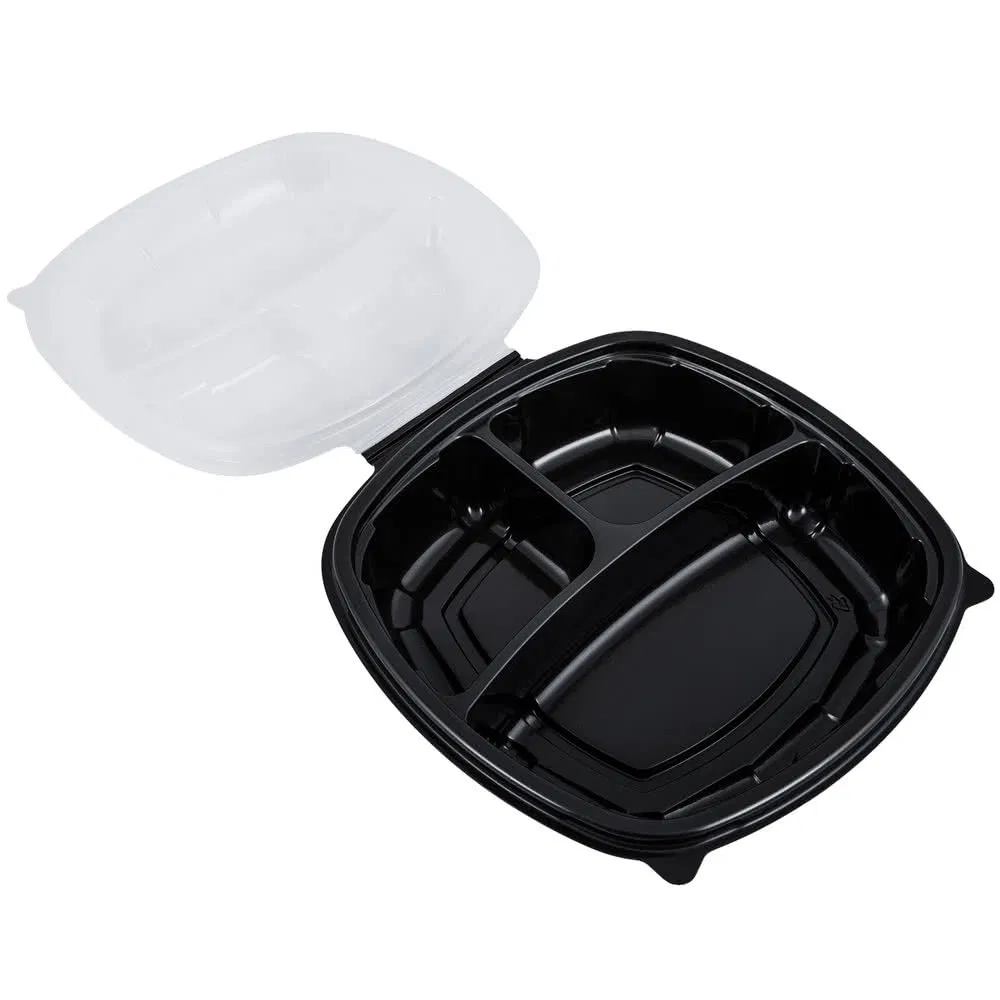

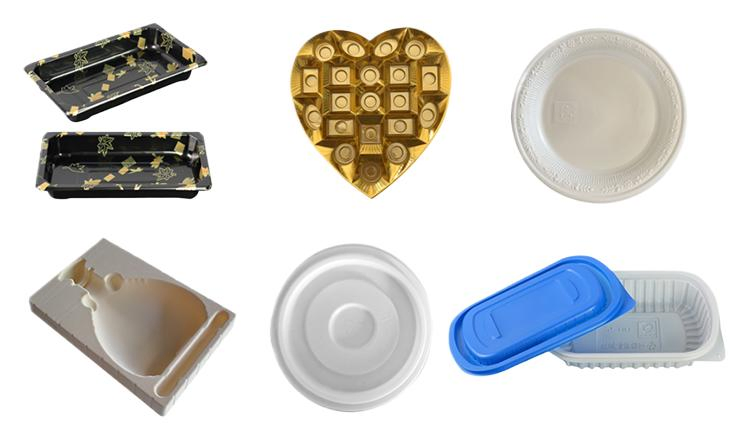

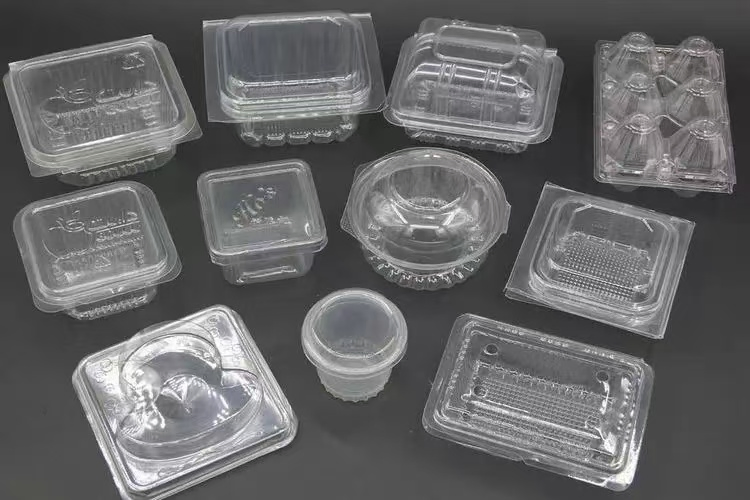

Versatility: Suitable for HIPS, PS, PP, PVC, PET, ABS. Ideal for manufacturing boxes, plates, trays, bowls, lids, and industrial packaging.

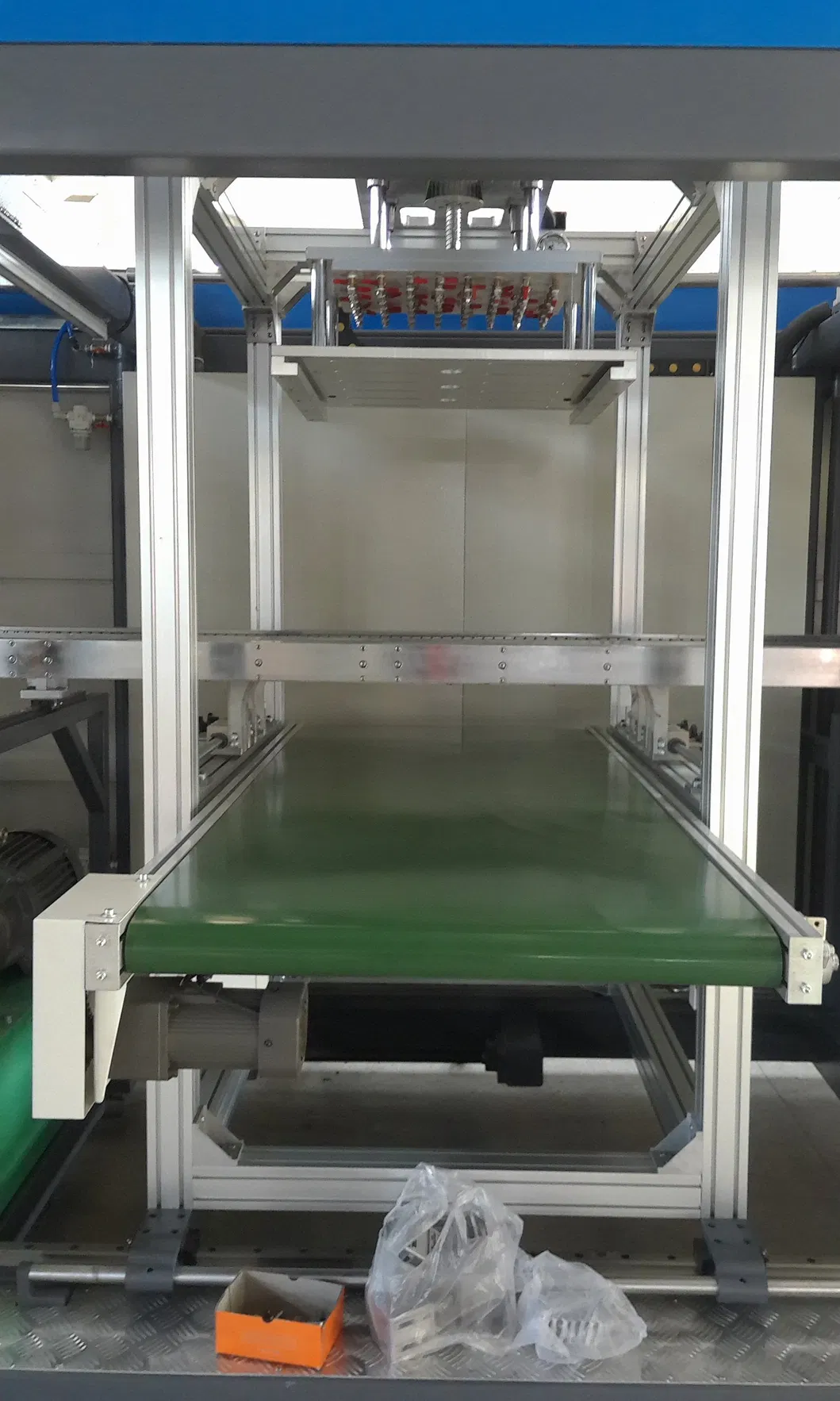

Sheet supply → Transportation → Dual-stage heating → Molding & Cooling → Cutting → Decomposition & Stacking → Waste self-reeling system.
Reasonable program planning, equipment investment ratio analysis, and workshop utility requirements (water/electricity/gas) provisioning.
Mould planning proposals, professional installation, onsite commissioning, and staff training to ensure ideal product output.
One-year warranty for equipment (excluding man-made damage), lifetime maintenance, and periodic follow-up visits to ensure optimal machine performance.
