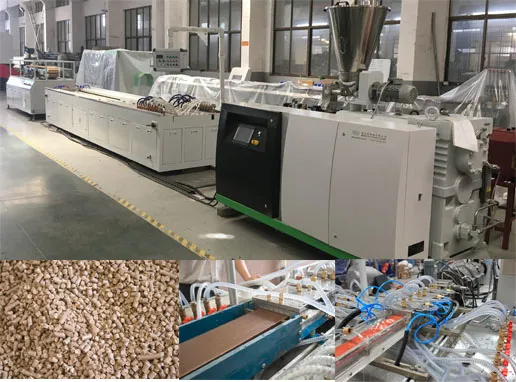

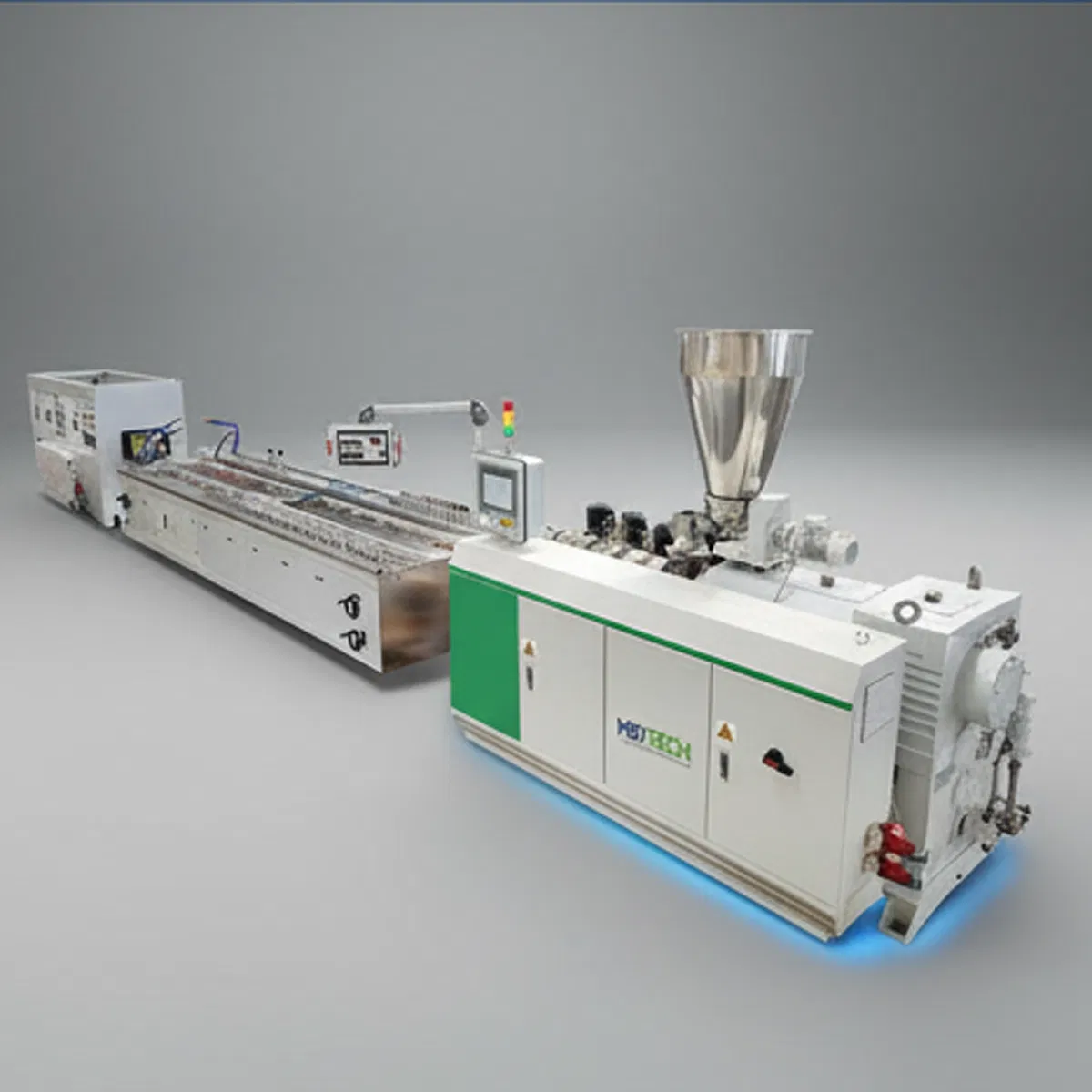

Wood plastic (WPC) compounds door/decking profile extrusion production line
Through market combination and technology innovation, we are pleased to provide:
Plastic Extruder and PE/PVC+ wood (WPC) project solutions.
| Model | Max Width | Extruder Model | Motor Power | Max Capacity |
|---|---|---|---|---|
| MT180 | 180mm | MT51/105 | 22kw | 120kg/h |
| MT240 | 300mm | MT65/132 | 37kw | 260kg/h |
| MT600 | 600mm | MT80/156 | 55kw | 400kg/h |
| MT800 | 800mm | MT92/188 | 90/100kw | 650kg/h |
| Component | Details |
|---|---|
| Feeder | To feed material into extruder; |

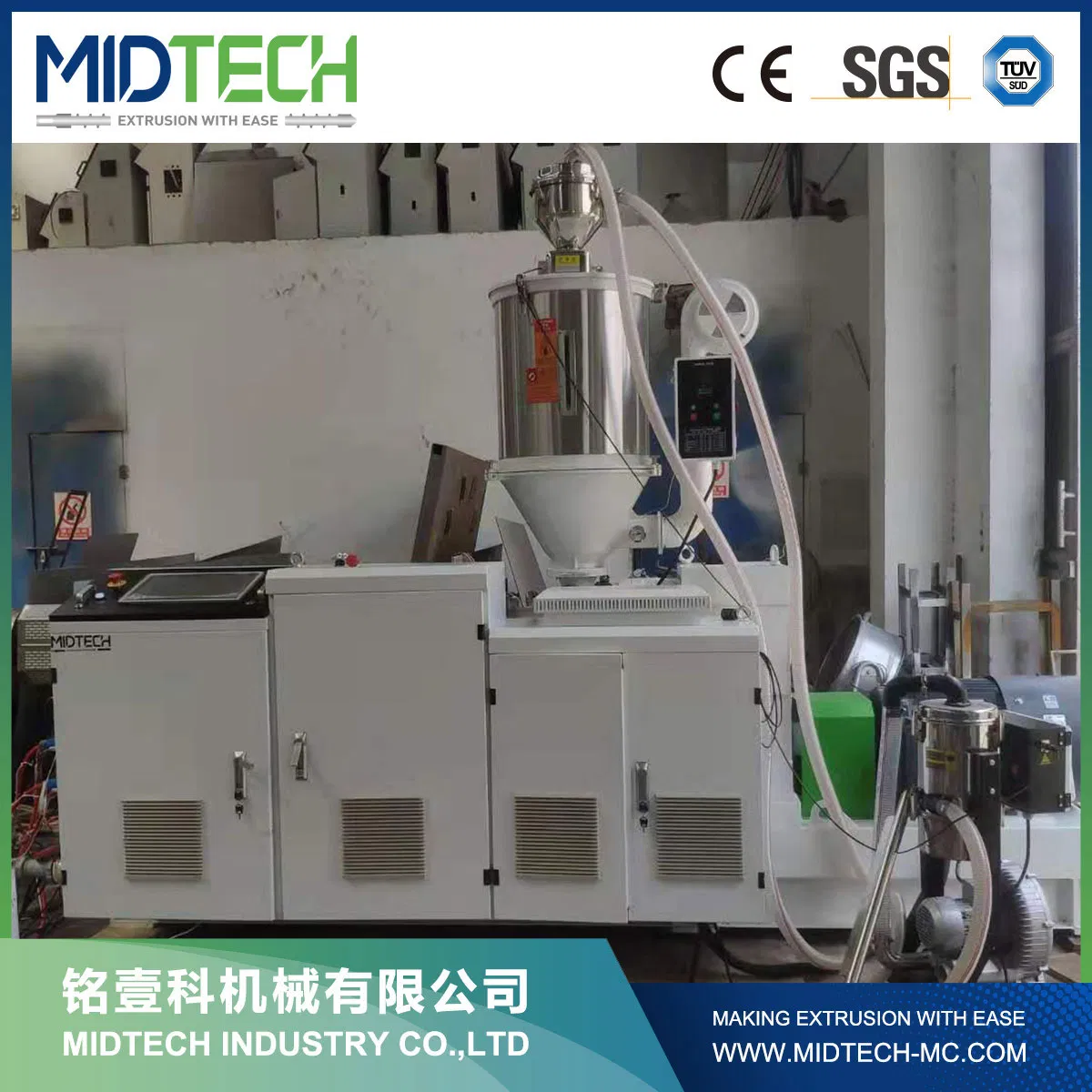

| Extruder | • World famous brands: Siemens, Schneider, ABB etc; • High torque gearbox with NSK/SKF bearing; • Siemens/WEG original motor; • Bimetallic screw and barrel; • Intelligent PLC controlling system. |

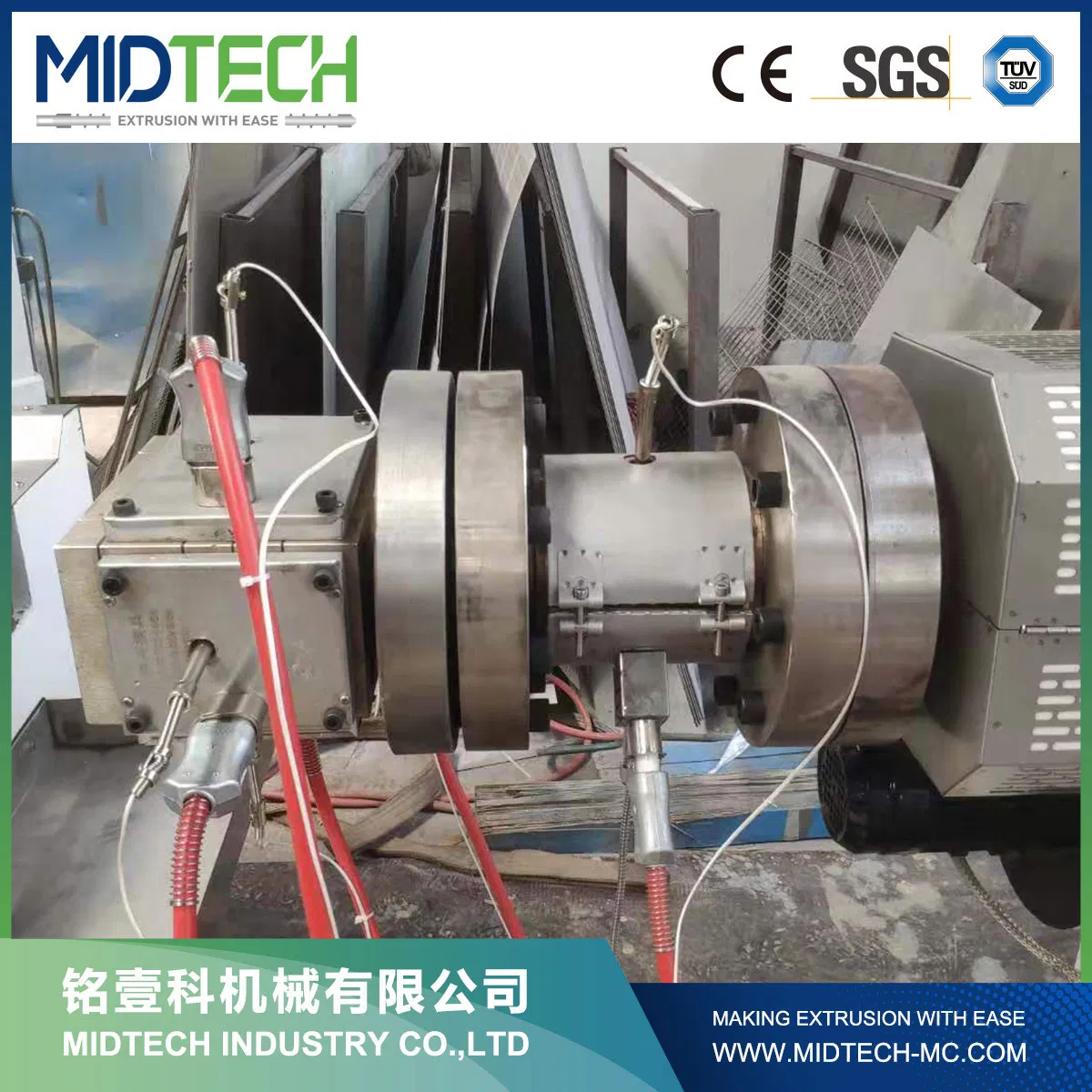

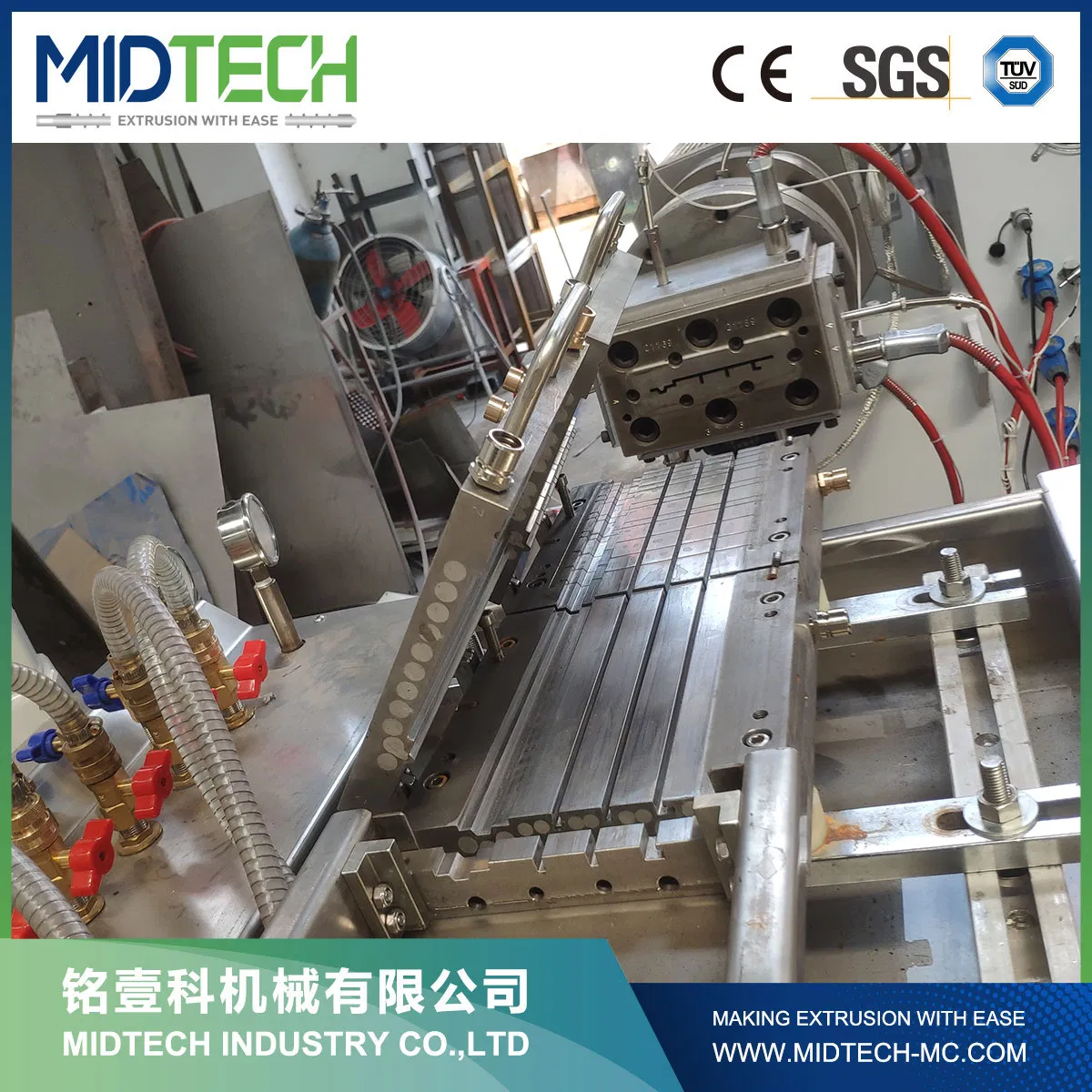

| Die head | • 3Cr13/3Cr17 material; • Includes extrusion die head, calibrator and cooling tank. |

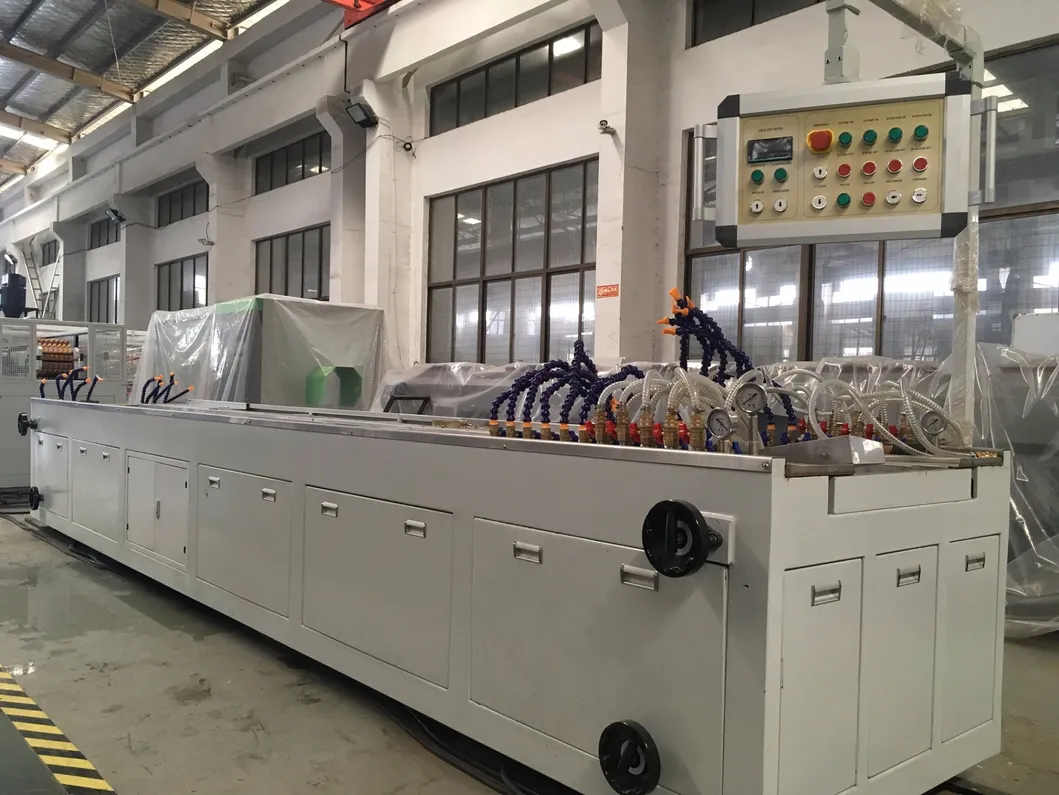

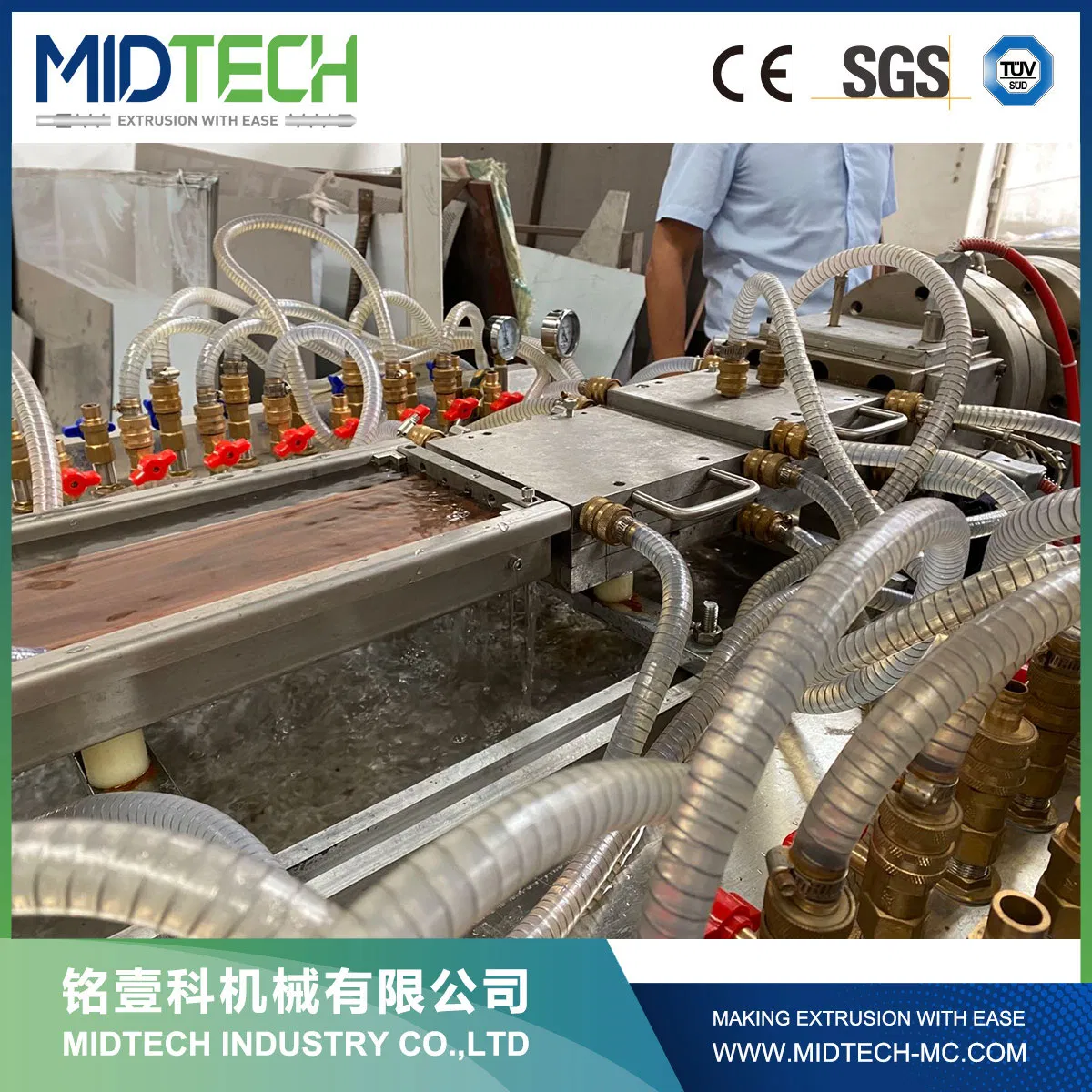

| Calibration Table | • Full set of vacuum and water pump; • Length: 6000mm; • Independent operation panel. |

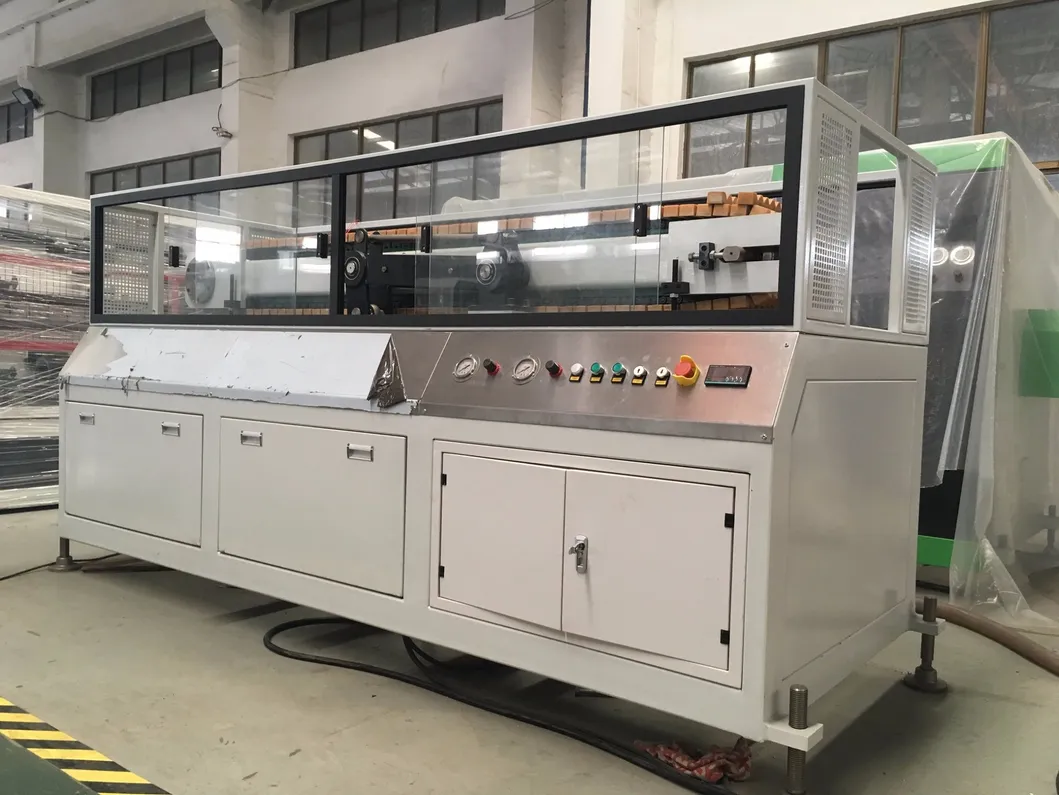

| Haul off | • Caterpillar driven separately; • Speed control by inverter; • Aluminum install plate. |
| Cutter | • Lifting saw cutter with double station dust collection; • Synchronous driving by air cylinder or servo motor. |
| Stacker | • Stainless steel 304 material; • Discharge driving by air cylinder. |
| Hot Stamping | • Decorative pattern and film protection for product surface. |
