Wood Plastic Composite WPC PE Decking Co-Extrusion Machine
Wood Plastic Composite WPC PE Decking Co-Extrusion Machine
Wood Plastic Composite WPC PE Decking Co-Extrusion Machine
Wood Plastic Composite WPC PE Decking Co-Extrusion Machine
Wood Plastic Composite WPC PE Decking Co-Extrusion Machine
1 / 5
Wood Plastic Composite WPC PE Decking Co-Extrusion Machine
Wood Plastic Composite WPC PE Decking Co-Extrusion Machine
Wood Plastic Composite WPC PE Decking Co-Extrusion Machine
Wood Plastic Composite WPC PE Decking Co-Extrusion Machine
Wood Plastic Composite WPC PE Decking Co-Extrusion Machine

Wood Plastic Composite WPC PE Decking Co-Extrusion Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
sjsz-65/132 SJ-45/25
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Customized
Customized
PLC
Siemens
Breaker Contactor
Siemens
Raws
PE+Wood Powder+Chemical Additives
Install Power
95kw
Dimension
20X3X2.5
Line Speed
0.8-1.2m/Min
Capacity
80-120kg/Hr
Weight
11t
Power Supply
380V, 3phs.50Hz
Co-Extusion Layer
PE Layer
HS Code
84772090
P

Product Description

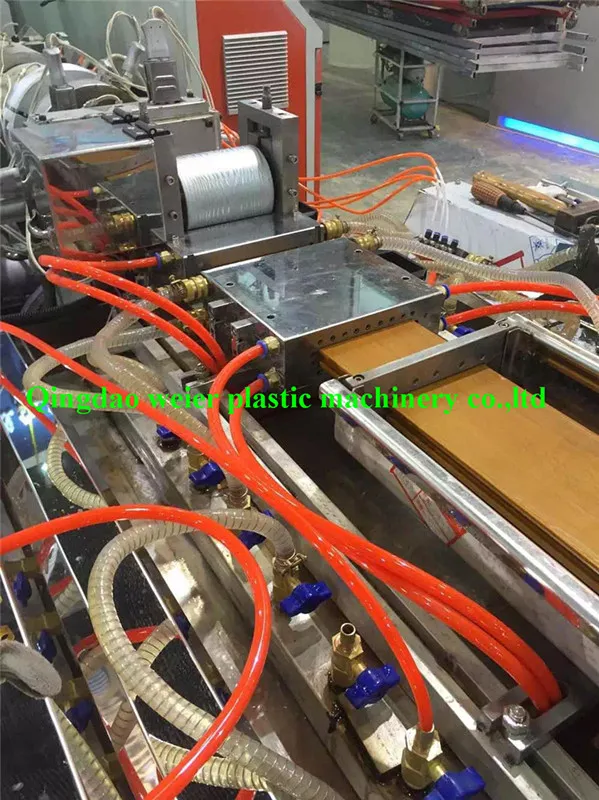

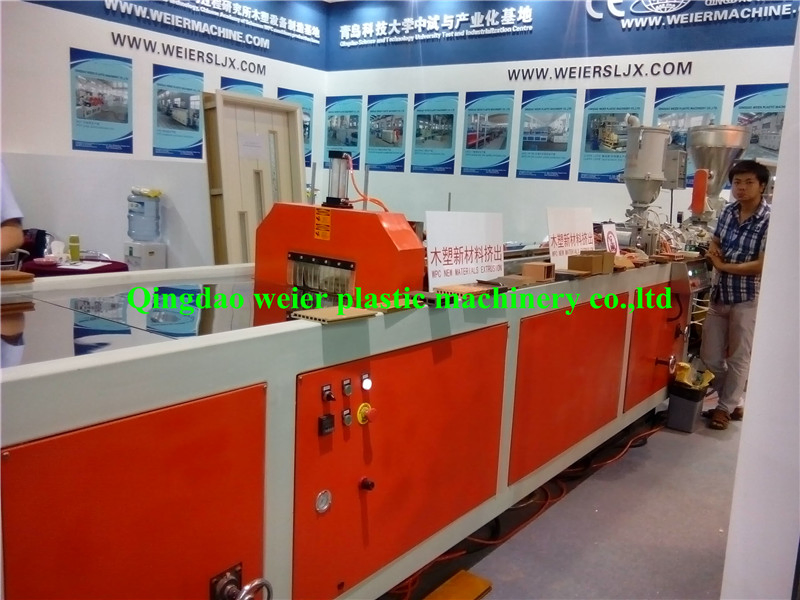

Wood Plastic Composite WPC PE Decking Co-Extrusion Machine

The wood plastic composite WPC profile machine mainly utilizes PVC/PE recycled materials combined with wood powder. It is designed for producing skirting, window and door frames, furniture edges, door pockets, and various decorative profiles. This production line incorporates original wood plastic techniques and specialized formulas, allowing for precise design proportions based on specific profile sections and usage requirements.

T

Technical Parameters

Model Item SJSZ-51\150 SJSZ-65\132 SJSZ-80\156 SJSZ-92\188
Components Extruder, Head Mould, Calibrating table, Haul-off machine and Cutter, Discharging frame
Motor power 22/30kw 30/37kw 55/75kw 90/110kw
Output 60-100kg/h 130-200kg/h 200-280kg/h 260-350kg/h
Speed 0.3-4m/min 0.3-4m/min 0.5-4m/min 0.5-4m/min
Mixer Unit SHR100/200 SHR200/500 SHR300/600 SHR500/1000
Crusher SWP360 SWP360 SWP400 SWP600
C

Main Components & Features

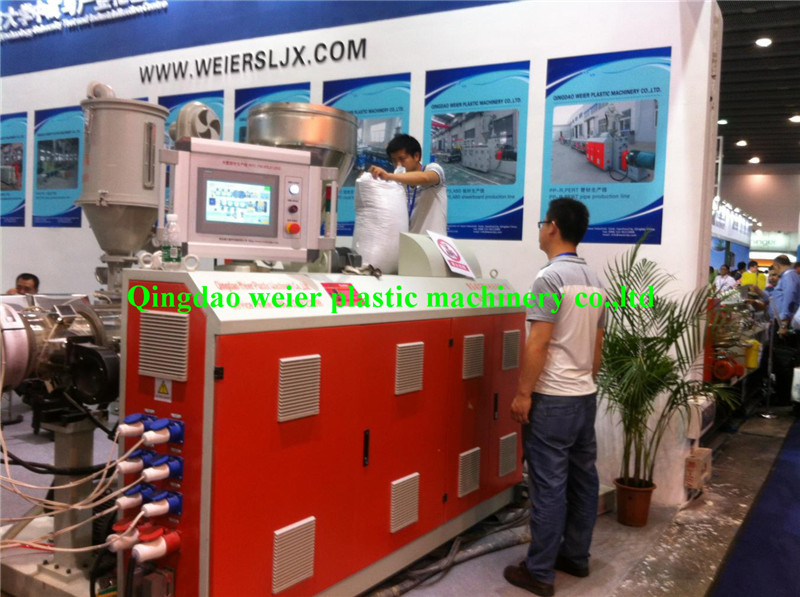

  • Twin Screw Extruder SJSZ-65 (One set)
  • Vacuum Calibrating Table (One set)
  • Haul-off Machine (One set)
  • Automatic Cutting Machine (One set)
  • Tilting Table (One set)
  • SJ-45/25 Co-extruder (One set)
  • Embossing Roller (One pc)
S

Our Services & Guarantee

  • Quality Guarantee: One-year guarantee for repair, replacement, and refund of substandard products (excluding improper operation).
  • Component Warranty: Six months for electrical parts and long-term guarantee for screw & barrel against non-normal abrasion.
  • Project Analysis: Provision of Feasibility Analysis Reports and model designs for plant layouts.
  • Technical Training: Comprehensive technique training for operators and formula solutions based on product requirements.
  • Turn-key Solutions: Complete installation, testing, and production support within the customer's factory.
M

Packaging & Factory Display

Packaging and shipping

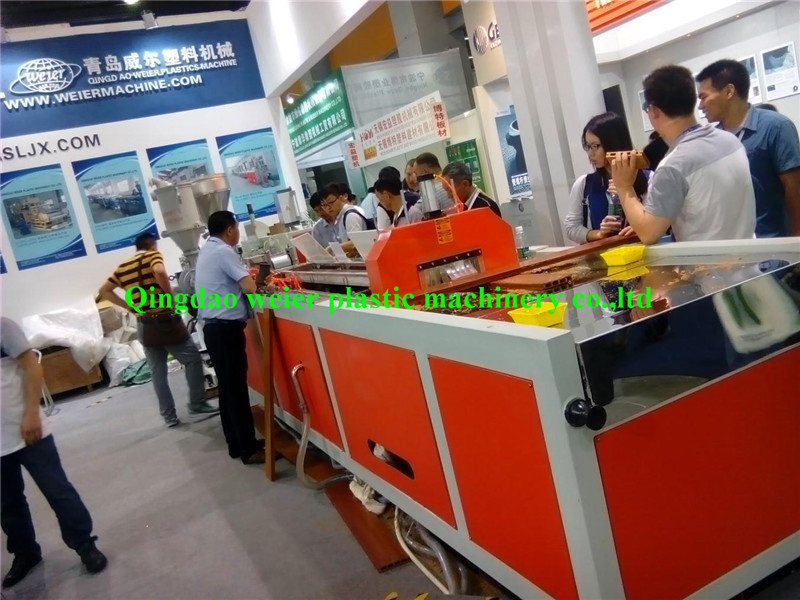

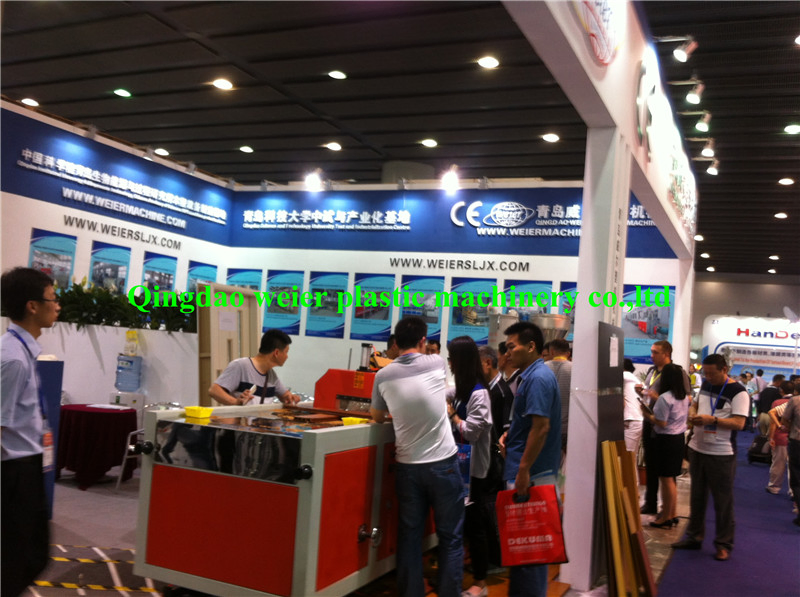

Exhibition showing

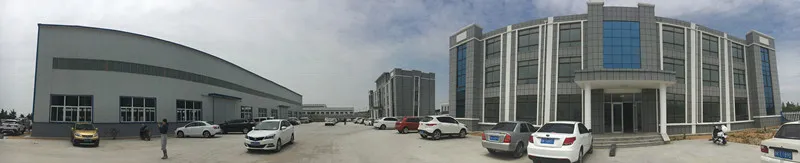

Factory and office building
Frequently Asked Questions (FAQ)
Q1: What materials can this WPC machine process? A1: The machine is designed to process a mixture of PE/PVC recycled resin, wood powder, and specific chemical additives according to a specialized formula.
Q2: What is the production capacity of the SJSZ-65/132 model? A2: The standard capacity ranges from 80-120kg/Hr, with line speeds reaching up to 0.8-1.2 meters per minute depending on the profile.
Q3: Are the key electrical components reliable? A3: Yes, the machine utilizes high-quality Siemens PLC systems and Siemens breaker contactors to ensure stable and automatic operation.
Q4: What kind of warranty is provided with the machinery? A4: We provide a one-year guarantee for the main machine and a six-month warranty for electrical parts. Fittings are supplied at preferential prices after the warranty period.
Q5: Do you provide on-site installation and training? A5: Yes, we provide turn-key projects including installation, testing in your factory, and comprehensive training for your workers on how to operate the machinery.
Q6: Can the machine be customized for specific profiles? A6: Absolutely. We design the proportion and components of the WPC line based on the different profile sections and the intended usage of the final product.
