Basic Information
Screw and Barrel
38CrMoAl, Nitrogen, Bimetallic
Application
Crushed PP PE Bottles, Crate
Degassing
2 (One Vacuum, One Natural)
Pelletizing Way
Water-Ring Hot Die
Delivery Time
45 Working Days
Product Description
The WPC Plastic Compounding Pelletizing machine is designed for compounding wood powder with plastic and other additives. The resulting pellets are ideally suited for manufacturing doors, windows, and various architectural components.
System Components:
- Conical twin screw extruders with high-quality alloy extrusion.
- Advanced degassing with force press system for efficient wood-plastic integration.
- Comprehensive auxiliary system: wind blower, crusher, and storage silo.
Technical Parameters
| Item NO. |
Component Name |
Quantity |
Power |
| 1 | Feeder | 1 set | 1.5kw |
| 2 | TSSK75 Twin Screw Extruder | 1 set | 75kw |
| 3 | Blower | 1 set | 3kw |
| 4 | Crusher | 1 set | 22kw |
| 5 | Blower | 1 set | 3kw |
| 6 | Electrical Control Box | 1 set | - |
Key Advantages
🚀 High Efficiency
Fully automatic operation with optimized power consumption for maximum ROI.
🛠️ Specialized Design
Custom screw designs (38CrMoAL or Bimetallic) tailored to specific raw materials.
📈 High Capacity
Industrial-grade output reaching approximately 300kg/h.
💎 Superior Quality
Two-stage filtration and dual degassing ensure high-purity, air-free pellets.
Machine Gallery

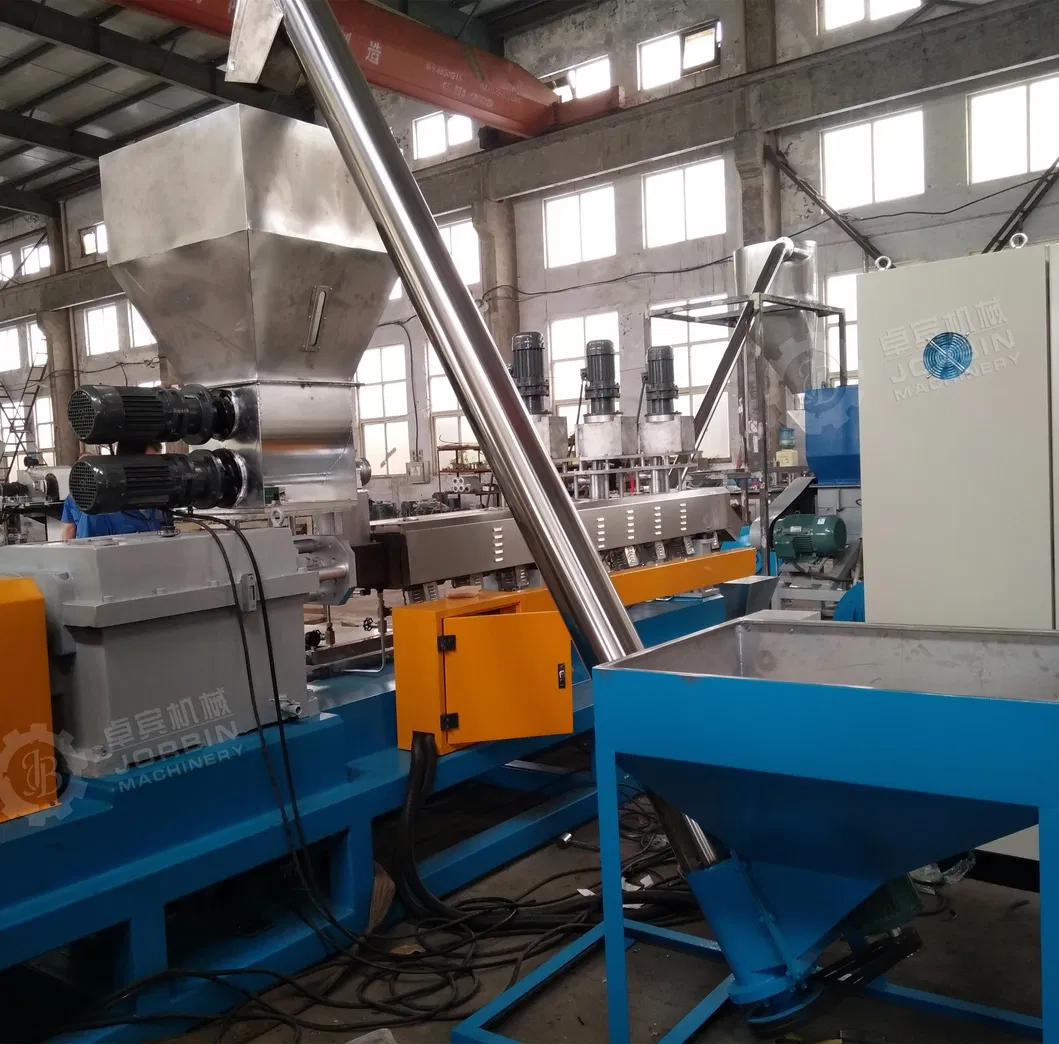

Feeder on the machine

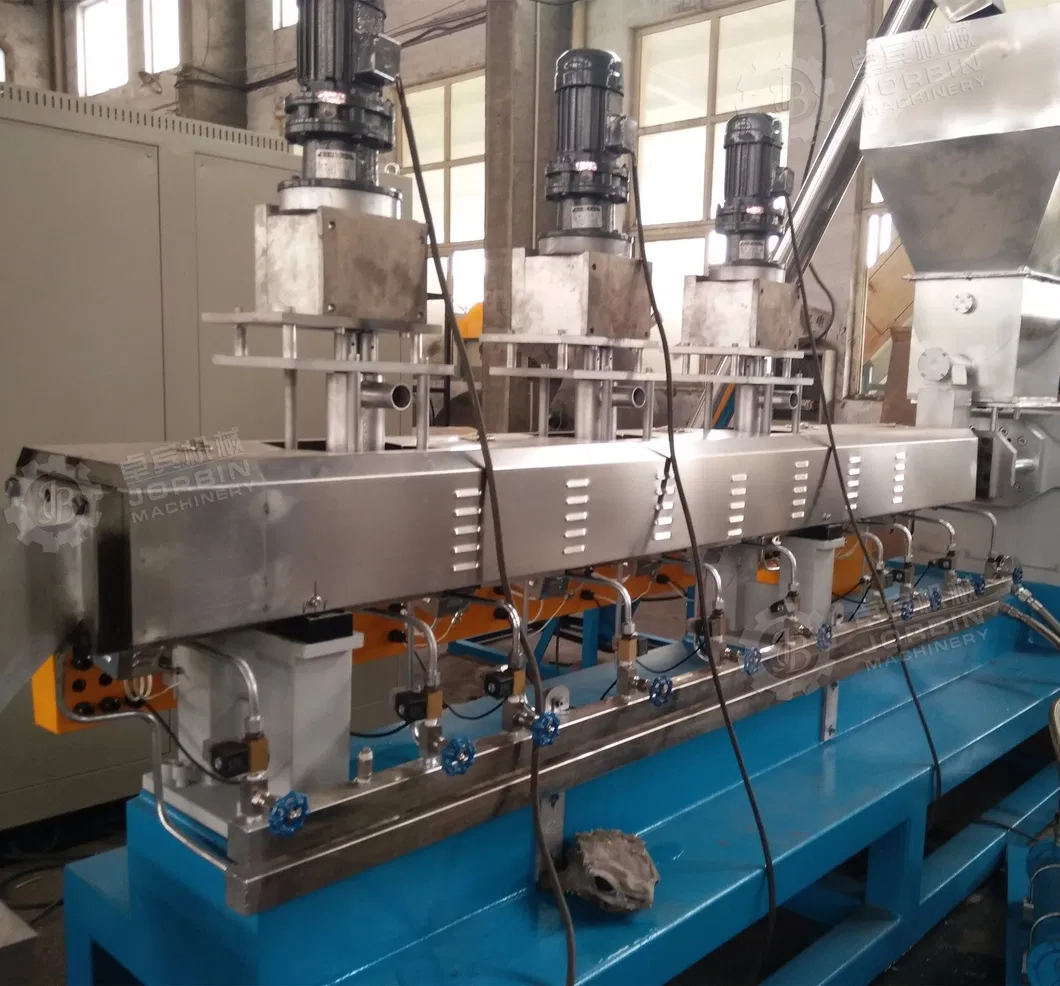

Main extruder machine with press system

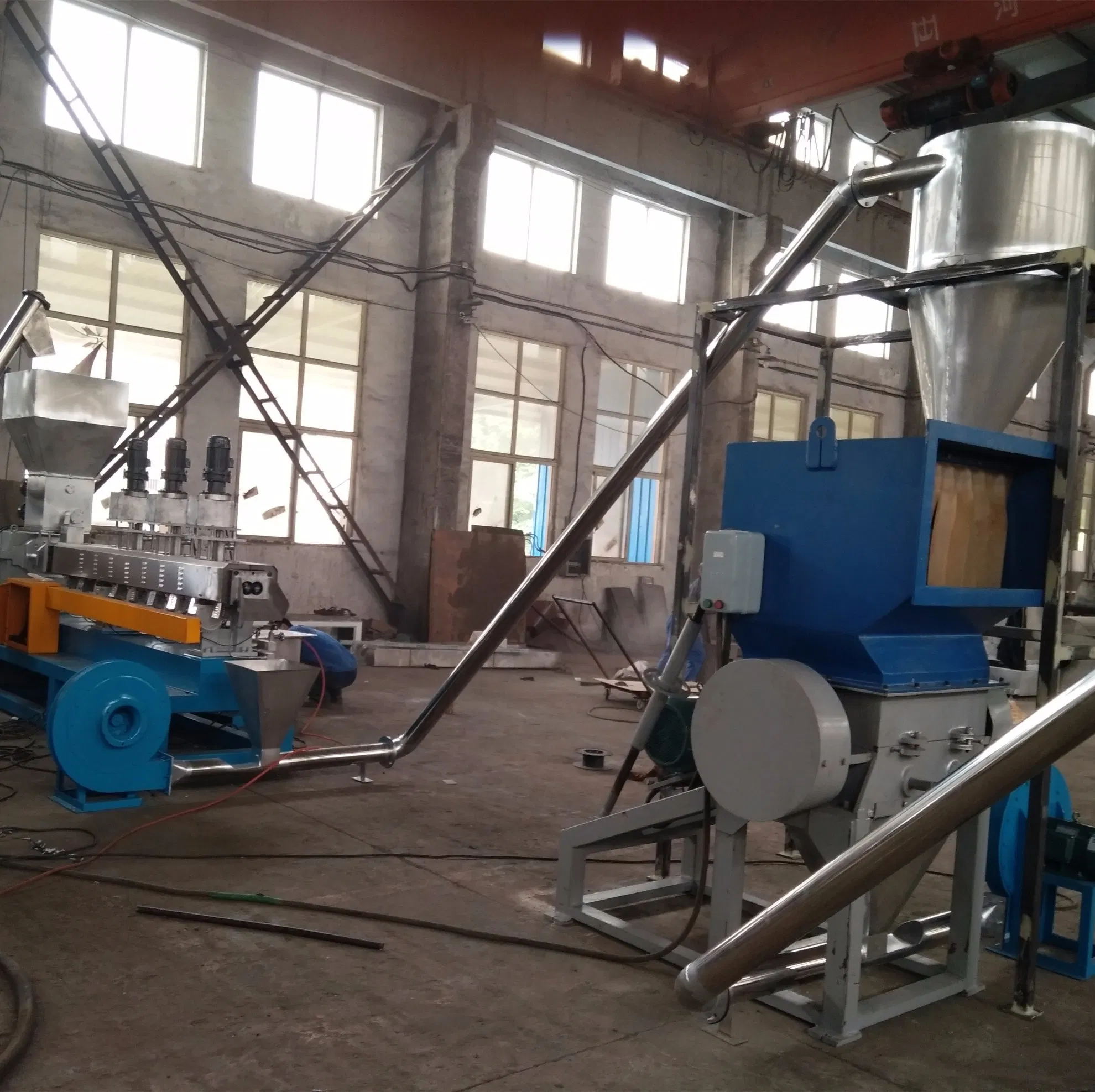

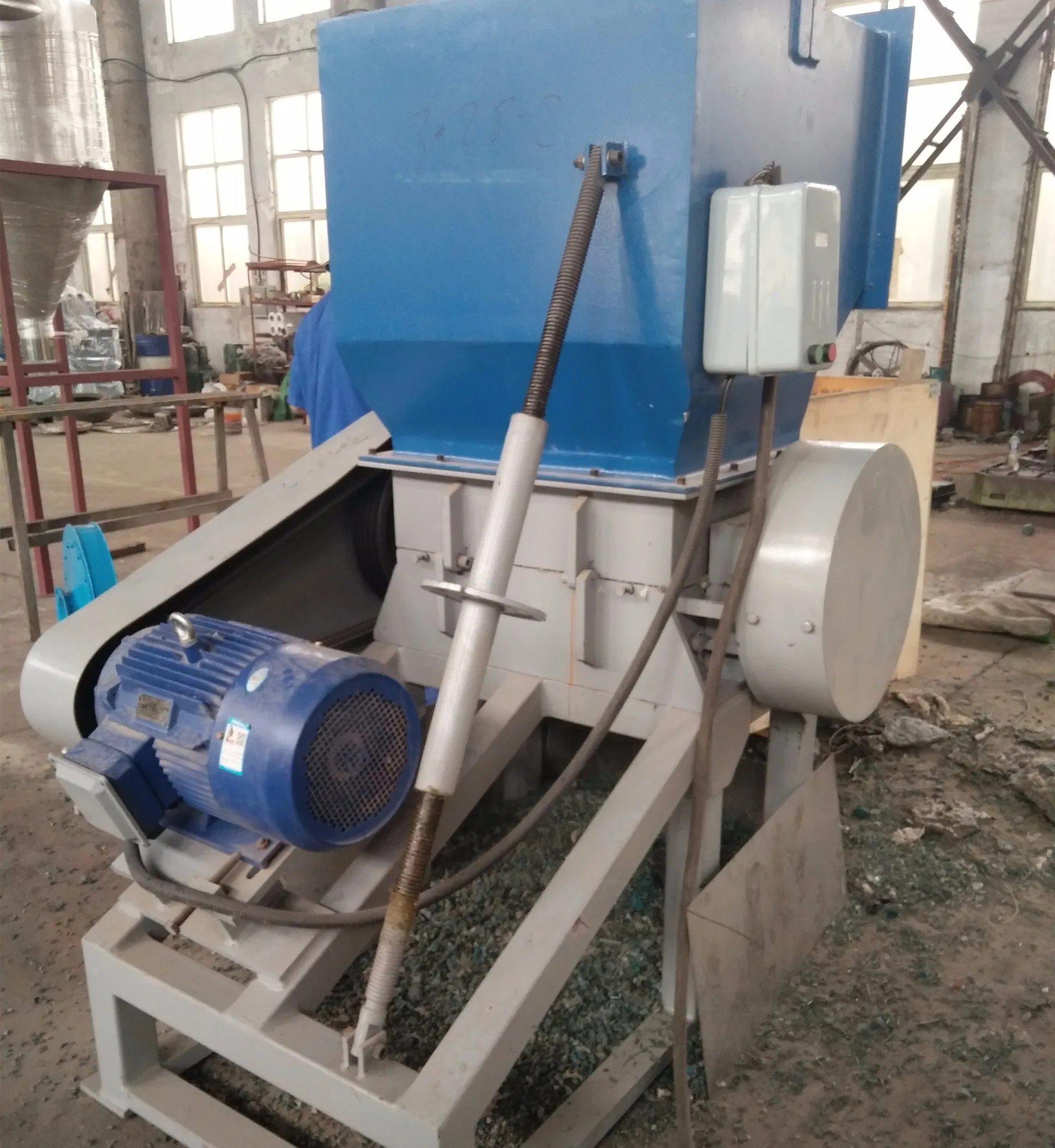

Blower and Crusher processing unit

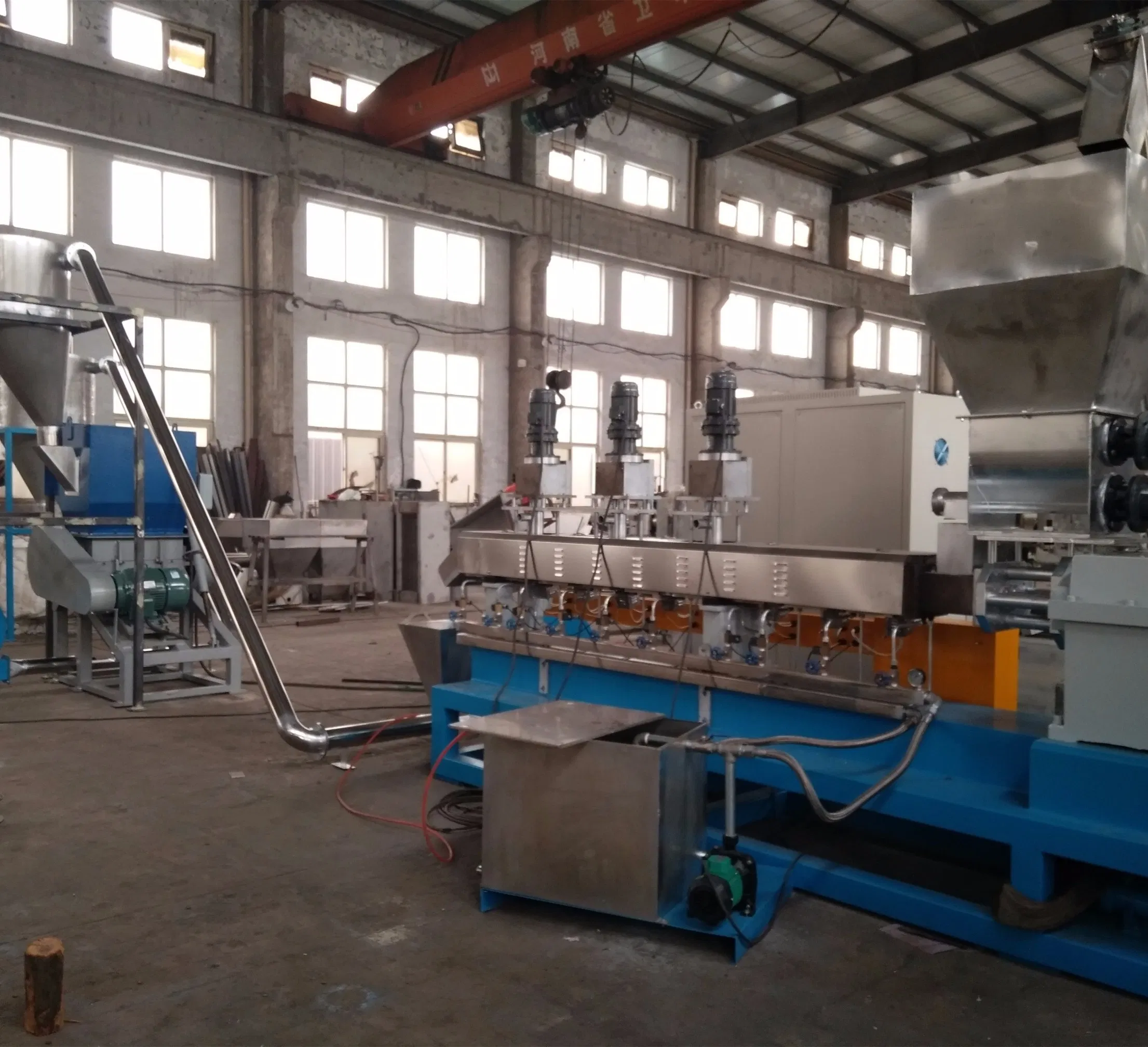

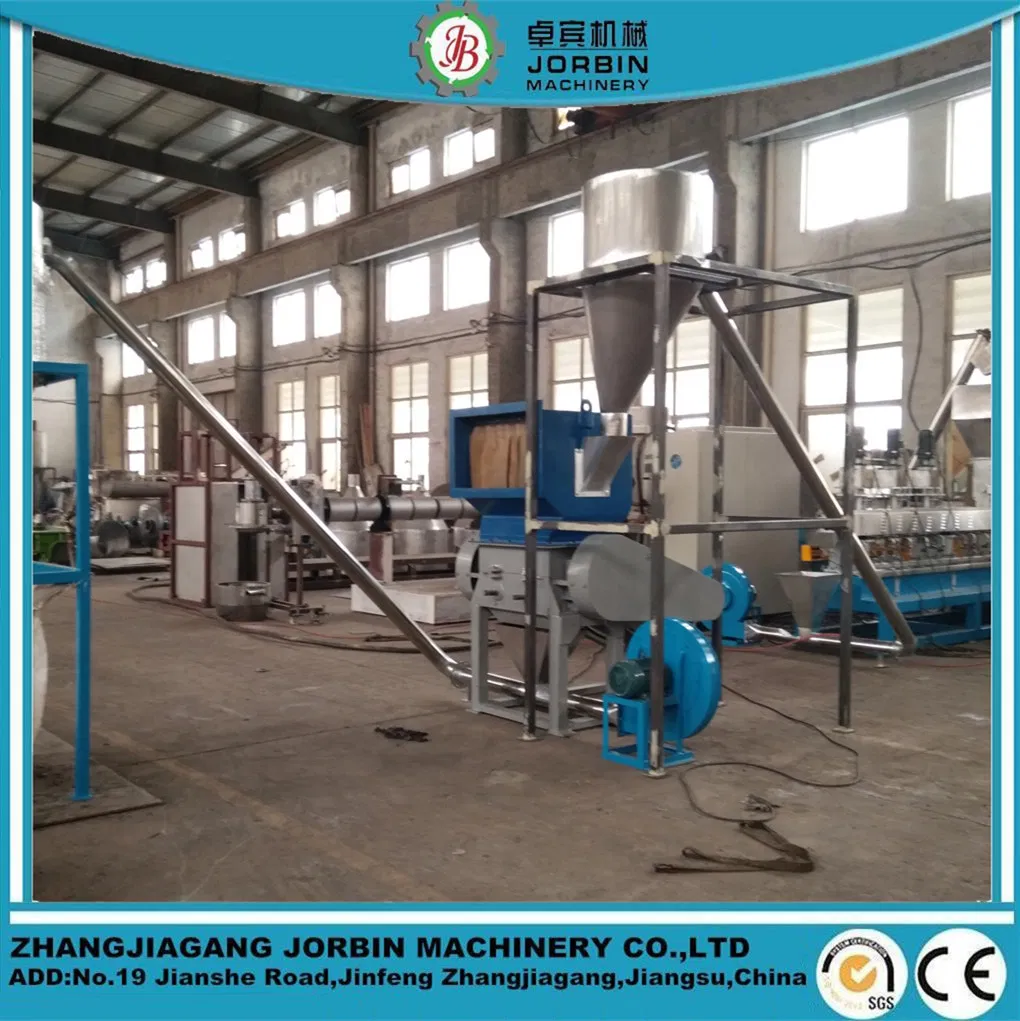

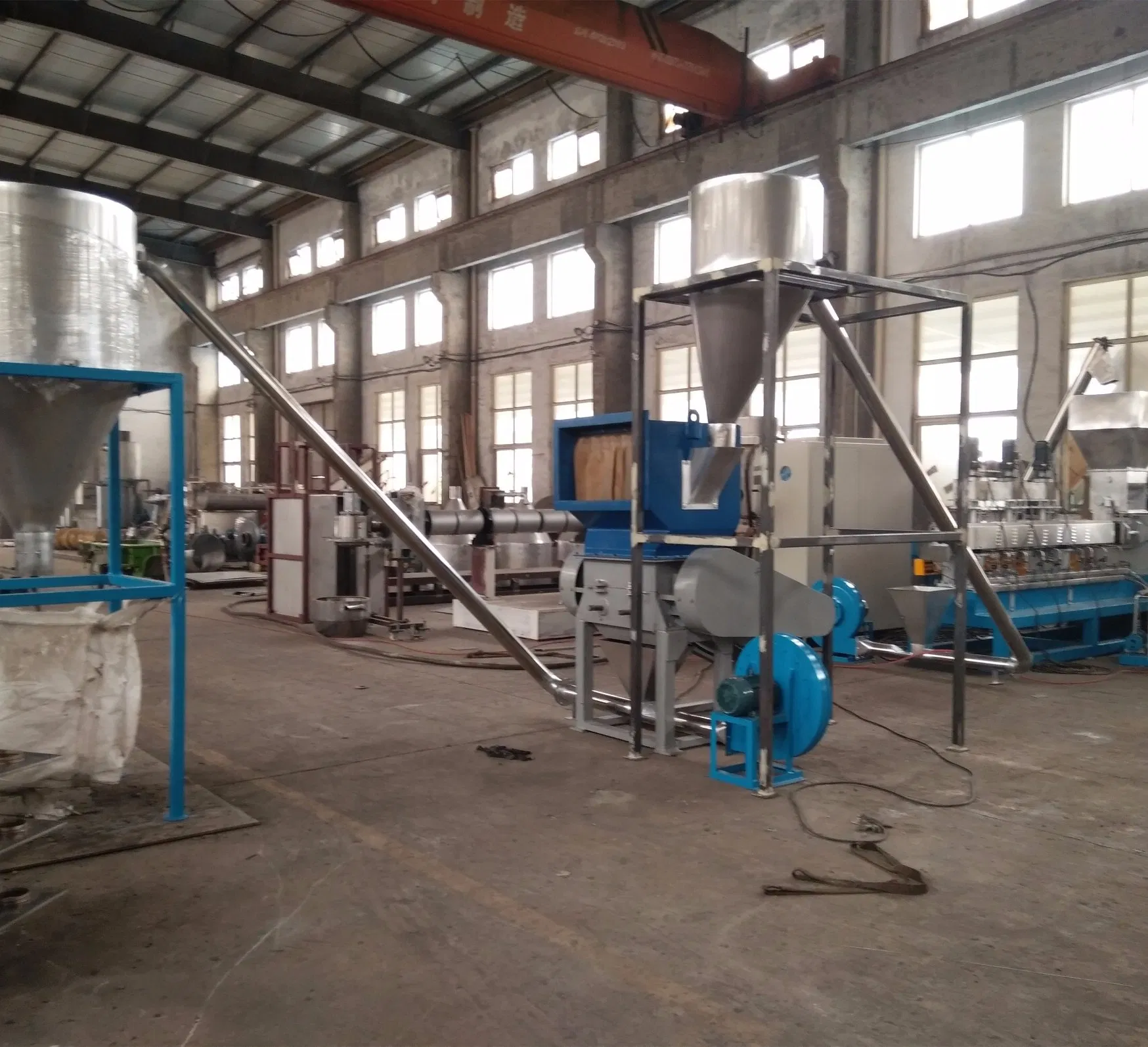

Complete production line overview

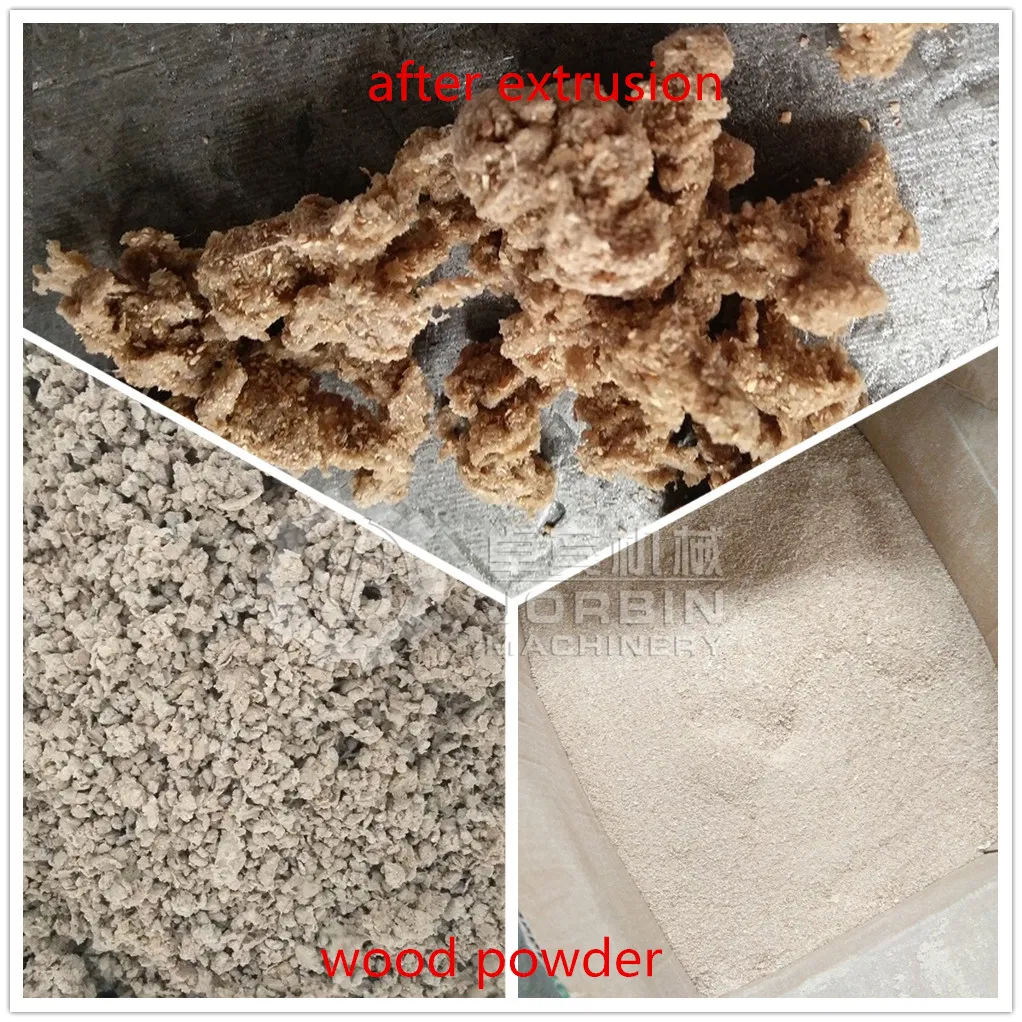

Final pellet production
Documentation & After-Sales
Supplied Documentation:
- Machine layout and installation guides
- Detailed Electricity diagrams
- Machine quality certificates
- General manual and maintenance books
Service Guarantee:
- One-year quality guarantee with full responsibility for manufacturing malfunctions.
- Rapid spare parts delivery via DHL within 7 working days.
- Available technician visits for maintenance and long-term support.
Frequently Asked Questions
What is the production capacity of the TSSK75 machine?
The machine offers a stable capacity of 200kg/h to 300kg/h, depending on the material composition.
What materials are the screw and barrel made of?
We use high-quality 38CrMoAl with Nitrogen treatment or Bimetallic options for enhanced durability and wear resistance.
How does the degassing system improve pellet quality?
It features a two-stage degassing system (one vacuum and one natural), which effectively removes air and moisture, resulting in dense and beautiful pellets.
What is the typical delivery time for a complete line?
Standard delivery time is 45 working days from the confirmation of the order.
What kind of after-sales support do you provide?
We provide a one-year quality guarantee, 24-hour technical response, and the option for technician visits to your factory for maintenance.
Can this machine handle recycled plastics?
Yes, it is specifically designed for crushed PP/PE bottles and crates, compounding them effectively with wood powder.
