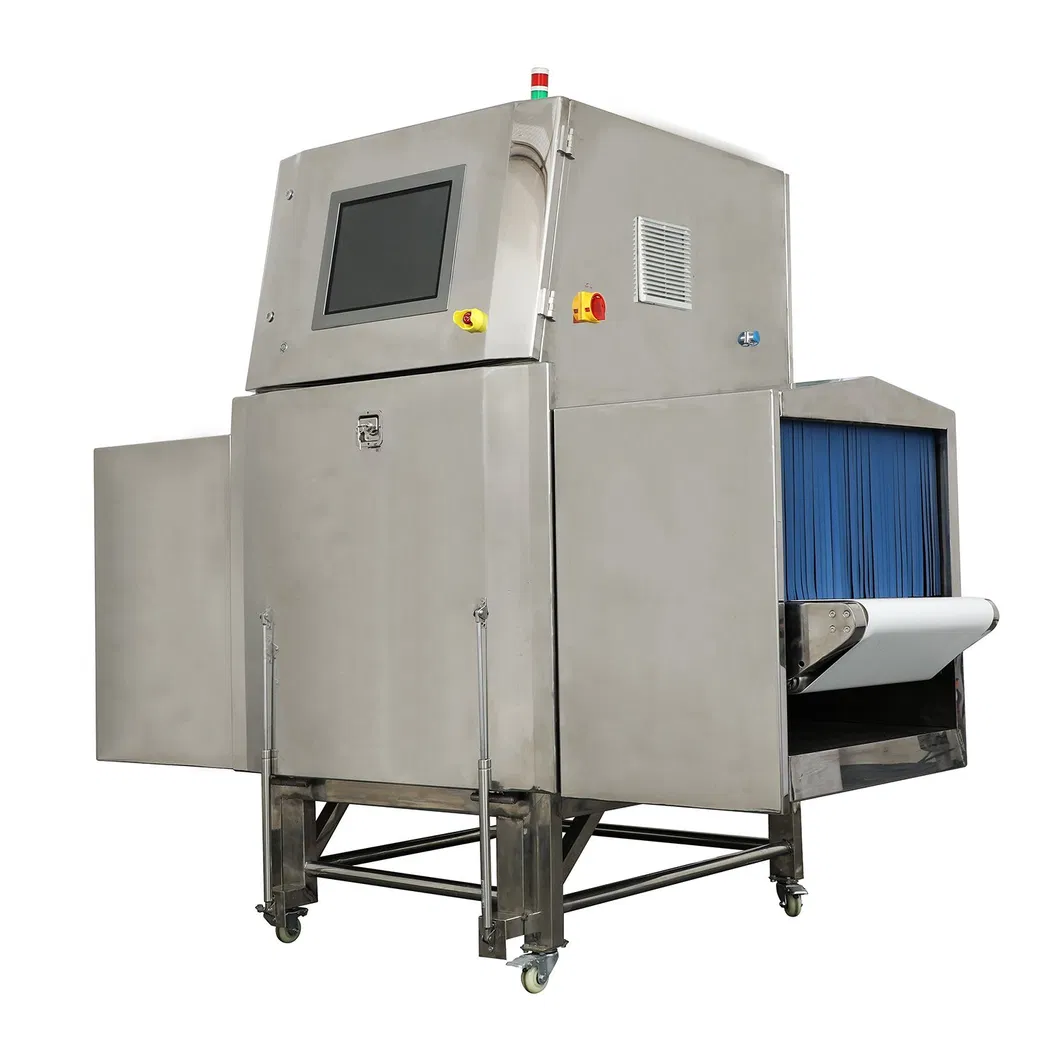

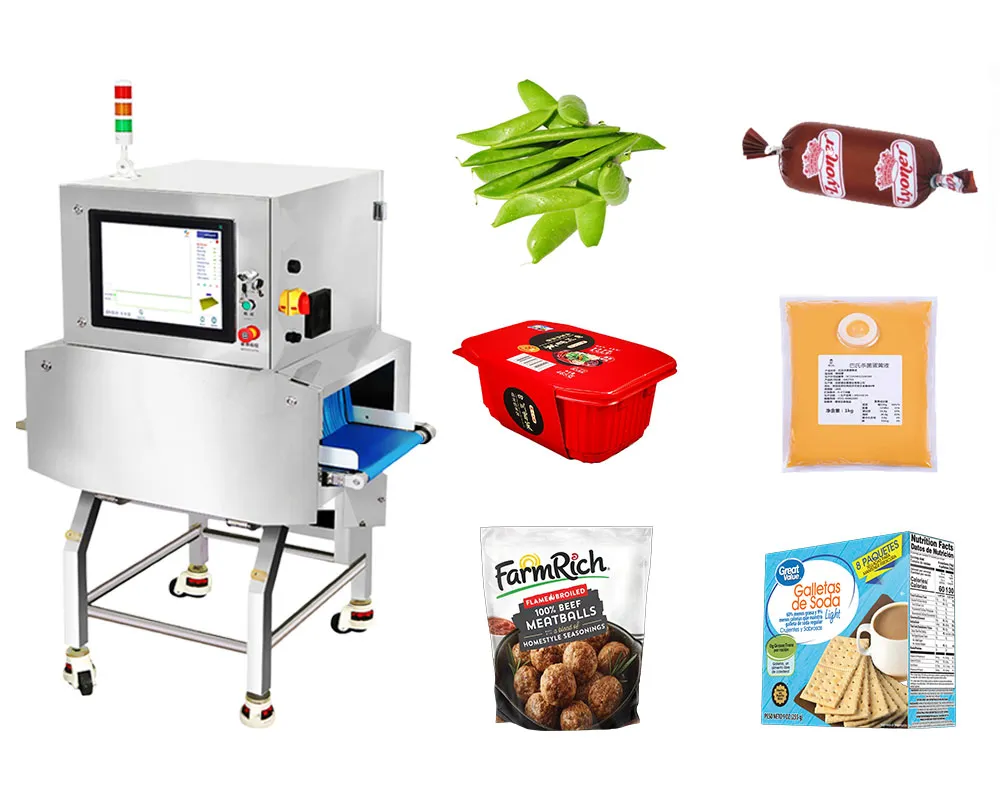

X-Ray Inspection Systems provide high cost-effective contaminants detection for food and pharmaceutical manufacturers. The system is engineered for safety, ease of use, and simple maintenance.

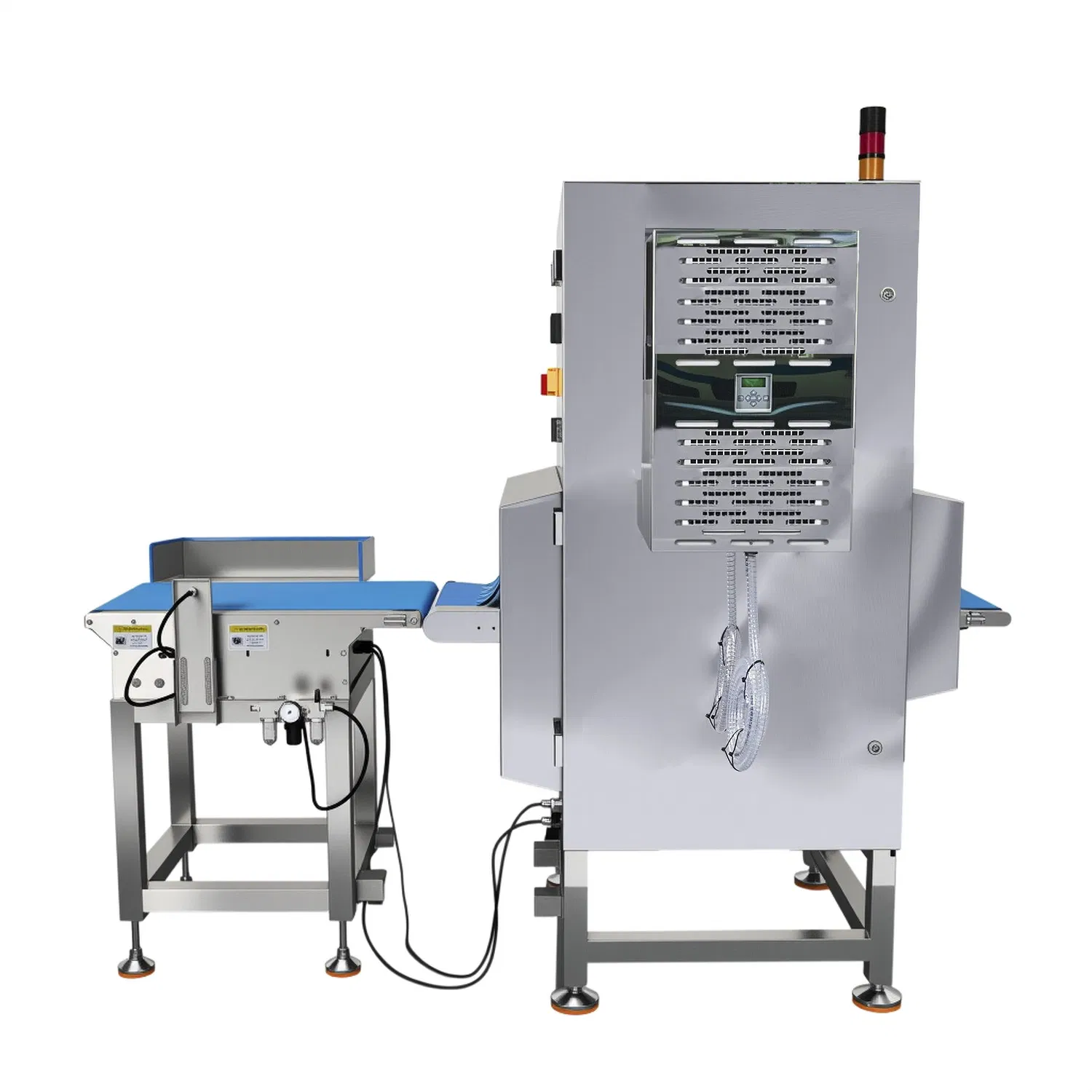

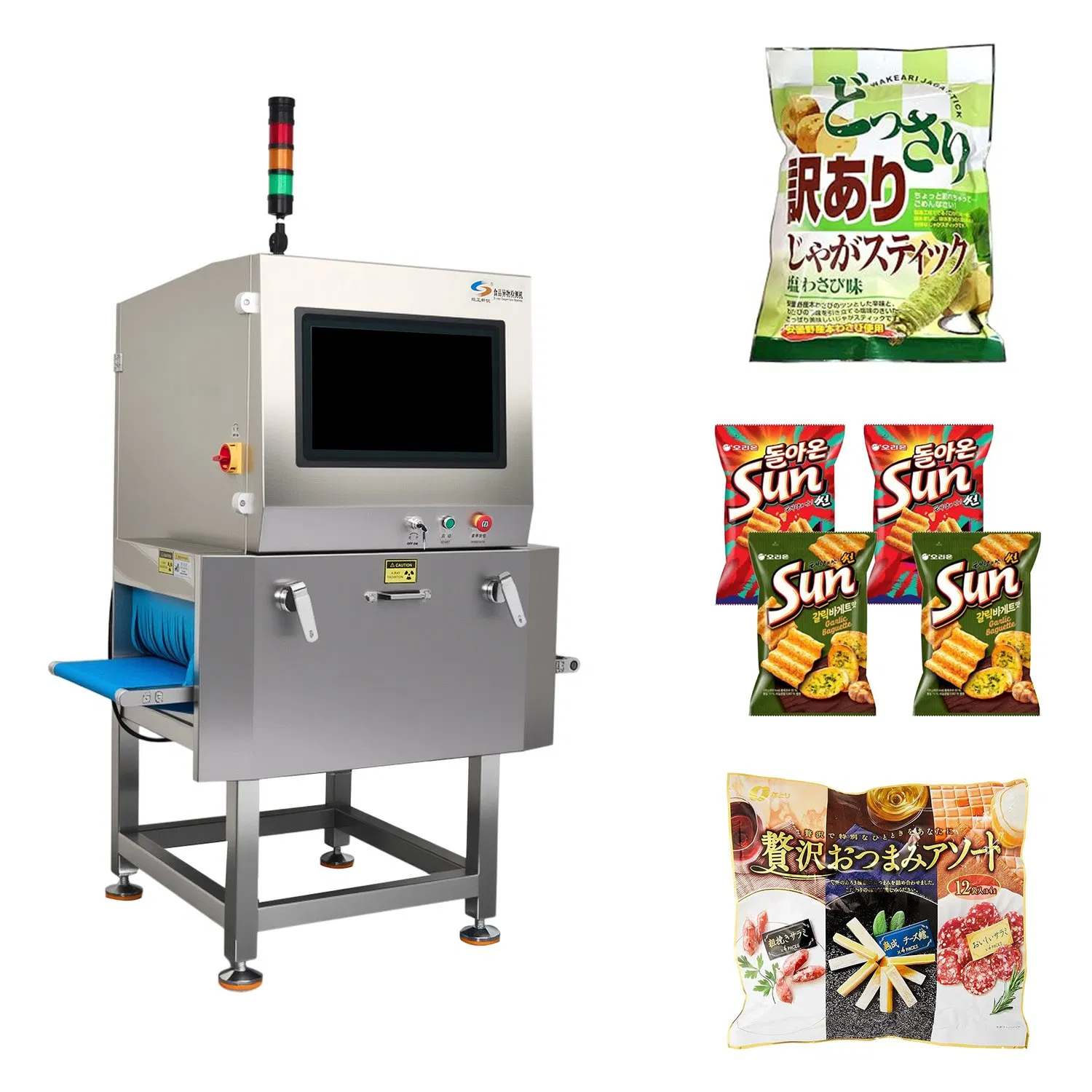

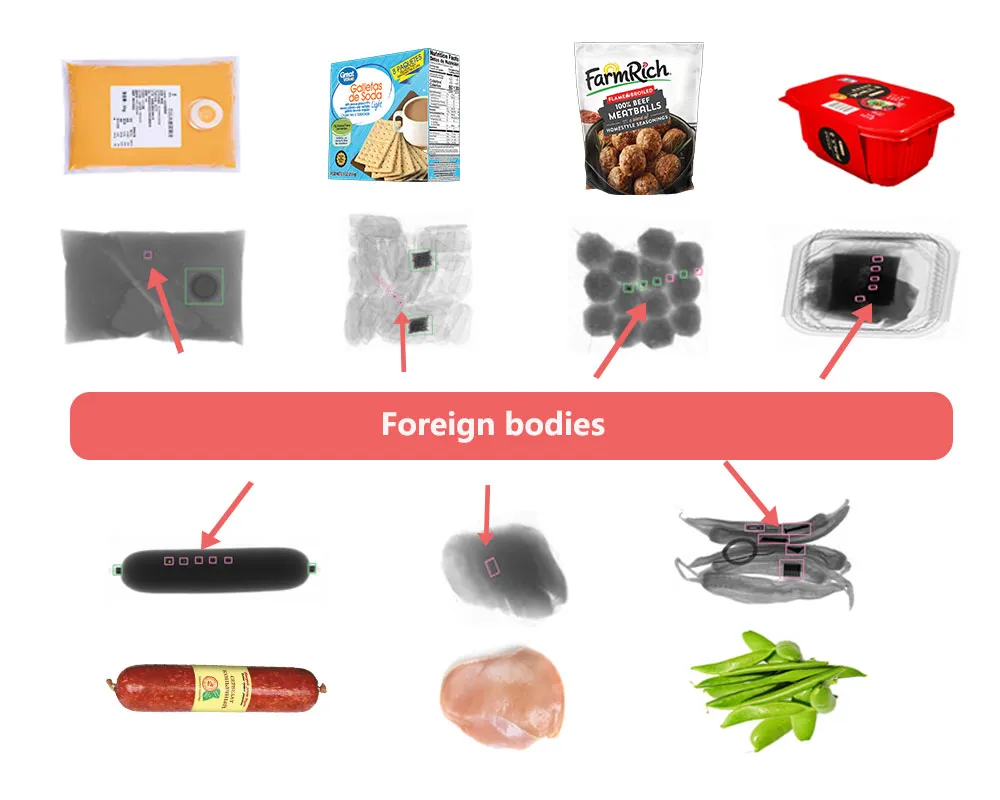

The XR-500D series is specifically designed for detecting contaminants within small packaged products. It identifies both metal and non-metal impurities, including ferrous, non-ferrous, stainless steel, glass, ceramic, stone, bones, hard rubber, and hard plastic. This capability extends even to products wrapped in aluminum foil or metallised film. Detection is based on material density—the greater the density of the foreign object, the easier it is identified, allowing for the detection of minute contaminants.
| Model | XR-500D |
| X-ray Source | Standard: 150W, 80kV / Optional: 350W, 100kV |
| Tunnel Size (W*H) | 400 * 200mm |
| Max Sensitivity | SUS: ≥Φ0.4mm, Ceramic: ≥Φ 1.0mm, Glass: ≥1.5mm |
| Conveying Speed | 10-40 m/min |
| Screen Display | 21.5 inch full color touchable screen |
| Data Interface | LAN port, USB port |
| Working Environment | Temp: -10-40ºC, Humidity: 30%-90% (No frost) |

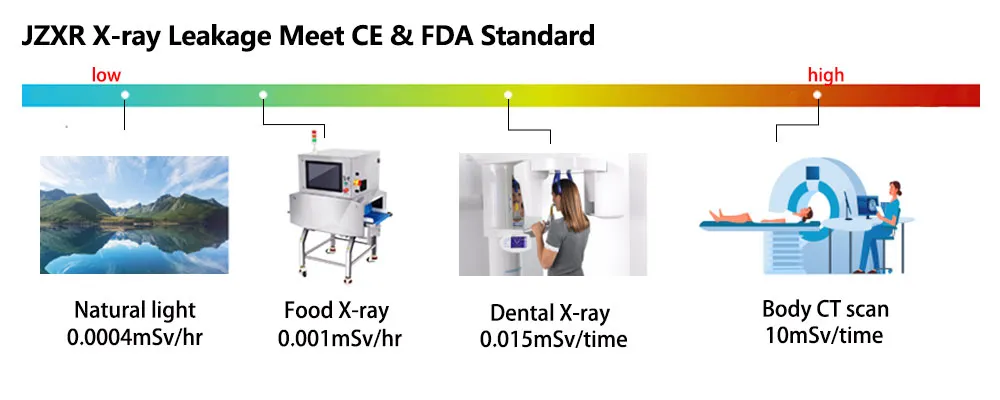

| X-ray Leakage | <1µSv/hour |

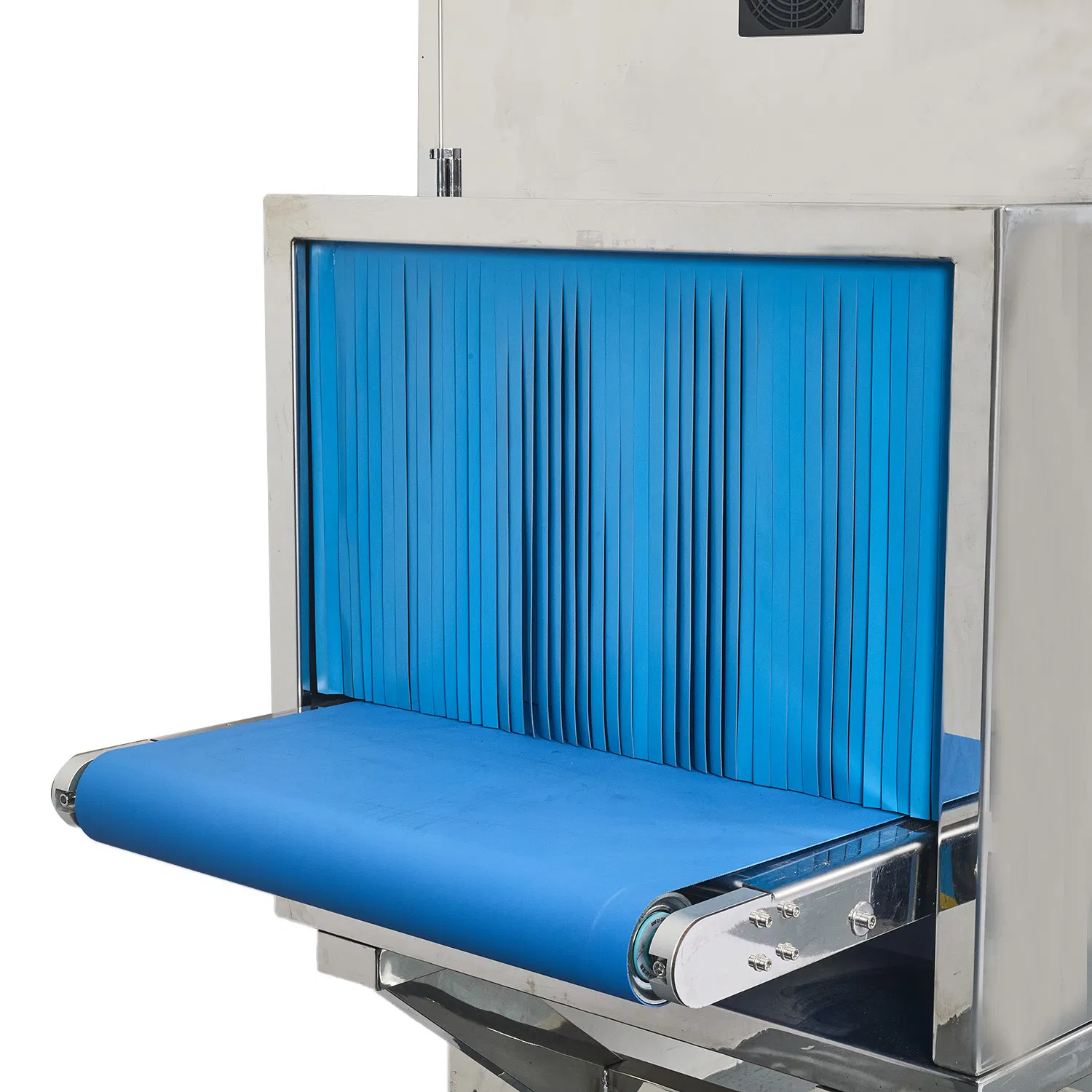

| Protective Mode | 6 layers of non-lead food grade soft curtain (removable) |
| Alarm System | Standard: Sound and light alarm; Optional: Stop / Rejection system |
| Power Supply | AC220V ±10% 50/60Hz, 1.5kVA Max |
