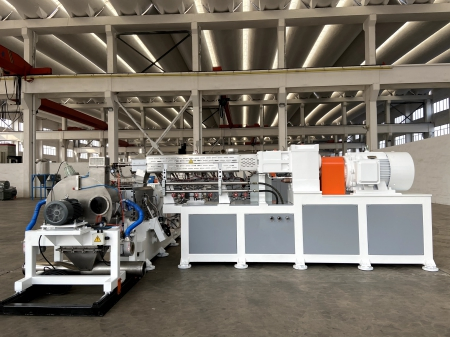

Xinda Plastic/Rubber Twin Screw Extruder/Granulator/Pelletizer Machine Wood Pellet Machine
Xinda Plastic/Rubber Twin Screw Extruder/Granulator/Pelletizer Machine Wood Pellet Machine
Xinda Plastic/Rubber Twin Screw Extruder/Granulator/Pelletizer Machine Wood Pellet Machine
Xinda Plastic/Rubber Twin Screw Extruder/Granulator/Pelletizer Machine Wood Pellet Machine
Xinda Plastic/Rubber Twin Screw Extruder/Granulator/Pelletizer Machine Wood Pellet Machine
1 / 5
Xinda Plastic/Rubber Twin Screw Extruder/Granulator/Pelletizer Machine Wood Pellet Machine
Xinda Plastic/Rubber Twin Screw Extruder/Granulator/Pelletizer Machine Wood Pellet Machine
Xinda Plastic/Rubber Twin Screw Extruder/Granulator/Pelletizer Machine Wood Pellet Machine
Xinda Plastic/Rubber Twin Screw Extruder/Granulator/Pelletizer Machine Wood Pellet Machine
Xinda Plastic/Rubber Twin Screw Extruder/Granulator/Pelletizer Machine Wood Pellet Machine

Xinda Plastic/Rubber Twin Screw Extruder/Granulator/Pelletizer Machine Wood Pellet Machine

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Information
Model NO.
PSHJ-75
Raw Material
Mixing
Screw
Double-Screw
Inverter
Inverter
Automation
Automatic
Certification
CE, ISO9001:2008, QS
Condition
New
Capacity
800-1500 Kg/H
Applications
All Kinds of Polymer Mixing
Electric Brands
Siemens / Schneider
Control
PLC + Touch Screen
Production Capacity
200 sets/Year
🔍 Product Description
Twin Screw Extruder Overview

Clamshell Barrel Co-Rotating twin screw extruder for Master batch Compounding

  • Masterbatch is a concentrated mixture of pigments and/or additives encapsulated during a heat process into a carrier resin which is then cooled and cut into a granular shape.
  • The co-rotating twin screw extruder will melt, mix, and knead the dry blend of resin carrier and pigments and additives, pelletizing them into perfect master batch pellets by water strand pelletizing.
  • The clamshell barrel co-rotating twin screw extruder can be opened for cleaning, checking, and maintenance. It is ideal for color changing for Master batch compounding.

Clamshell Barrel Co-rotating Twin Screw Extruder for Master batch

The barrel can be opened in minutes. This makes product changeover, maintenance and research fast and easy. Both screws and barrels are designed using the building block principle. The screw configuration, barrel setup, feeding and venting, screen changing, way of pelletizing and process requirements are all optimized for the machine's versatility in general applications.

Detail 1 Detail 2 Detail 3
⚙ Product Parameters
Model PSHJ-20 PSHJ-35 PSHJ-50 PSHJ-65 PSHJ-75 PSHJ-127
Screw Diameter (MM) 21.7 35.6 50.5 62.4 71 126
Central Distance 18 30 42 52 60 102
L/D Ratio 28-52 28-52 28-52 28-52 28-52 28-52
Main Motor Power (kW) 4-5.5 22-45 75-110 110-185 160-280 90-160
Max. Screw Speed (RPM) 600 600 600 600 600 600
Torque per Shaft (N.m) 32-43 175-358 597-875 875-1472 1273-2228 850-1528
Reference Output (KG/HR) 2-15 20-80 80-200 150-350 300-600 800-1500
📷 Machine Components & Details
Parameter Header Image

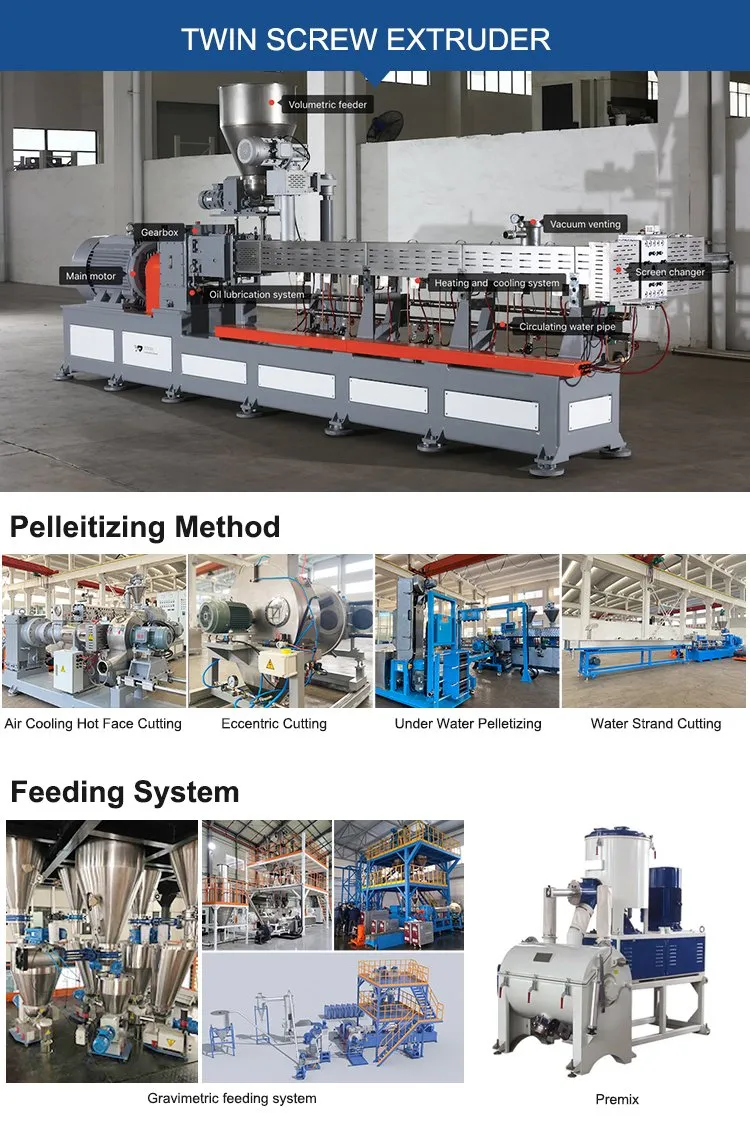

Structural View 1 Structural View 2
Detailed Component View

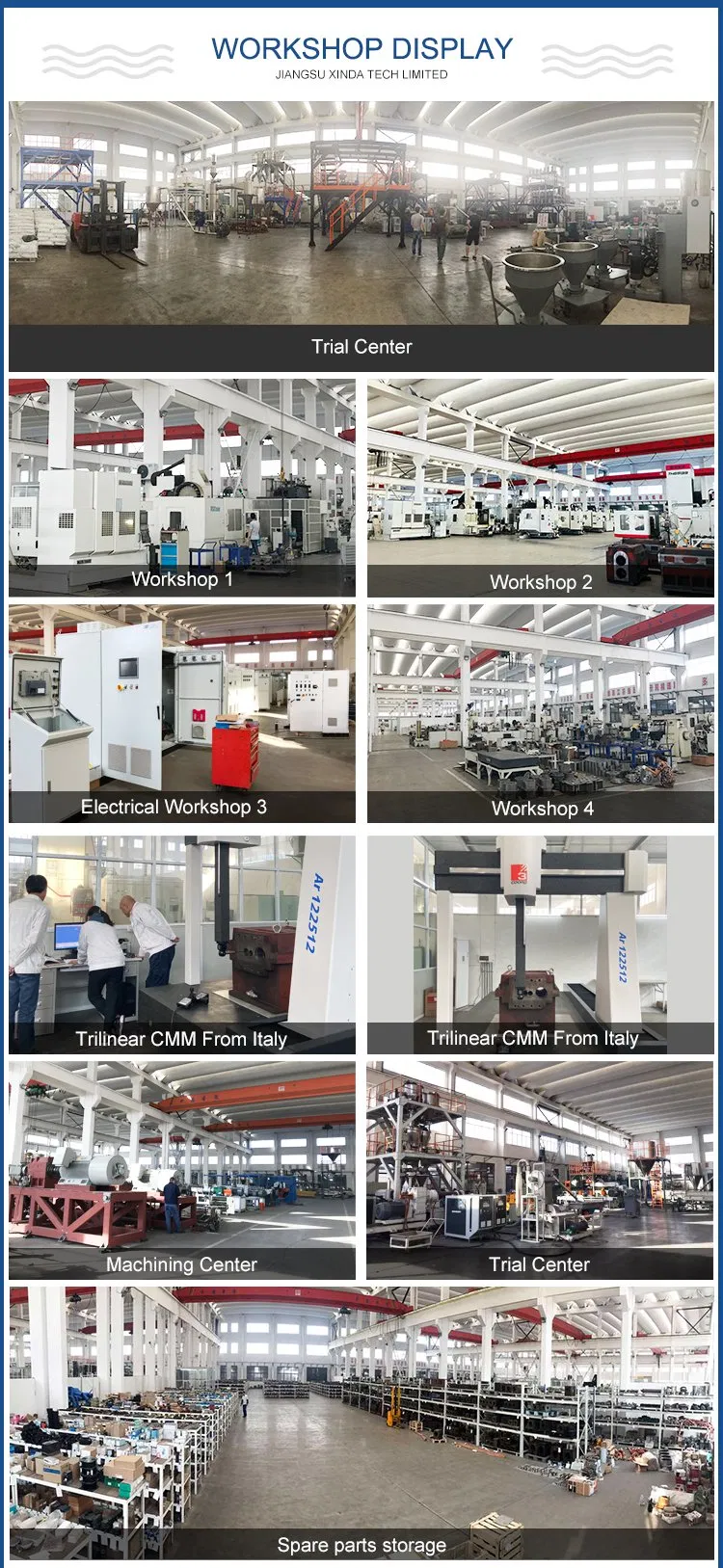

Assembly View Final Product View
Full System Layout
❓ Frequently Asked Questions
What are the advantages of a Clamshell Barrel?
The clamshell barrel can be opened in minutes, which allows for extremely fast cleaning, visual inspection of the processing state, and easy maintenance. This is particularly beneficial for production lines with frequent color or material changes.
What materials are suitable for the PSHJ series extruders?
These machines are designed for all kinds of polymer mixing, especially for masterbatch compounding where concentrated pigments and additives are mixed into carrier resins.
Can I use this machine for laboratory research?
Yes, the PSHJ-20 model is an ideal lab-scale compounding machine. It allows you to freely build up screw geometries and check mixing status, making it perfect for SPC masterbatch R&D.
What is the production capacity range of these extruders?
The capacity depends on the model. It ranges from 2-15 kg/hr for the lab-scale model (PSHJ-20) up to 800-1500 kg/hr for the large industrial model (PSHJ-127).
What kind of control system do the machines use?
The machines are equipped with an automatic control system featuring a PLC and a Touch Screen interface for easy operation and precise parameter management.
What electrical components are used in the extruder?
We use high-quality international brands for electrical components, specifically Siemens and Schneider, to ensure reliability and global compatibility.
