| Model NO. | HDZ800 |
| Type | Hard Plastic Crusher |
| Raw Material | HDPE |
| Structure | Tangential Feed |
| Knife Classification | Claw Knife Crusher |
| Knife Roll | Solid Knife Roller |
| Automation | Automatic |
| Certification | CE, ISO9001:2008 |
| Power | 37/45kw |
| Rotor Diameter | 400/450mm |
| Rotor Width | 820mm |
| Weight | 3700kg |
| Dimensions | 2400x1800x2500mm |

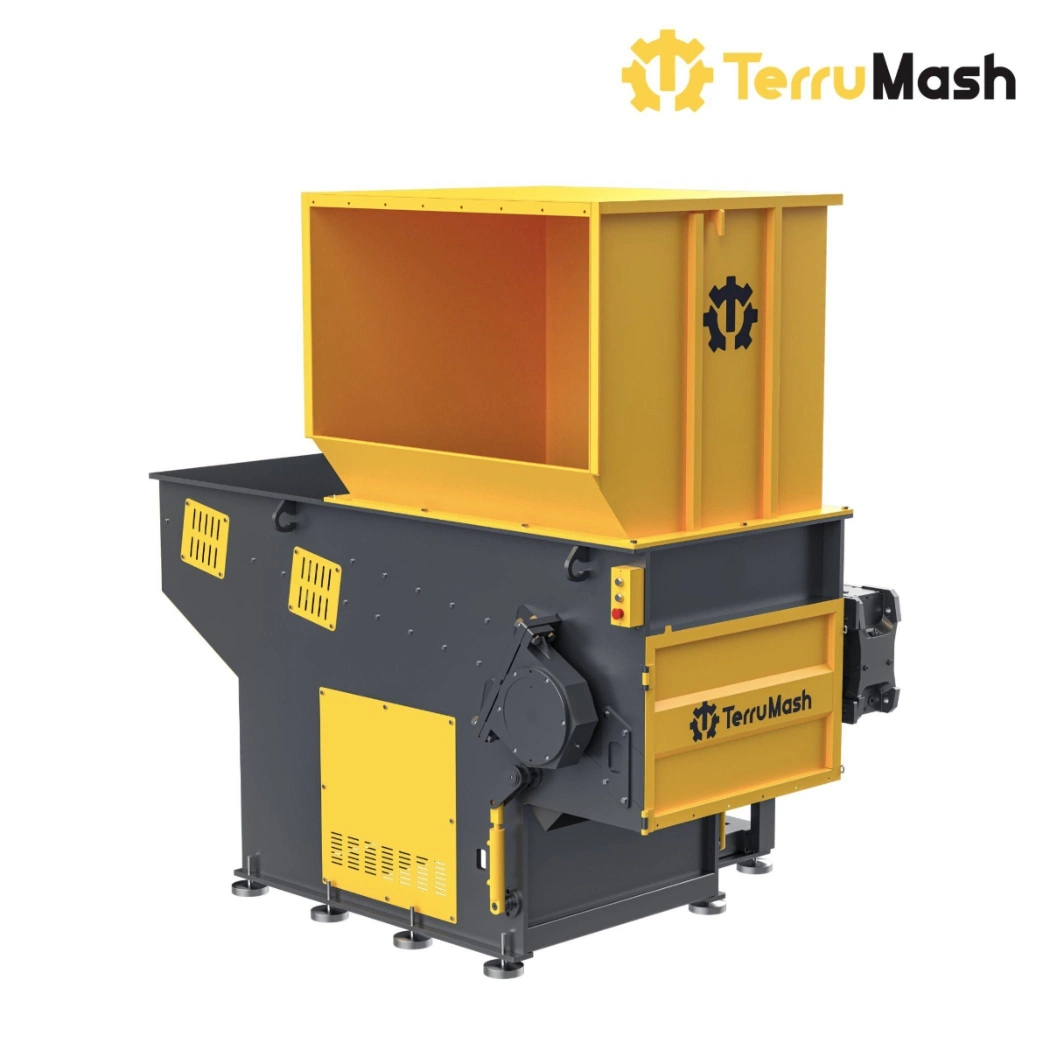

Plastic PVC HDPE Pipe Profile Shredding Machine
Single Shaft Shredder Grinder/Grinding/Crushing/Recycling Machine
| Technical Data | |
| Raw Materials | Film, woven bags, pipes, profiles, ABS, PC, and all kinds of plastics. |
| Capacity | 300-800 kg/h (depending on material condition) |
| Electric Current | 3×380V, 50Hz (Customizable) |
| Final Particle Size | >20mm (Customizable) |

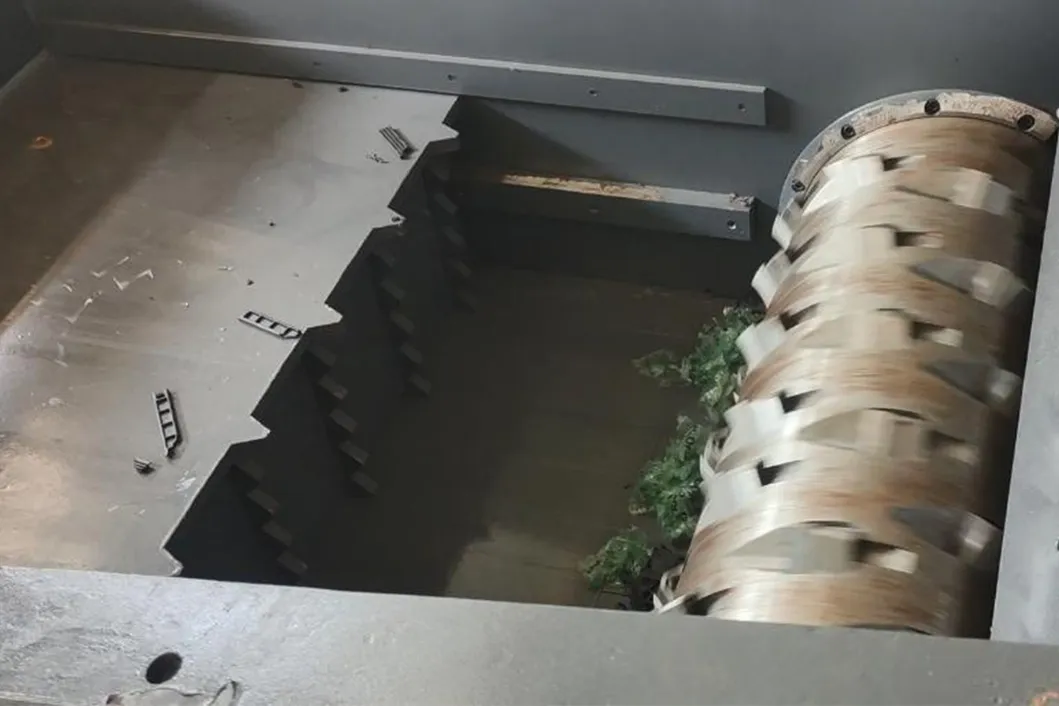

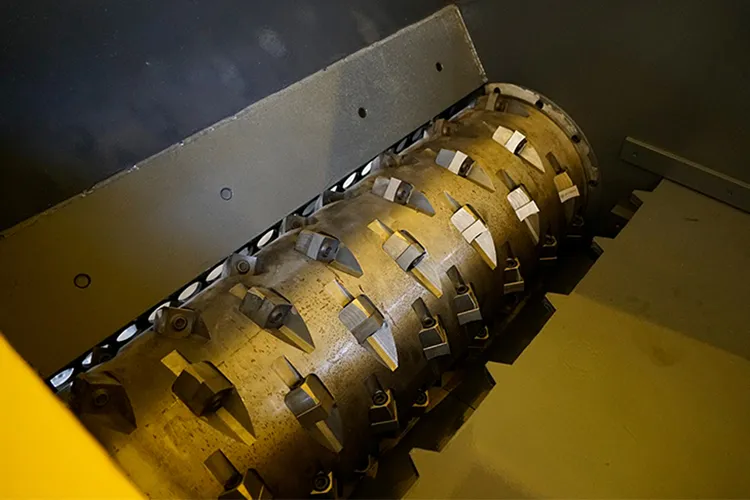

The knife adopts a V-shaped arrangement. The blade features various components and materials to choose from, and the angle can be changed multiple times. The fixed tool is adjustable, allowing for precise control of material discharge by adjusting the gap between tools.

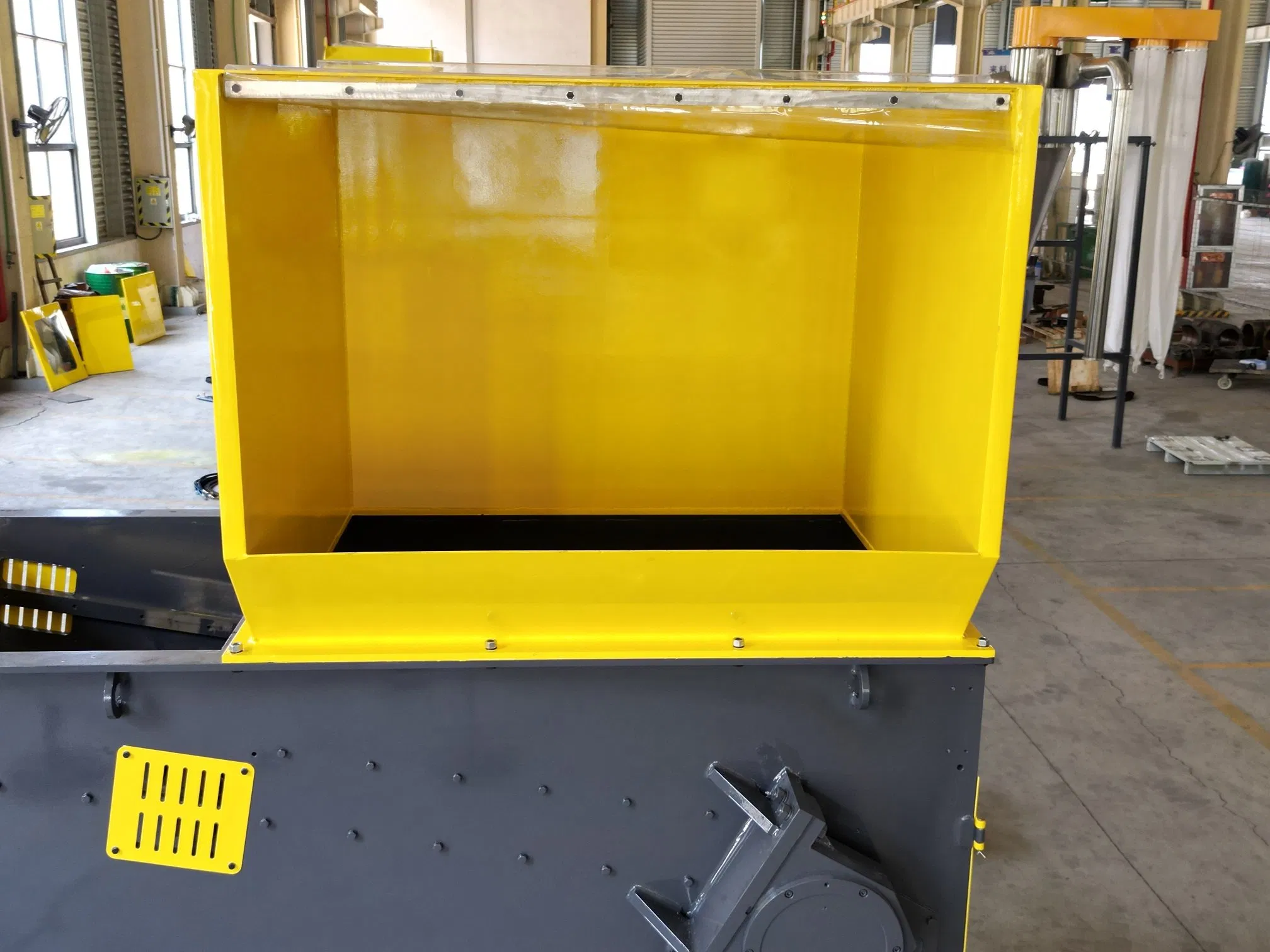

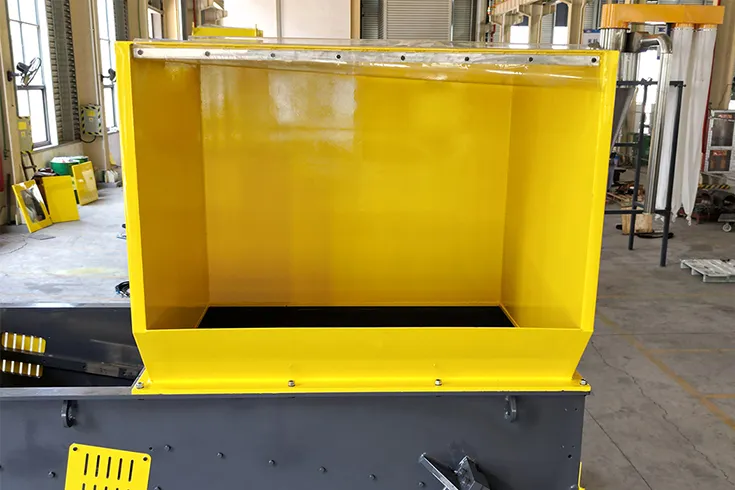

Constructed using special steel plate welding with exquisite technology. It offers superior wear resistance, corrosion resistance, low noise, and a long service life.

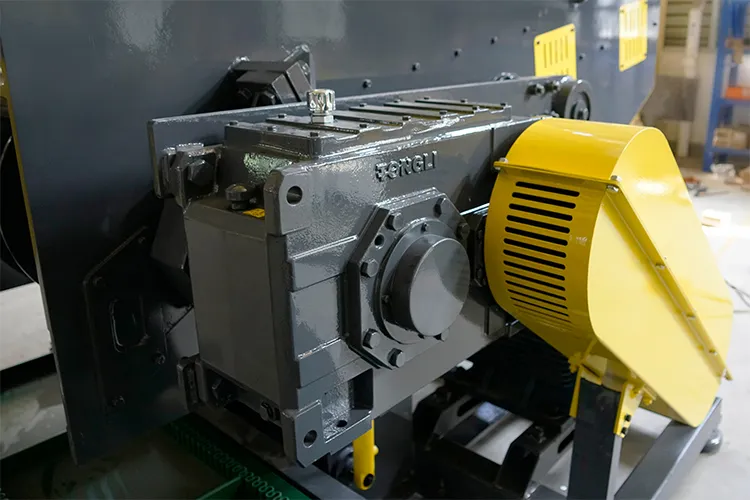

Utilizes a well-known brand gear box to ensure a high safety factor and long-term stable operation. The main shaft is lengthened with an offset bearing seat to prevent material impact on the oil seal bearing.

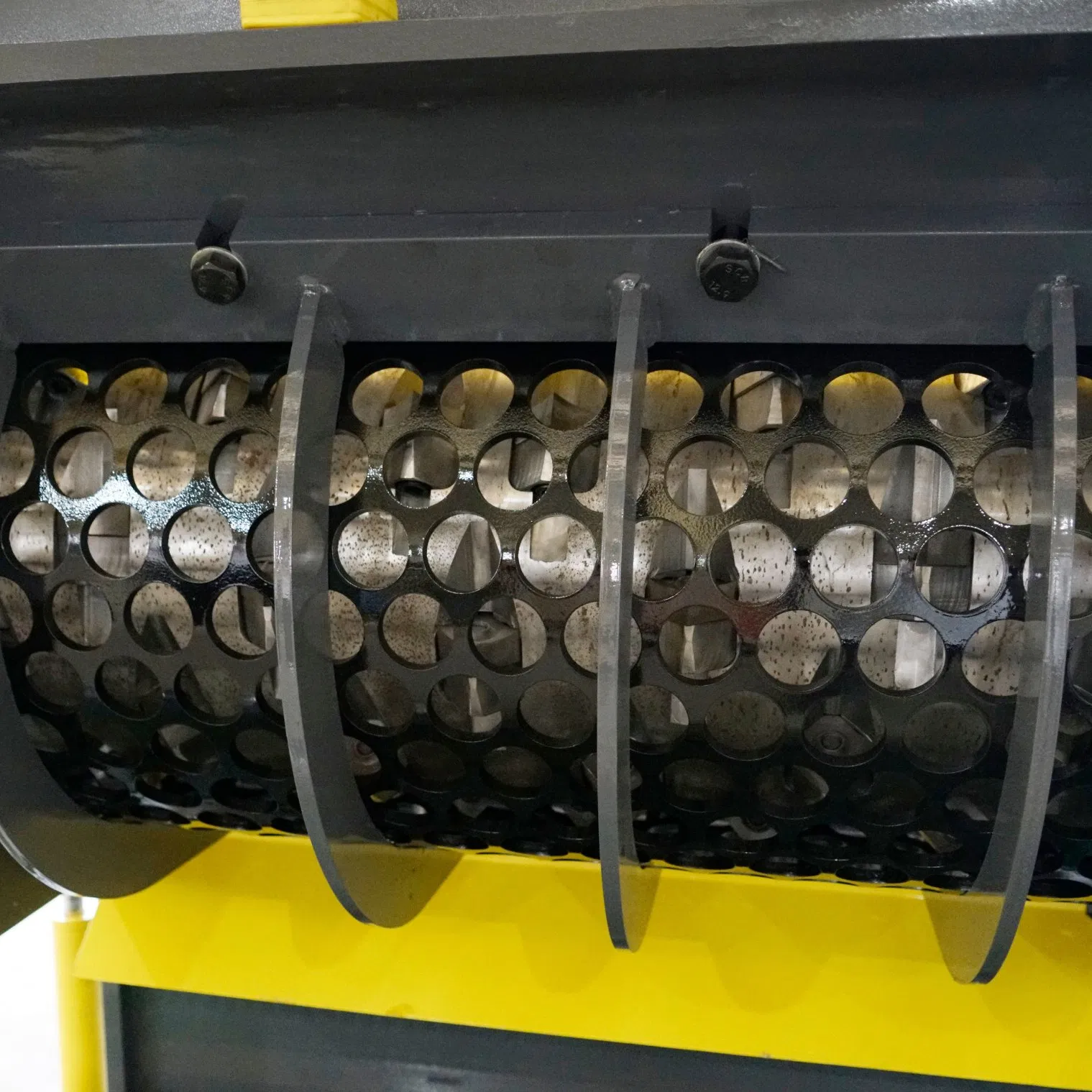

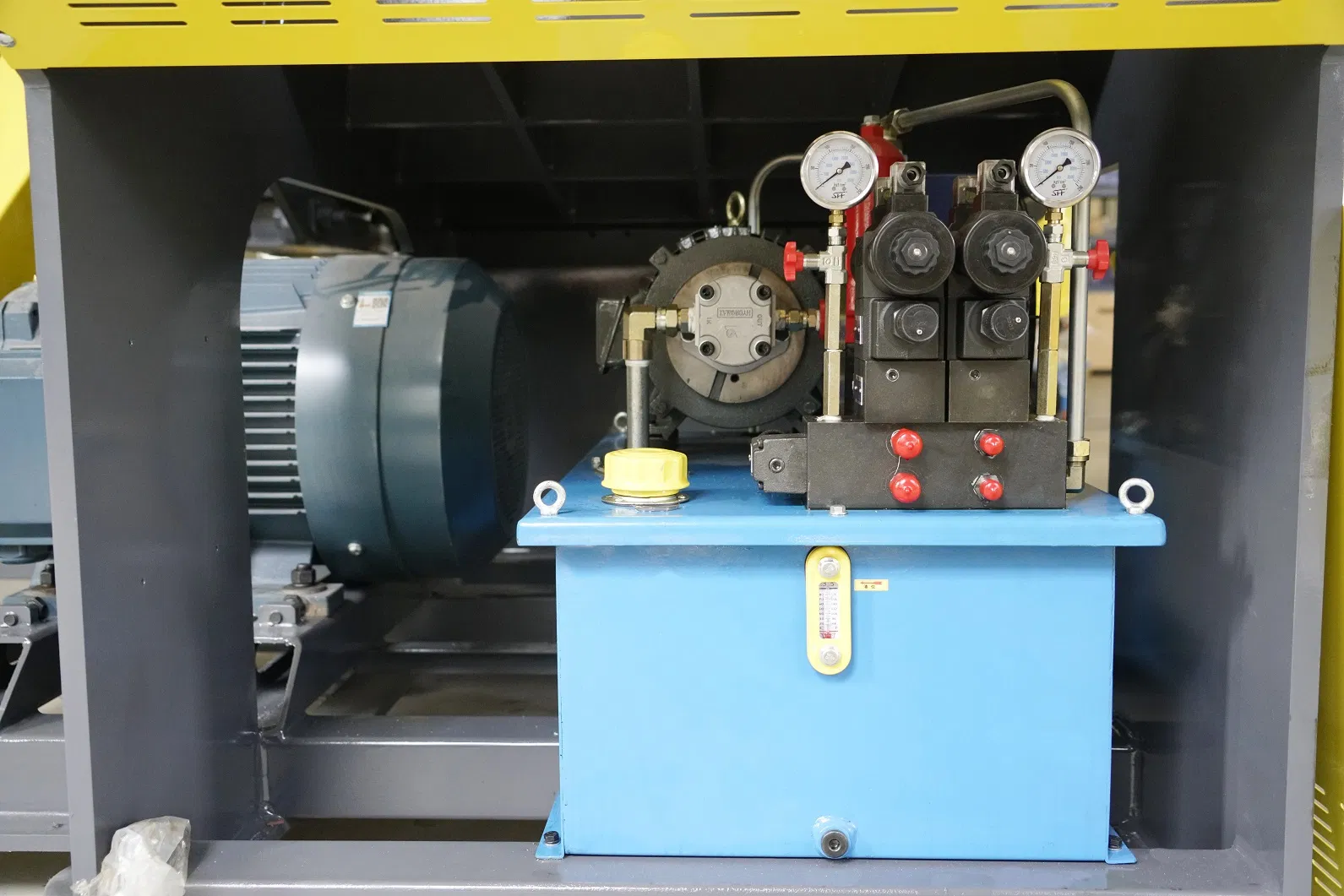

The pusher device space is precisely machined to avoid material ingress and guide rail wear. The screen can be replaced with different apertures and features a hydraulic drive for easier, safer replacement.
