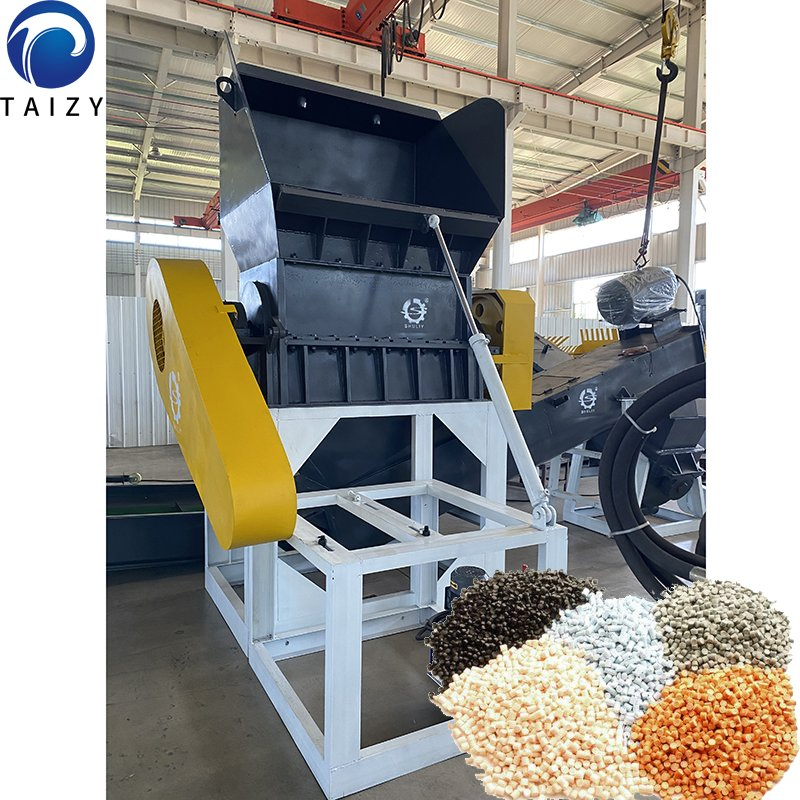

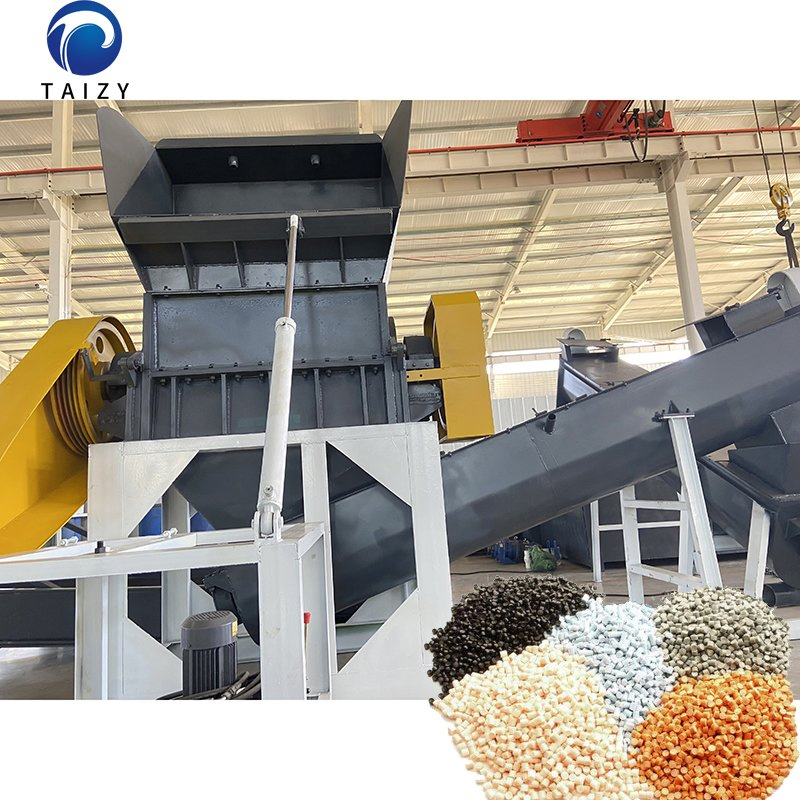

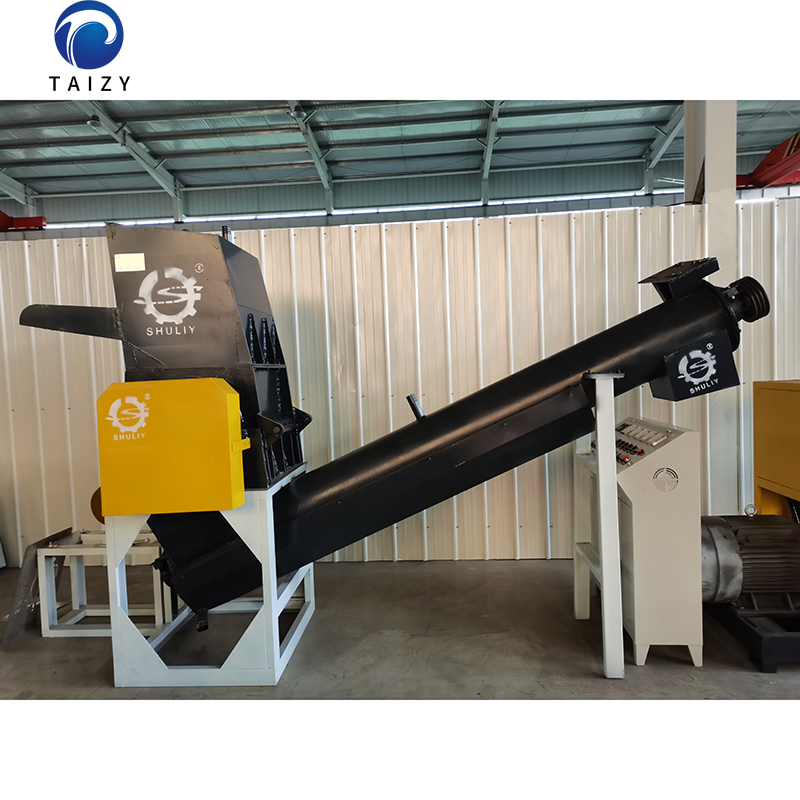

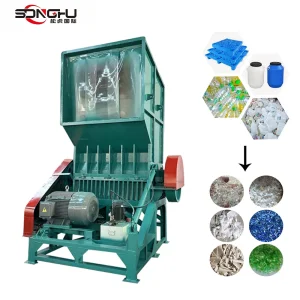

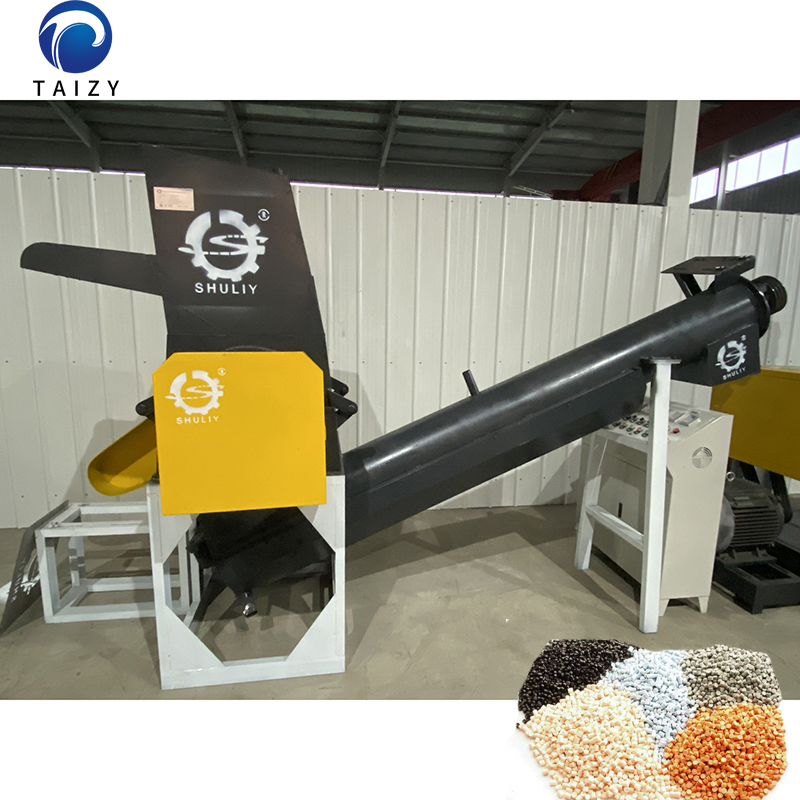

Plastic Bottle Crusher Machine for PET Recycling Industrial Shredder for Waste Plastic Bottles and Containers

Customization:	Available
After-sales Service:	1year
Warranty:	1year

i

Basic Information

Type

Hard Plastic Crusher

Raw Material

PE

Automation

Automatic

Computerized

Non-Computerized

Certification

CE

Capacity

500kg/Hr

Power

180kw

Color

Customize as Client's Request

Transport Package

Wooden Case

Production Capacity

15 sets/Month

★

Product Description

Plastic pellet cutting plastic extruder machine line for soft and hard plastic recycle

With different designs of screw, this machine can be applied to granulate the recycled material of rigid PVC, soft PVC and waste PVC. It can be stopless in the course of production. It uses pneumatic conversion and strong wind blowing. At the same time can adjust stainless steel storage container and can run at high speed for a long time while extrude stably. The production of this machine is quite high, making it necessary equipment for manufacturers.

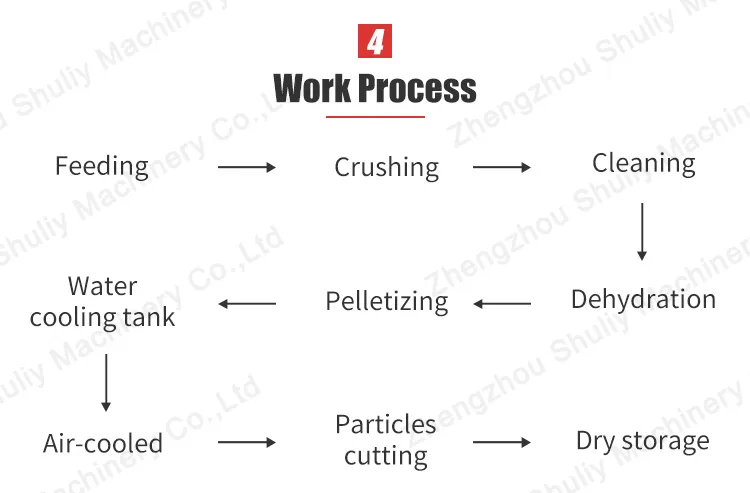

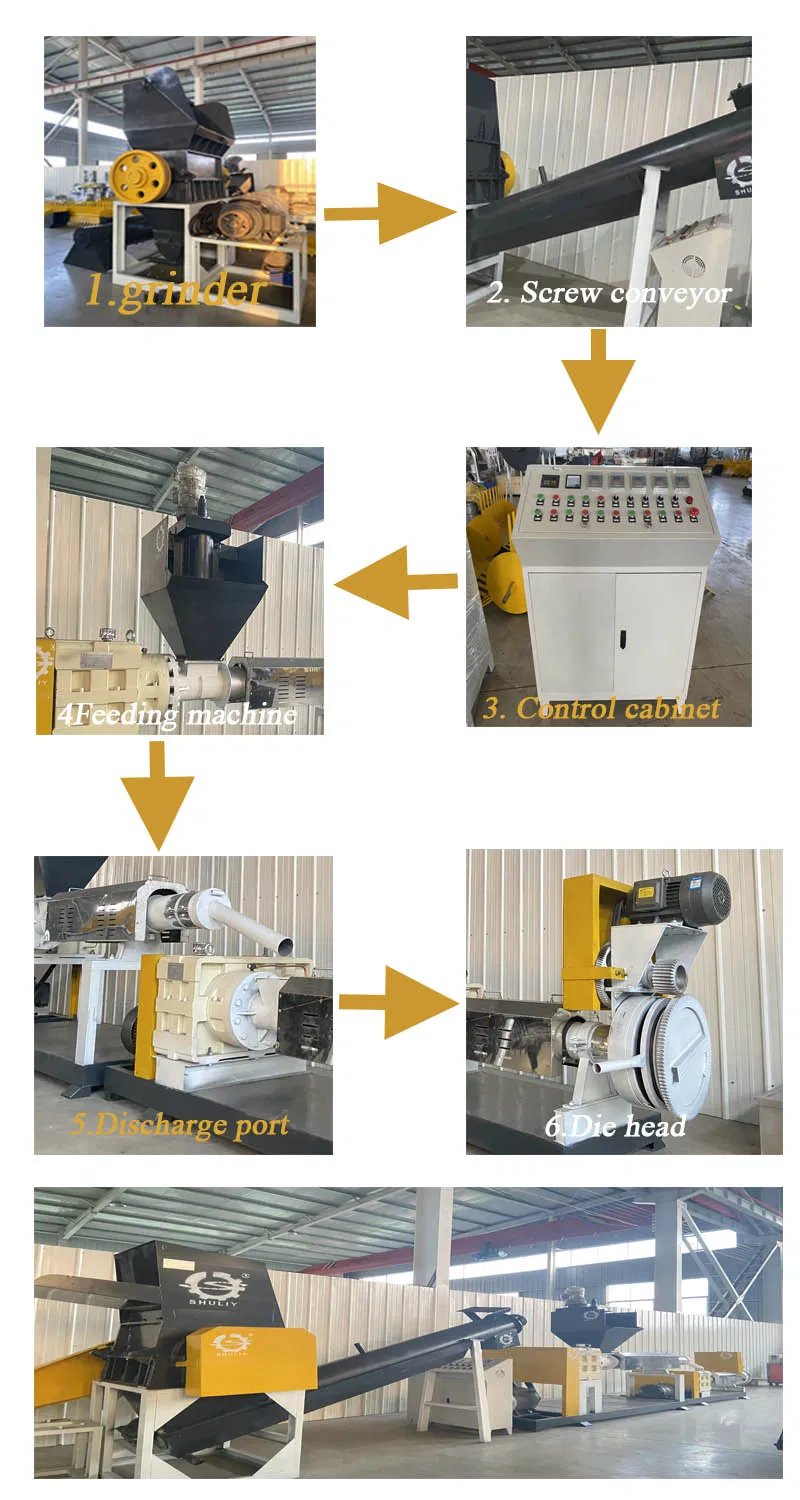

Process Procedure:

Crushing and washing machine → Dewatering machine → Plastic pellet machine → Cooling machine → Cutting machine

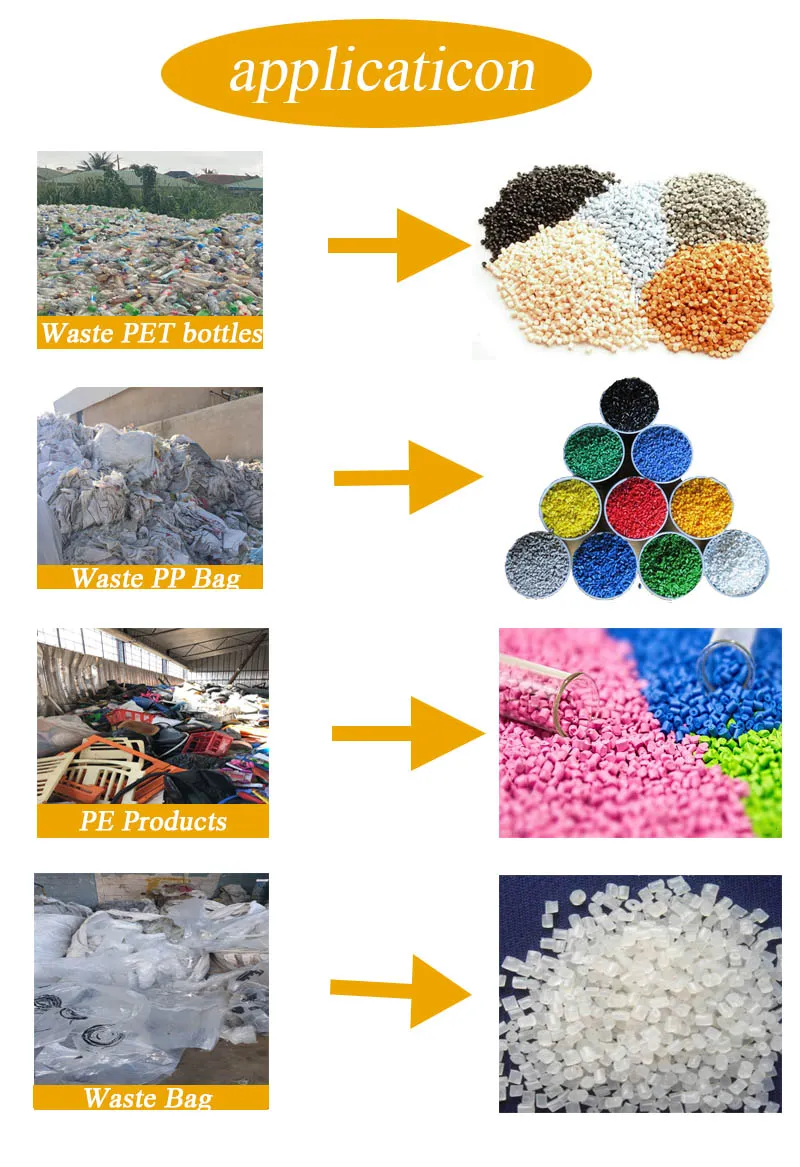

Final Product Applications:

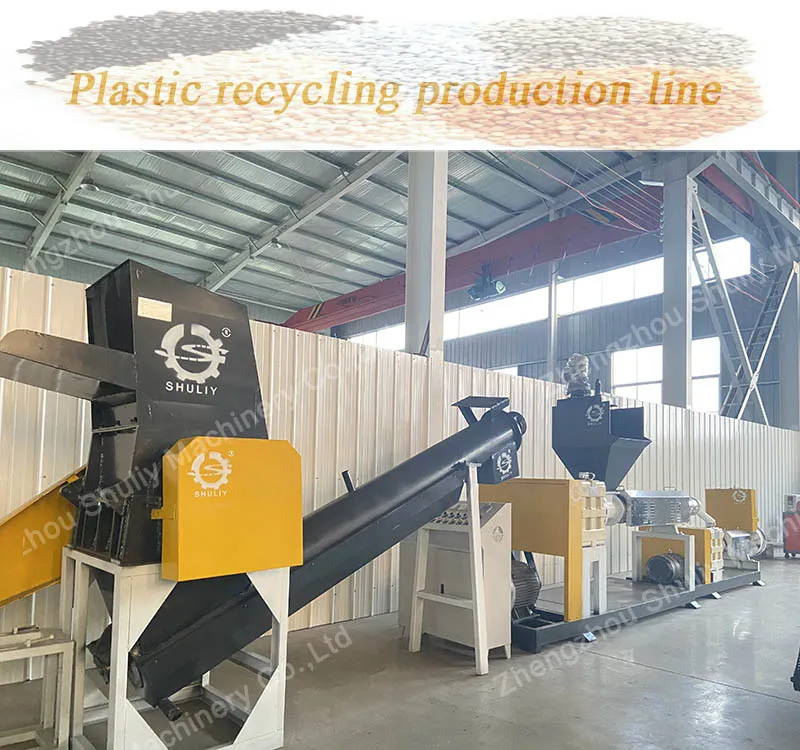

The plastic granulating unit is a recyclable type for the professional treatment of PP/PE, LDPE, HDPE, ABS, PVC, etc. It serves as environmental protection equipment, turning woven bags, plastic films, and agricultural bags into secondary processing materials for furniture and daily necessities manufacturing.

1

Belt conveyor: Transfer the raw material to the crusher for crushing and washing.

2

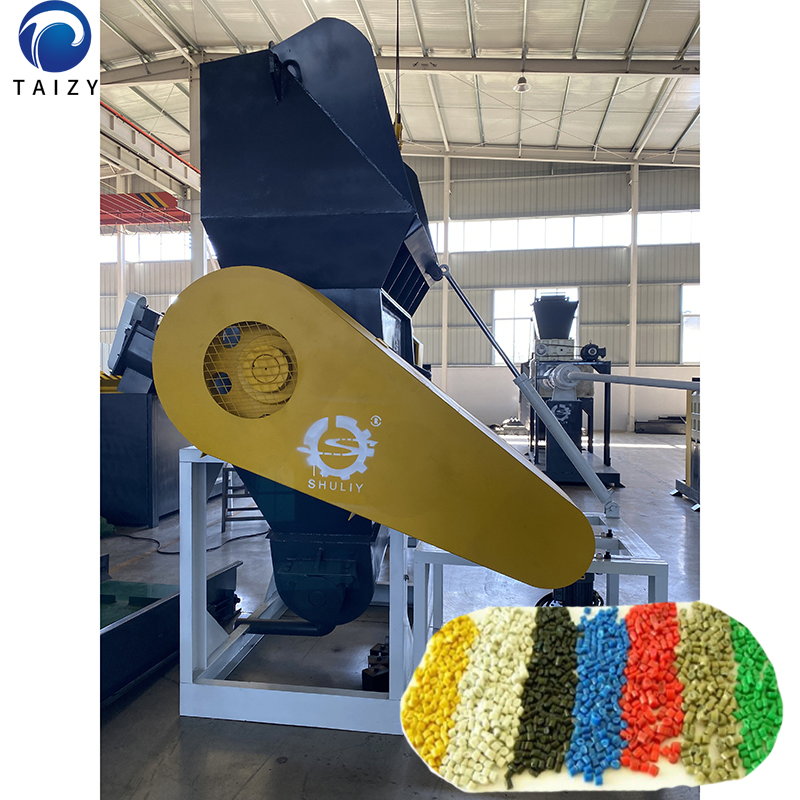

Crushing and washing machine: Crushes waste plastic into small pieces and washes them.

3

Conveyor: Delivery of crushed raw material to the pool cleaning.

4

Pool: Clean the crushed raw material and precipitate impurities.

5

Pool pulley: Slide the crushed raw material of the pool to reach the other end.

6

Dewatering machine: Removes water from the broken plastic.

7

Automatic feeder: Connects with pellet making machine to replace artificial pressure.

8

Host pellet making machine: The raw material is heated and melted.

9

Second pellet making machine: Melted plastic is drawn through the die.

10

Water tank: Used to cool the plastic strips.

11

Plastic cutting machine: Cuts the plastic strips into adjustable small pellets.

12

Plastic pellet packing: Final product bagging.

13

Control cabinet: Manages temperature and operation safety.

⚙

Technical Parameters

NO.	Item	Technical Data
1	Conveyor	Power: 3kw; Size: 5m x 0.8m; Capacity: 1000-1200kg/h
2	PP PE Crusher	Model: 1000; Power: 37kw+11kw; Capacity: 1000kg/h
3	Belt Conveyor	Power: 1.5kw; Size: 4m x 0.6m; Capacity: 800-1200kg/h
4	Automatic Feeder	Power: 3kw; Capacity: 800-1200kg/h
5	Main Pelleting Machine	Model: SL-260; Screw: 260mm x 3.6m; Motor: 110kw
6	Vice Pelleting Machine	Model: SL-220; Screw: 220mm x 1.6m; Motor: 22+18.5kw
7	Pellet Cutting Machine	Model: LY-F300; Power: 7.5kw; Capacity: 800kg/h
8	Baging Machine	Power: 1.5kw; Size: 100012001100mm
