Plastic Hard Lumps and HDPE Pipe Single Shaft Shredder Crusher Machine

1 / 5

Plastic Hard Lumps and HDPE Pipe Single Shaft Shredder Crusher Machine

Customization:	Available
Warranty:	1 Year
Type:	Powerful Plastic shredders

Send Inquiry

Product Description

Basic Specification

Model NO.

PNDS Shredder Crusher Machine

Raw Material

Plastic Pipe

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

Color

Optional

Capacity

100-3000kg/H

HS Code

84778000

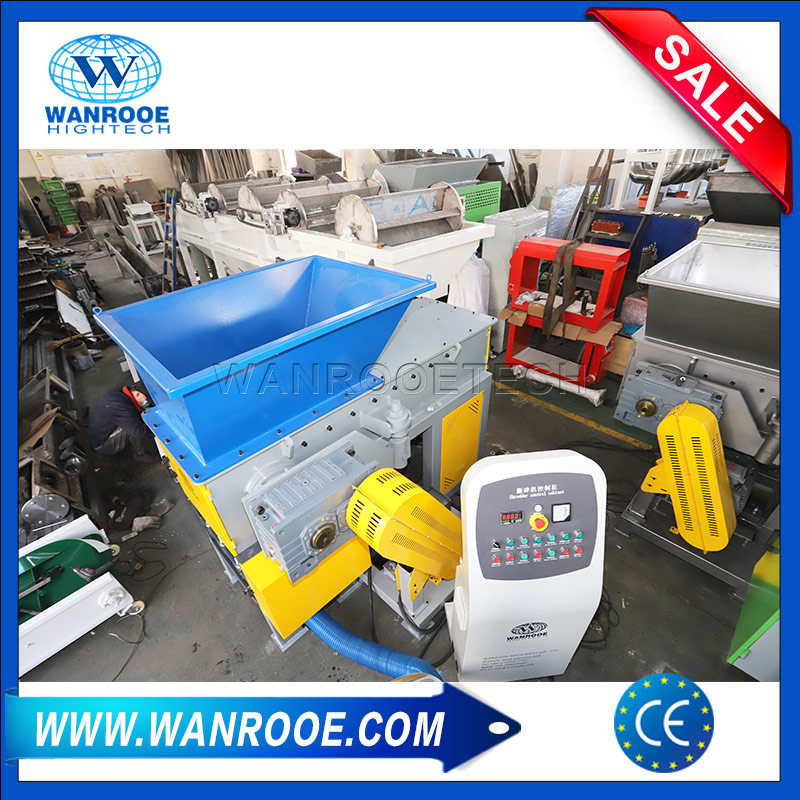

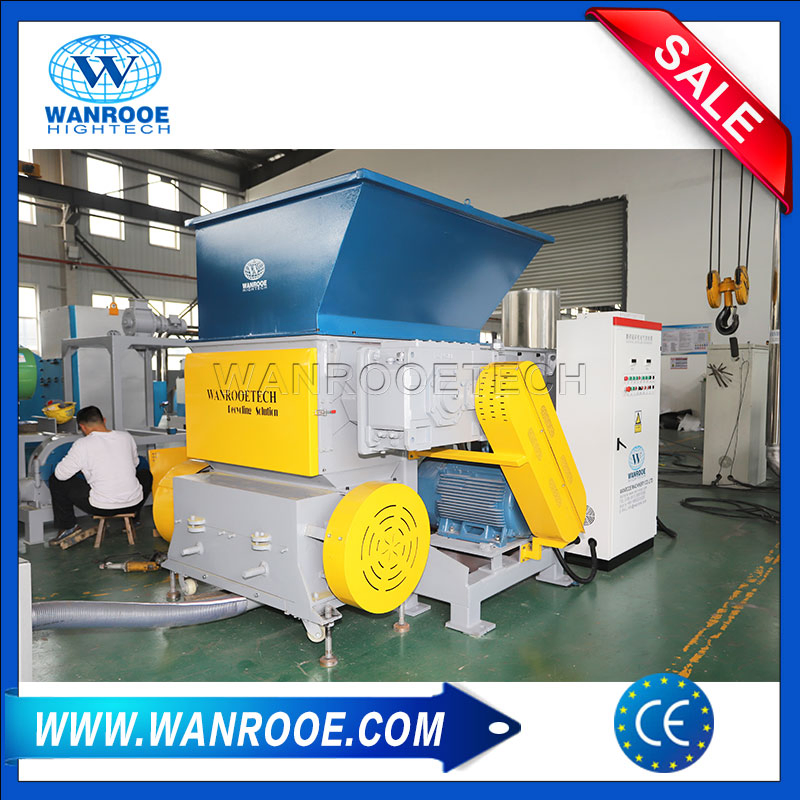

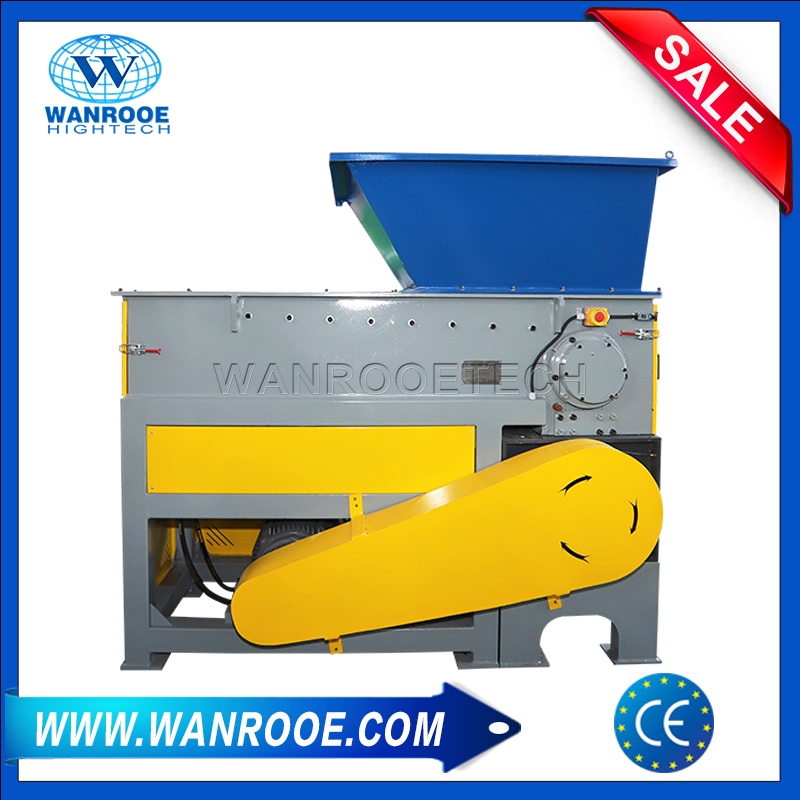

Plastic Hard Lumps and HDPE Pipe Single Shaft Shredder Crusher Machine

Application Areas

The single shaft plastic shredder machine is mainly used in all kinds of hollow or solid plastic material. It is highly suitable for processing PE, PP, PET, ABS, PVC, and various engineering plastics.

Commonly Recycled Plastics Include:

ABS, PVC, HDPE, LDPE, PET, PP, Epoxy, Purgings, Film, Big Bags, Bottles, Containers, Glass Fiber, Pipes, Ropes, and more.

Product Description

The high-performance Industrial Waste Shredder Machine from the PNDS series is designed to shred paper and corrugated cardboard waste efficiently. It provides the perfect solution for the paper industry and corrugated cardboard processing by handling large sheets for recycling waste paper.

Featuring three slow-moving shafts, this machine reliably shreds materials using the tear/cutting principle. This robust construction minimizes wear and tear, reducing maintenance requirements compared to standard granulators, making it ideal for continuous industrial use.

Key Features

Combined frame made of extra-thick plates with a hexagon prism power slewing axis.
PLC control system featuring automatic overload protection and auto-reverse switch.

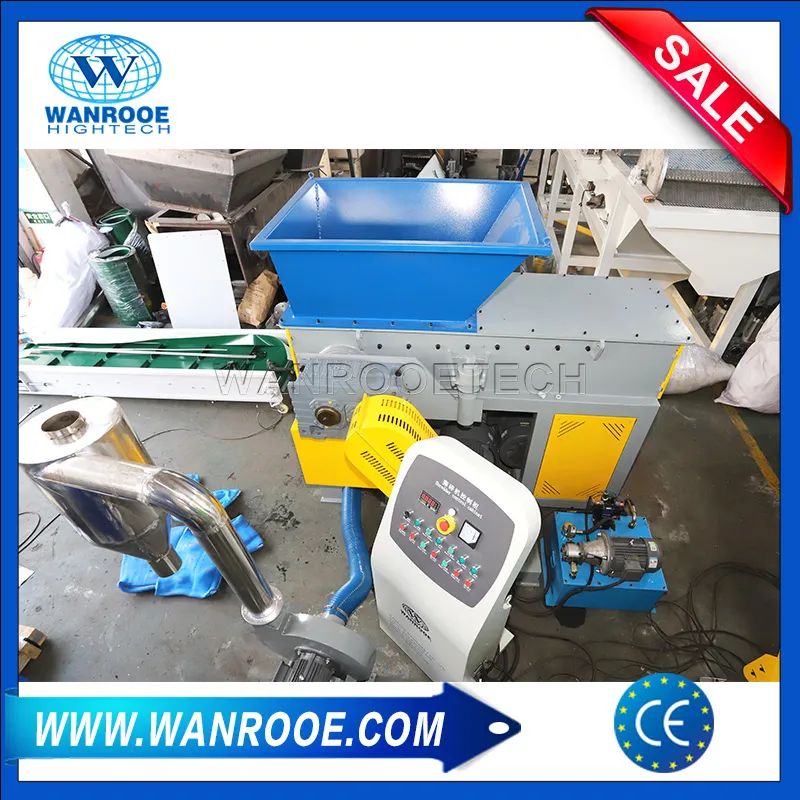

Unique hydraulic pushing system to accelerate shredding speed, especially for light materials.

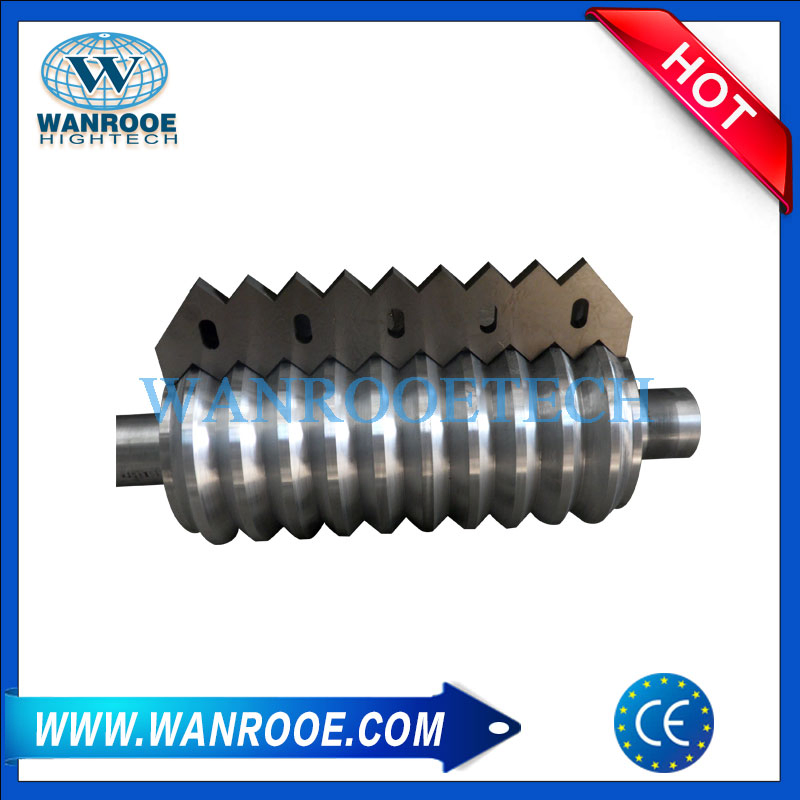

Dynamic blades with four cutting edges, allowing rotation by 90 degrees for reuse after wear.
Fixed blades with two cutting edges, rotatable by 180 degrees for extended life.
Quiet operation at low speeds for a better working environment.

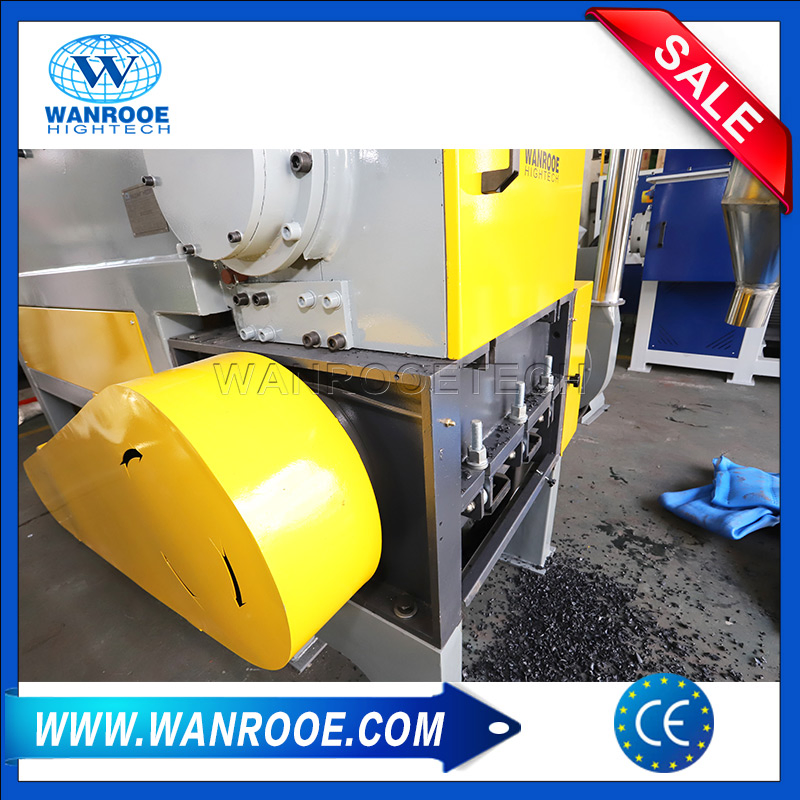

Adjustable screen perforation to meet specific customer requirements.
Customizable configurations for throughput volume and specific material processing.

Technical Parameters

Specification	PNDS-600C	PNDS-800C	PNDS-1000C
Main Motor Power (KW)	15-22	30-45	37-55
Crusher Motor Power (KW)	15	22	37
Shredding Diameter (mm)	320	400	400
Shredding Rotor Length (mm)	600	800	1000
Crusher Blades QTY	18+2x2	24+2x2	30+2x2
Shredder Blades QTY	32+2x2	38+2x2	58+2x2
End Scraps Size (mm)	3-8	3-8	3-8

Customer Feedback & Service

Our Comprehensive Service:

One-year guarantee for the entire machine.
24-hour technical support response.
Overseas engineering service available for installation and maintenance.
Long-term maintenance guidance and spare parts provided at optimal prices.
Professional operator training services.

Frequently Asked Questions

Q1: What materials can this machine shred?

A1: It is designed for various plastic materials including HDPE pipes, hard lumps, ABS, PVC, PET, as well as industrial waste like paper, cardboard, and wood.

Q2: How does the blade reuse system work?

A2: The dynamic blades have four cutting edges. When one edge is worn, you can rotate the blade 90 degrees to use a fresh edge, significantly extending the blade's lifespan.

Q3: Is the final scrap size adjustable?

A3: Yes, the screen perforation is adjustable based on your requirements, typically producing end plastic scraps between 3mm and 8mm.

Q4: Does the machine have protection against overloading?

A4: Yes, the integrated PLC control system includes an automatic overload protection feature and an auto-reverse switch to prevent damage.

Q5: What is the production capacity of the PNDS series?

A5: Depending on the specific model and material, the production capacity ranges from 100kg/H up to 3000kg/H.
