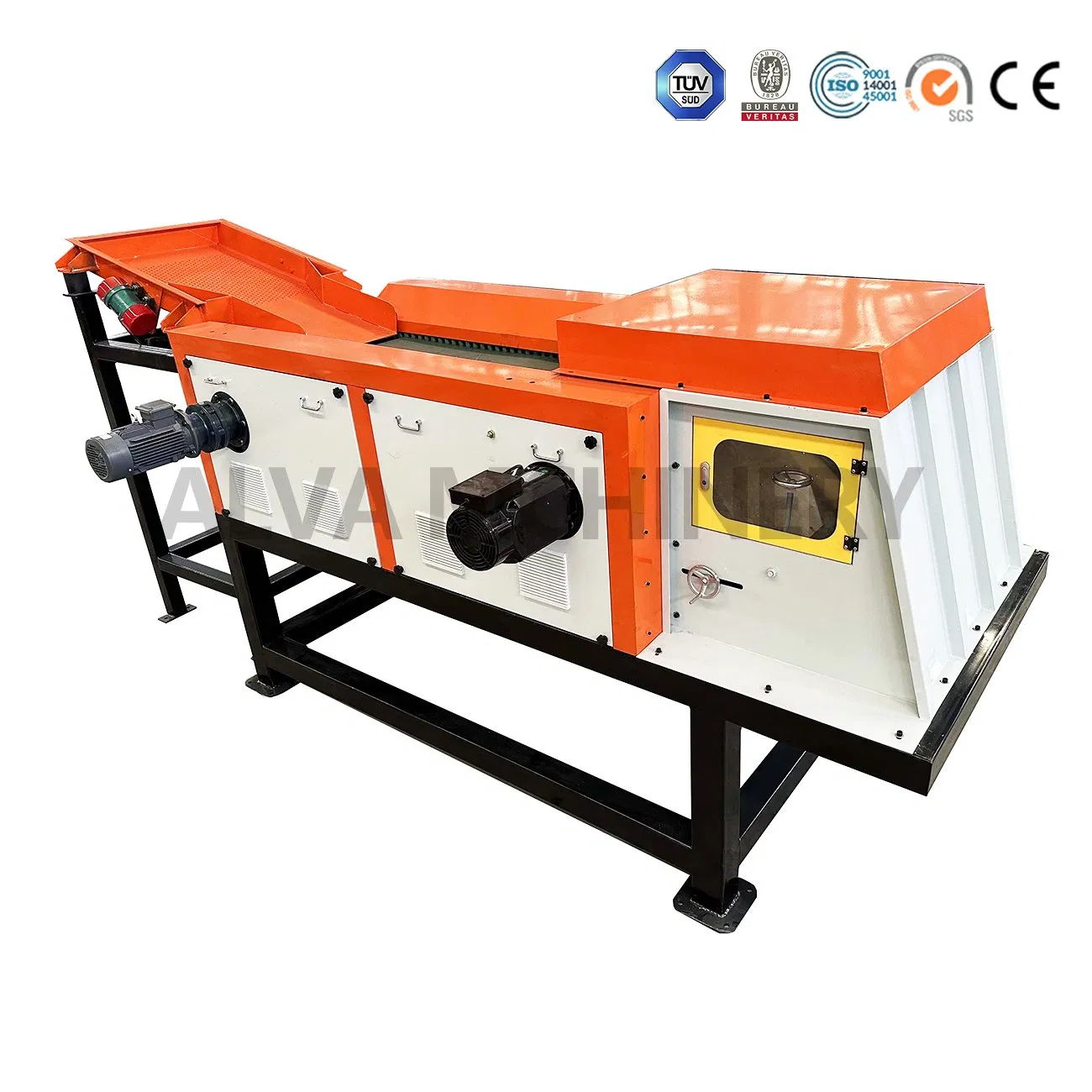

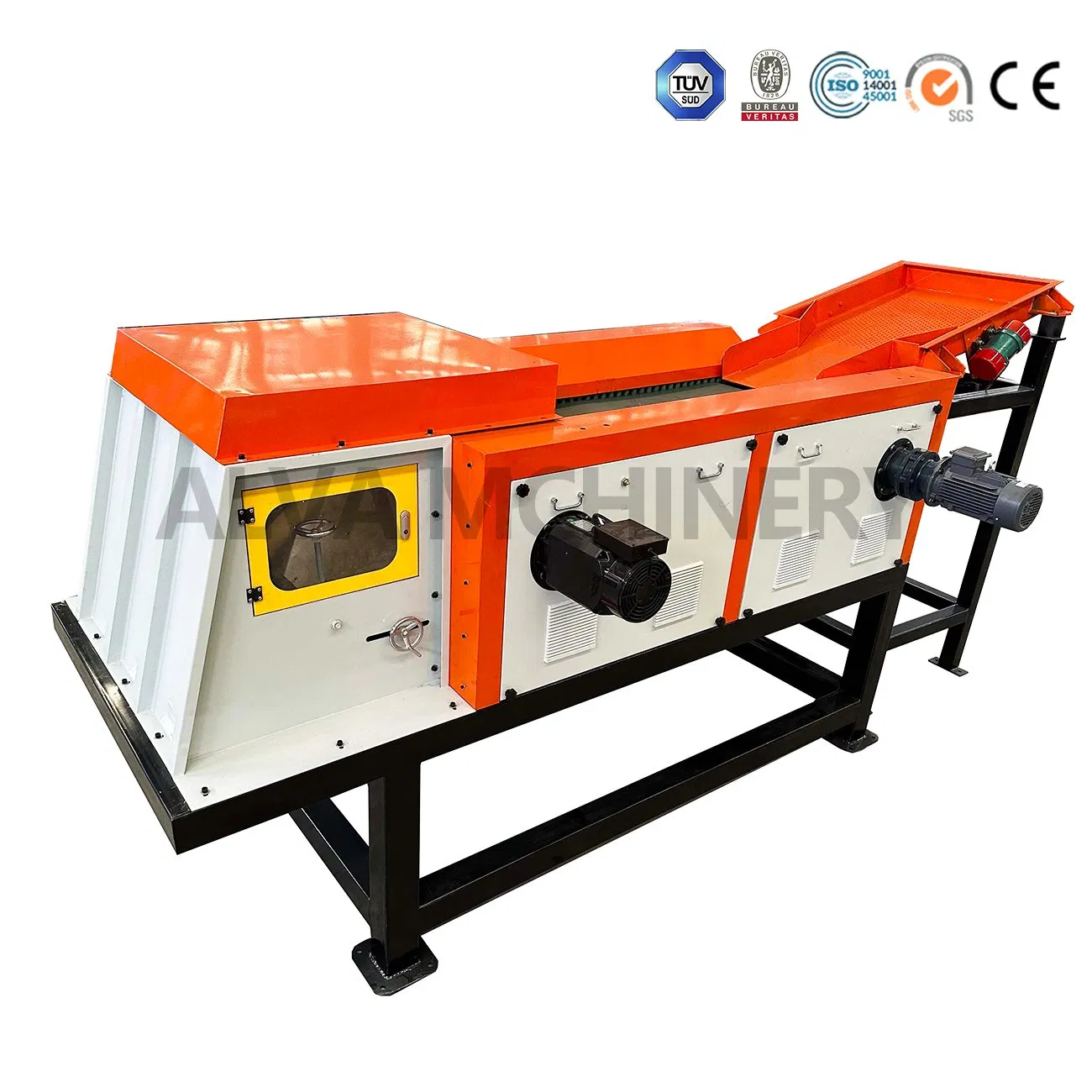

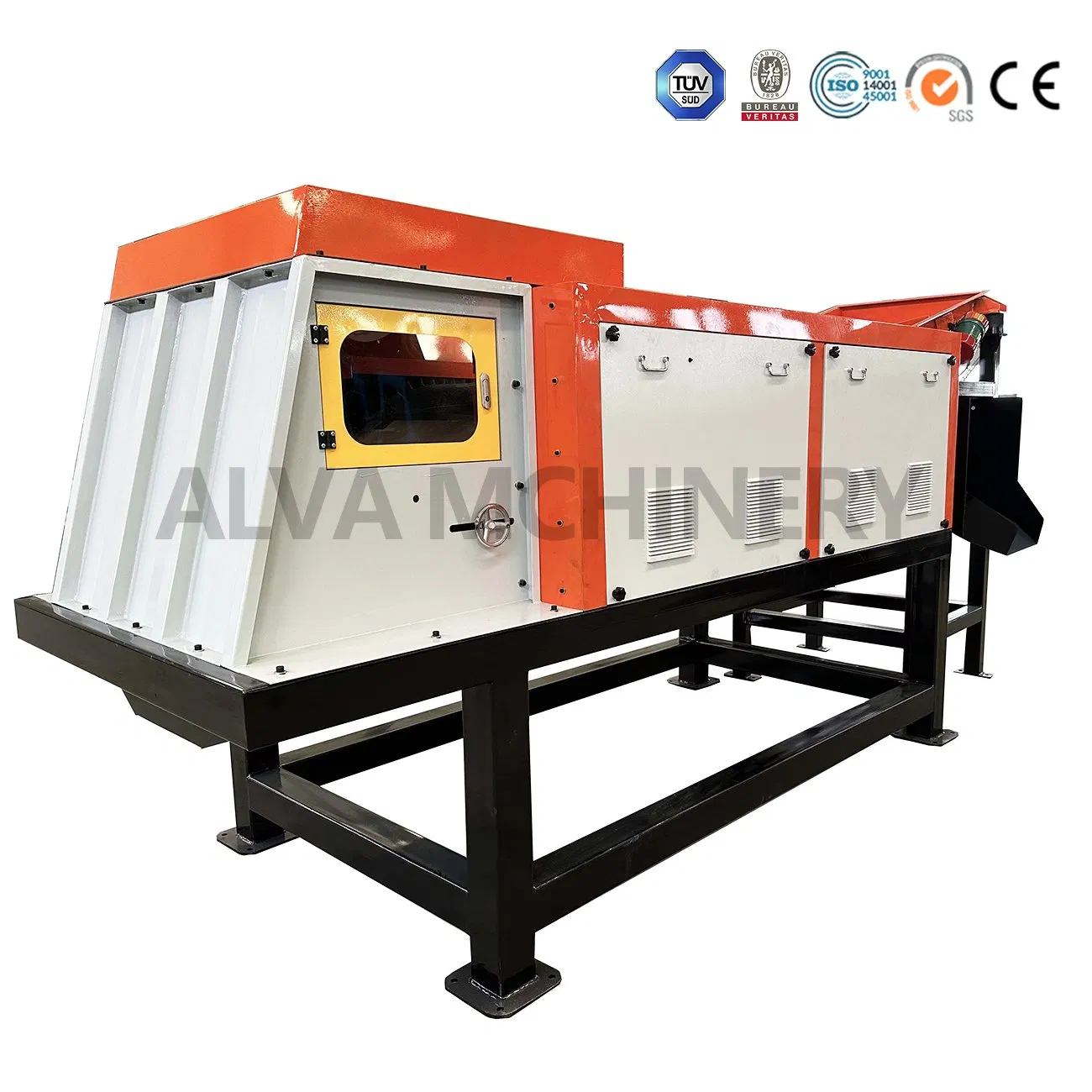

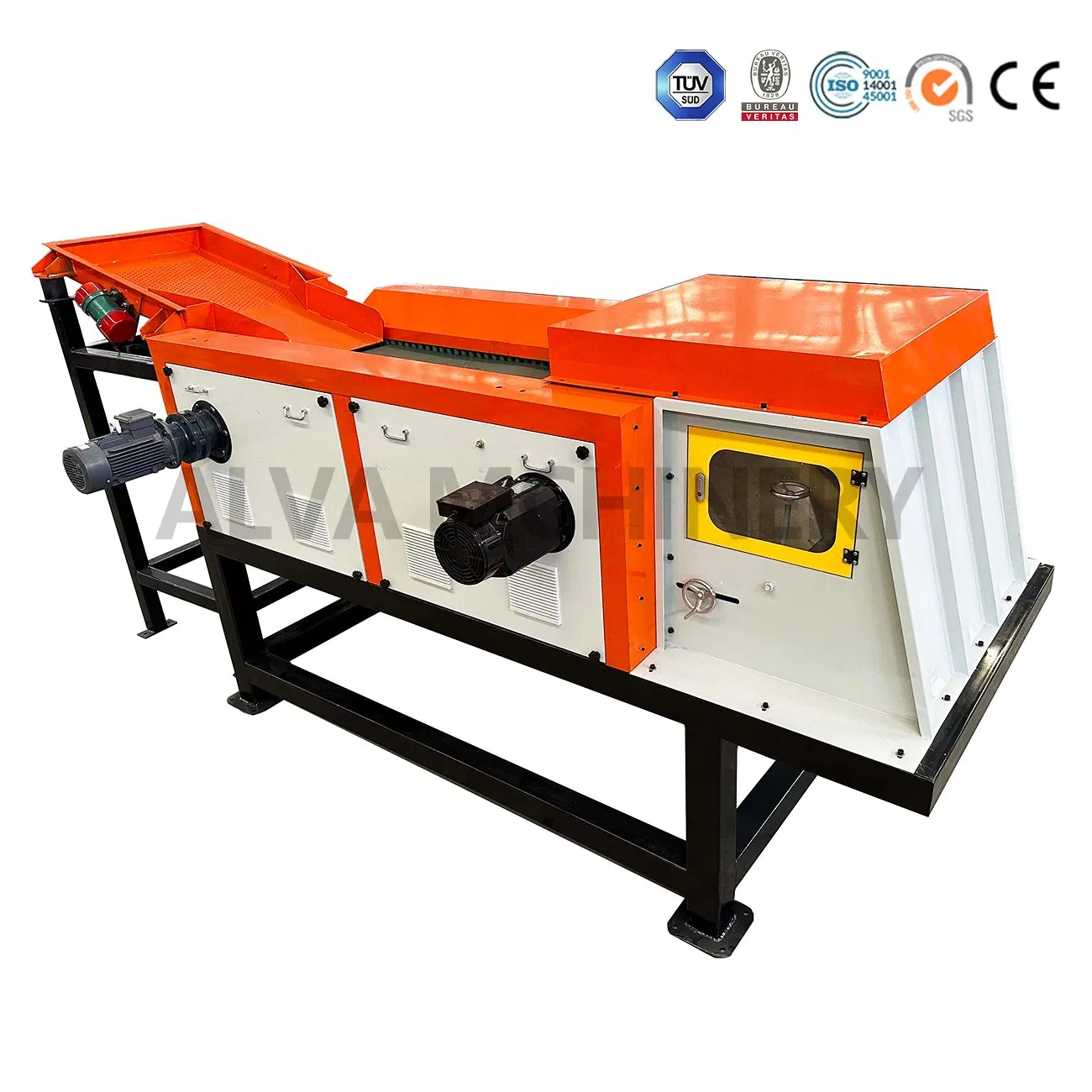

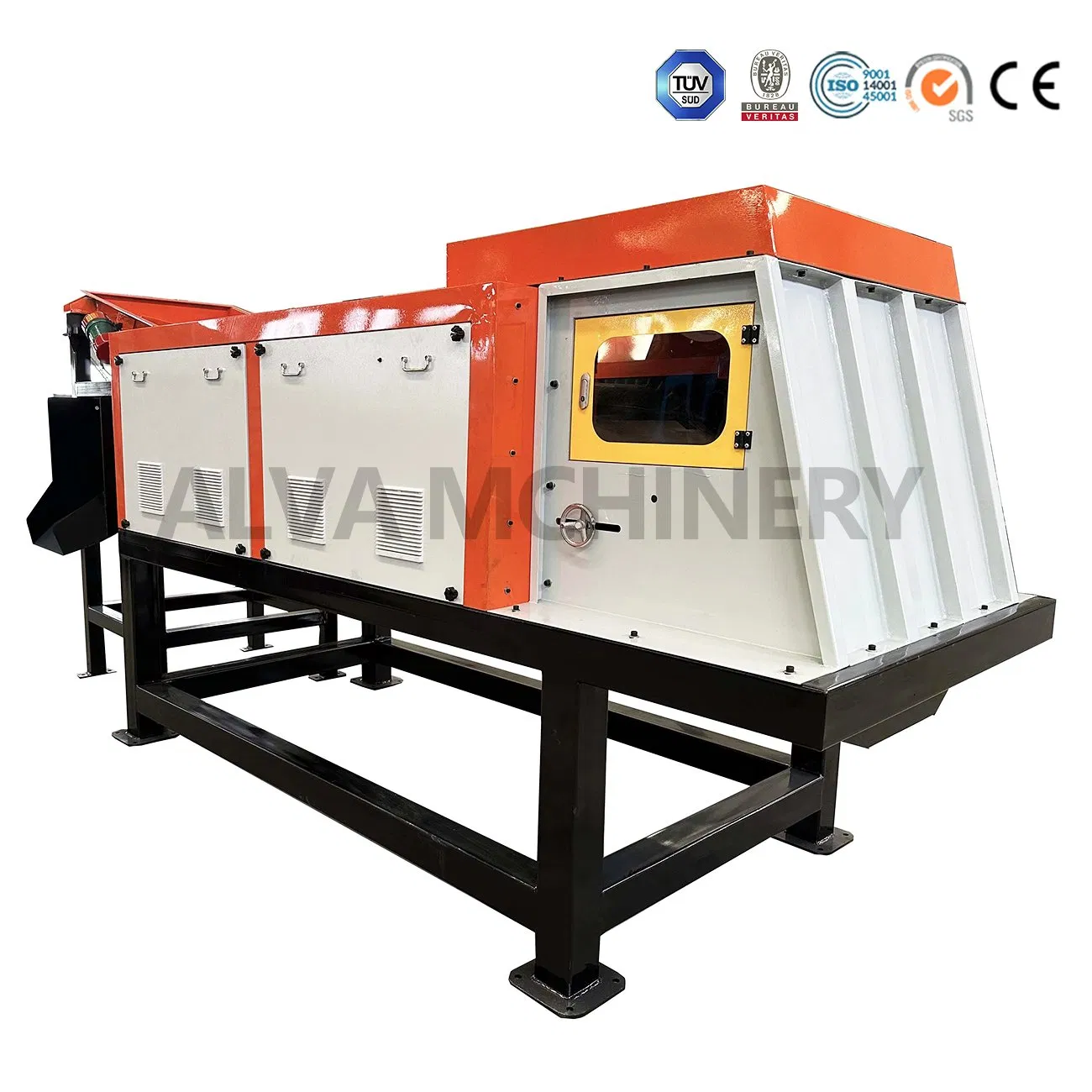

Plastic Shredder Mulcher Economical Crusher Pulverizer Machine Eddy Current Separator Machine

Customization:	Available
Crushing Degree:	No Need
Crushing Style:	No Need

Send Inquiry

Product Description

Basic Specifications

Model NO.

ALVA-ECS

Drive Type

Electric

Object

Metal

Type

Non-Ferrous Metal Sorting

Power

5.5+3.0+0.55*2(Kw)

Recovery Rate

98.5 - 99.5 %

Capacity

0-12ton/Hour

Bearing

NSK

Final Product

Non-Ferrous Metals

Function

Garbage Recycling Sorting

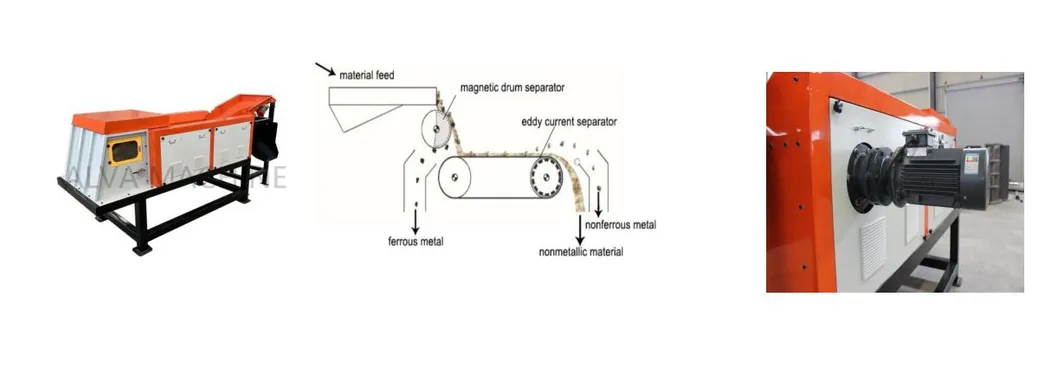

Product Advantages

Long Service Life: Equipped with imported bearings for high-stability operation.
Easy Operation: PLC programmable control with a one-button start system.
Magnetic Protection: Effective magnetic system protection prevents falling off during high-speed operation.
Intelligent Control: Touch control system and frequency conversion for reliable performance.
Low Noise & Vibration: Precision construction ensures extremely quiet operation.
Real-time Monitoring: Integrated inspection and alarm systems for all key components.

Technical Parameters

Model	Feed Width (mm)	Capacity/h	Power (kw)	Weight (kg)	Dimensions (LxWxH m)
TLFX(A)-5	300	6	5.9	730	4.6x1.1x1.2
TLFX(A)-8	600	20	5.9	1225	4.6x1.6x1.2
TLFX(A)-12	1000	30	7	1875	4.6x2.0x1.2
TLFX(A)-16	1400	40	10	2850	4.6x2.4x1.2
TLFX(A)-22	2000	55	13	4500	5.0x3.0x1.2

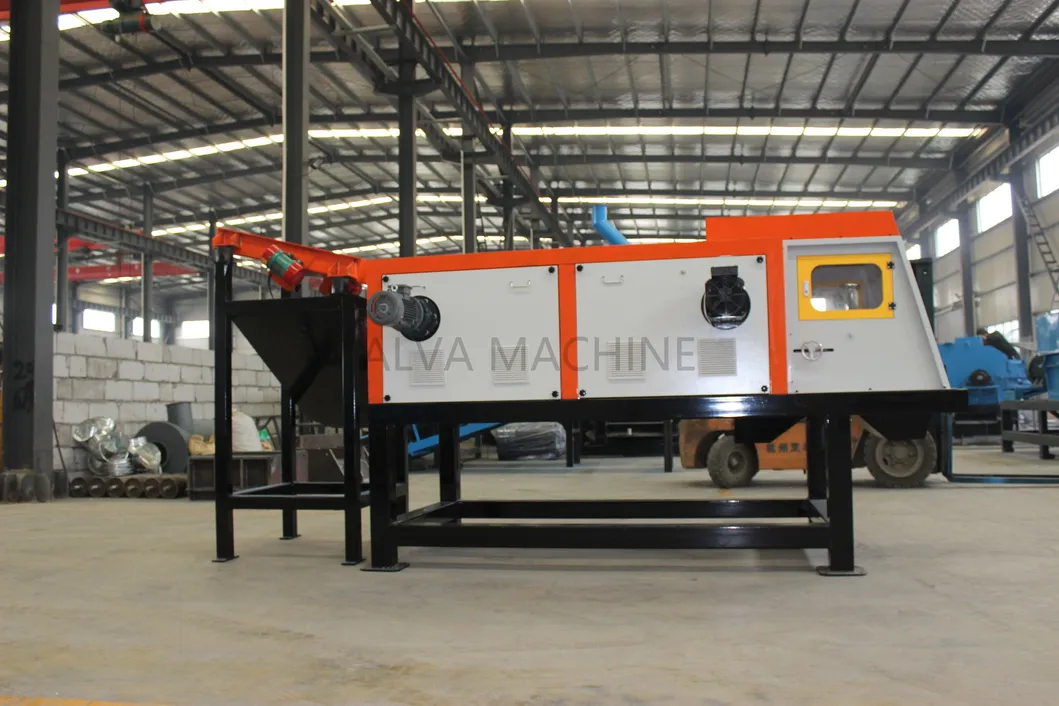

Application Fields & Scope

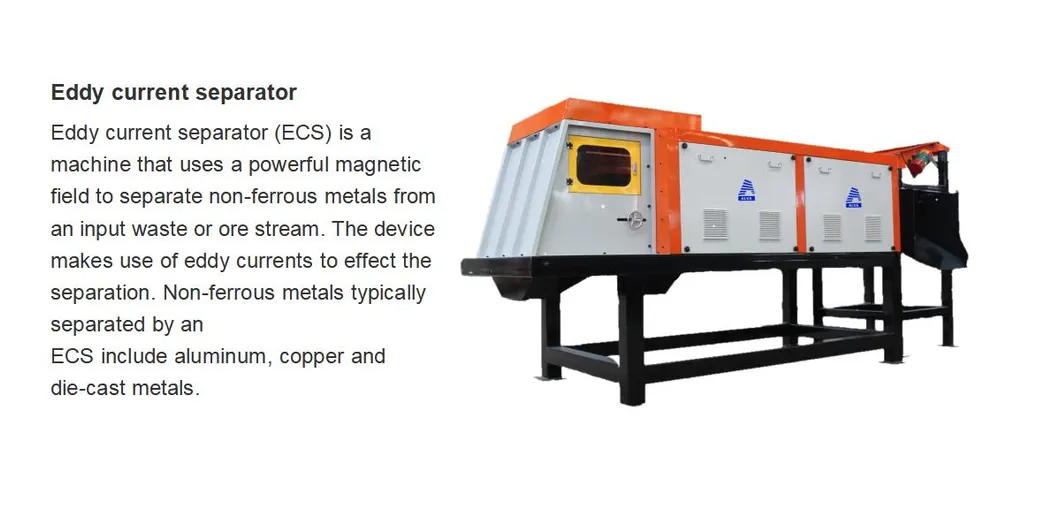

This equipment is primarily designed for sorting non-ferrous metals such as copper and aluminum from industrial and domestic waste. It is widely applied in:

Garbage disposal and recycling centers.
Dismantling and recycling of waste automobiles.
Recycling of waste electrical appliances (E-waste).
Material handling in non-ferrous metal processing industries.

Honor & Shipping Gallery

Frequently Asked Questions

Can you customize products for clients?

Yes, we can customize and produce crushing and sorting machinery according to customers' specific requirements or technical drawings.

How is the quality of your products ensured?

We can provide samples for quality inspection. Upon ordering, we guarantee the production quality matches the sample. We stand behind our equipment performance and quality standards.

How can we trust the factory?

We highly recommend visiting our factory in person to inspect the goods, verify the real-time operation of the equipment, and learn more about our manufacturing capabilities.

Why do prices fluctuate?

The final price depends primarily on the latest market costs of raw materials and specific configuration requirements.

What is the process for contract signing and production?

Once satisfied with the product and service, a contract is signed and a deposit is paid. We then begin production immediately, ensuring all accessories are complete and quality is strictly controlled.

How is delivery handled?

Once the product is ready and full payment is received, it will be delivered to your location. We also provide comprehensive technical guidance for installation and operation.
